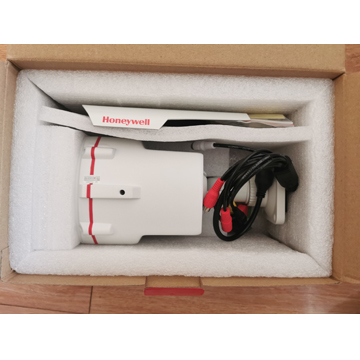

HICC-1600TVI Honeywell 720P High Definition H.264 IP WeatherProof IR Bullet Camera

Honeywell HICC-1600TVI combines world-class imaging and the latest IP camera technology with IP networking innovation, providing streaming images at full frame rate at 720P resolution. With advanced resolution projection, the HICC1600TVI delivers high quality images, making it an ideal solution for high-end surveillance applications. The 2.8 – 12mm vari-focal DC-IRIS lens allows the field of view to be adjusted to match the scene requirements. Equipped with 2 built-in high-power IR LED array lights with up to 40m IR visible range, the HICC-1600TVI guarantees superb image quality even at zero illumination environments. The HICC-1600TVI is equipped with built-in Power over Ethernet (IEEE 802.3af), which allows power to be supplied to the camera using the network, eliminating the need for a separate power supply and reducing the cost of installation. For additional installation flexibility, the HICC-1600TVI can also be powered with DC 12V and AC 24V. Market Opportunities Featuring 720P high resolution, H.264 compression format, built-in IR LED, PoE and ONVIF interface, the HICC-1600TVI optimizes surveillance performance for applications that require excellent image clarity and high-definition imaging at minimal bandwidth. With IP66 construction, the HICC-1600TVI is most suitable for advanced applications such as metro, banks, railways, financial institutes, government buildings, airports etc.

FEATURES

• 720P high resolution

• H.264, and MJPEG simultaneously (Dual-encoders)

• True Day/Night (with IR-cut filter)

• WDR, 3DNR, DC IRIS, and Anti-flicker

• IR beam up to 40m

• Comprehensive I/O ports: audio in, audio out, video out, Alarn In, Alarm Out, RJ45, SD card slot, RS485

• Built in Power over Ethernet (PoE); 100Base-T Ethernet

• Event triggering – camera tampering, Motion detection, Network loss, Alarm Input, Video loss

• Event trigger action – SNAP, Record video in SD card, send to FTP, send to Email, External output activation, voice alert, notify to CMS

• Edge storage – up to 32G

• Compatible with Honeywell Universal Surveillance (HUS) Platform and NVRs

• IP66

• ONVIF Profile S compliant

720P High Definition H.264 IP WeatherProof IR Bullet Camera
SPECIFICATIONS
Camera HICC-1600TVI
Image Device Sony 1/3” Exmor™ image sensor
Effective Pixels 1280 x 720 pixels
Lens 2.8 - 12mm 2M DC-IRIS
Iris DC Iris
ICR Mechanical, TDN
Min. Illumination IR LED ON: 0 Lux
IR LED OFF:
Color: 0.01 Lux @ F1.4 (AGC ON)
B/W: 0.001 Lux @ F1.4 (AGC ON)
IR LED 2 matrix IR LEDs. IR ON when below 3 Lux
IR Beam Distance 30 - 40m
IP Video
Video Compression H.264 and MJPEG simultaneously (Dual-encoders)
Video Profile H.264 baseline, main
Profile Setting Every video profile has Independent CBR/ VBR/ GOP/ Frame rate setting
Main Stream Resolution 720P (1280 x 720), Q1080P (960 x 544)
Second Stream Resolution D1 (720 x 576), VGA (640 x 480), Q720P (640 x 360), CIF (352 x 288), QVGA (320 x 240), QCIF
(176 x 144)
Frame Rate 1fps - 25/30fps
Bit Rate 16 - 8000kbps
Electronic Shutter Auto mode: 1/25 - 1/30000 sec
Manual mode: 1/25 - 1/10000 sec
Iris Exposure Control Auto mode / Manual mode
AGC LOW / MID-LOW / MID / MID-HIGH / HIGH
WDR OFF / LOW / MID / HIGH
3-DNR OFF / LOW / MID / HIGH
Color Mode Normal / Natural / Bright
Image Setting AE, AWB; 3D Noise reduction; WDR; Color, brightness, sharpness, contrast, Hue; Mirror/Flip;
Privacy Masks; Text, time and date overlay
Streaming Simultaneously multi-profile streaming; Streaming over UDP, TCP, HTTP, or HTTPS; M-JPEG
streaming over HTTP (server push); Controllable frame rate and bandwidth; Constant and
variable bit rate (MPEG4 / H.264)
On Screen Display Text, time and date overlay
Audio
Audio Encoder RTSP: G.711 64kbps
Audio Streaming One-way or two-way
Audio Input External audio in
Audio Output Speaker Out
Network
Supported Protocols IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour,
UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, ICMP, SNMP
Security Password protection, HTTPS encrypted data transmission, user access log
Users 4 simultaneous unicast users
Ethernet 10/100M auto negotiation
System Integration
Supported Interface ONVIF Profile S
Event Detection Alarm in, motion detection, Network loss detection, camera tampering, Video loss
Camera HICC-1600TVI
Motion Detection 1-zone video motion detection with Sensitivity options
Privacy Mask 4 Zones
Camera Tampering Camera Cover or Mask
Events Action SNAP, Record video in SD card, send to FTP, send to Email, External output activation, voice
alert, notify to CMS
General
OS Windows XP or later
Browser IE 8.0 or later
Supported Platform Honeywell Universal Surveillance (HUS) and NVRs
Power Supply 12V DC or 24V AC ±10% external power adapter
PoE IEEE 802.3af
Power consumption Max 10W
Connectors RJ-45 10Base-T/100Base-TX; 1 power jack; 2 alarm input and 1 output; Audio out; Audio
input; Video out; SD card, and RS485
Edge Storage 32G
Operating Temperature -20°C to 55°C
Operating Humidity 0% - 90% (non-condensing)
Dimensions 241 (L) x 121 (W) x 134 (H) mm
Weight 1276g
Protection IP66 weather-proof
Certificate CE, FCC, UL
Note: Honeywell reserves the right, without notification, to make changes in product design or specifications
ORDERING
HICC-1600TVI 720P IP Weather-proof IR Box Camera, 30 – 40m IR distance, 2.8 - 12mm, H.264, TDN,
