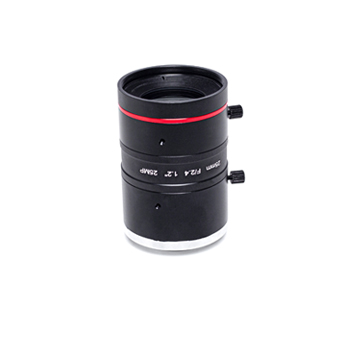

12FA2524-25MP Phenix 25MP 1.2" Low-distortion Industrial Lens

Brand:Phenix

Model:12FA2524-25MP

Detail

12FA2524-25MP Phenix 25MP 1.2" Low-distortion Industrial Lens

Compatible with the latest 1.2" camera

Backward compatible with 1" and 1.1" camera

25MP ultra high resolution perfectly fits the requirement of high-end machine vision


型号

Model

12FA1224-25MP

12FA1624-25MP

12FA2524-25MP

12FA3524-25MP

12FA5024-25MP

焦距(mm)

Focal Length

12mm

16mm

25mm

35mm

50mm

像面尺寸(φ)

Image Size

φ19.3

φ19.3

φ19.3

φ19.3

φ19.3

像素尺寸(μm)

Pixel Size

2.74μm

2.74μm

2.74μm

2.74μm

2.74μm

光圈范围(F数)

F-Number

F2.4-16

F2.4-16

F2.4-16

F2.4-16

F2.4-16

工作距离(mm)

Working Distance

100mm-∞

100mm-∞

150mm-∞

150mm-∞

250mm-∞

控制

Control

光圈

Iris

手动 Manual

手动 Manual

手动 Manual

手动 Manual

手动 Manual

聚焦

Focus

手动 Manual

手动 Manual

手动 Manual

手动 Manual

手动 Manual

最近物距视场范围(mm)

Minimum Object Distance

FOV

-149.68 x -129.48

-105.17 x -90.98

-88.89 x -76.71

-63.65 x -55.06

-74.71 x -64.63

视场角(°)

Angle of View

1.2"

62.33x55.33x76.12

48.83x42.86x61.36

31.42x27.32x41.19

22.51x19.53x29.33

15.66x13.57x20.50

1.1"

54.5x54.5x71.6

42.12x42.12x57.24

27.58x27.58x38.32

19.1x19.1x26.76

13.28x13.28x18.76

1.0"

56.2x43.6x71.08

43.46x33.24x53.04

28.52x21.58x35.3

19.76x14.9x24.54

13.76x10.34x17.22

分辨率

Resolution

25MP

25MP

25MP

25MP

25MP

TV畸变

(最近物距至无穷远最大畸变值)

Max TV Distortion

0.870

0.073

-0.106

-0.072

0.062

基准工作距离TV畸变

(200mm-400mm)%

Optimal TV Distortion

0.390

0.070

-0.040

0.015

0.011

接口

Mount

C

C

C

C

C

滤镜尺寸(mm)

Filter Size


M40.5*0.5

M37*0.5

M40.5*0.5

M40.5*0.5

镜头尺寸(mm)

Dimension

φ50*66.96

φ42.5*59.76

φ40*58.44

φ42*59.32

φ42*61.16

重量(g)

Weight

218.5

189.5

161.7

174

179

温度范围(°)

Operating Temperature

-10~+50℃

-10~+50℃

-10~+50℃

-10~+50℃

-10~+50℃
