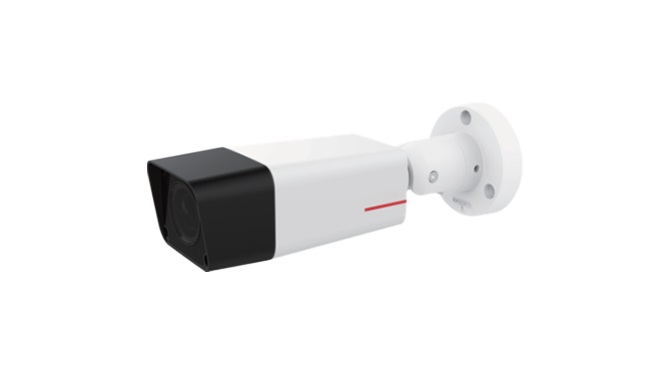

IPC6256-VRZ 5MP Network IR Bullet Camera

Features
 1/2.7" 5.0 megapixel progressive scan CMOS
 A maximum of 30fps stream at 5.0 megapixel with H.265 real-time encoding
 H.265, H.264 and MJPEG video compression standard
 Wide dynamic range up to 120dB
 Defogging
 Built-in motorized zoom and focus lens
 Max. 50 meters IR coverage
 Super error concealment (SEC)
 Streams encrypted through AES
 Ultra wide operating voltage range, ultra wide operating temperature range
 DC and POE power supplies

Model Item IPC6256-VRZ
Camera
Image sensor 1/2.7" 5.0 megapixel progressive scan CMOS
Effective pixels 2560(H)×1920(V)
Min. Illumination
Color: 0.005lux (F1.2, AGC ON)
B/W : 0.001lux (F1.2, AGC ON), 0 lux with IR on
Day/Night mode Auto/Color/Monochrome
Wide Dynamic  Range    120dB
White balance Auto/Auto-track/Manual  Highlight
suppression  Supported
Defog Automatic/Manual  Digital noise
reduction  Self-adaptive to 2D or 3D DNR
Lens
Focal Length 2.8-12mm
Infrared radiation  distance   50m
Function
Video compression H.265 / H.264 / MJPEG
Max. resolution 2560(H)×1920(V)
Frame rate
60Hz:30fps(2560×1920，2560×1440，2048×1536、1920×1080)
50Hz:25fps(2560×1920，2560×1440，2048×1536、1920×1080)
Multiple streaming Three streams
PU access protocol ONVIF Profile S/G/T,GB/T 28181 and HUAWEI SDK
Network protocol
TCP，UDP，IPv4，IPv6，DHCP，DHCPv6，DNS，ICMP，ICMPv6，
IGMP，HTTPS，FTP，SFTP，RTP，RTSP，RTCP，SIP，ARP，SSL，
NTP，SNMP，802.1x，QoS，DDNS，SMTP，SSH，TLS
Security mode  User name and password authentication, 802.1x , HTTPS digital  certificate
Stream encryption  Stream encryption using the AES256 encryption algorithm, and  digital watermark
Alarm action
Alarm source: moving detection alarm, tampering
detection/boolean value input value/intelligent analysis alarm
Linked object: Boolean value output/SD card recording/SD card
snapshot/Pre-recording
Intelligent analytics
Behavior analysis
Fast-moving object detection, abandoned object detection,
removed object detection, cross line detection, intrusion detection,
area enter/exit detection, loitering detection
Exception  Detections
Audio existence detection, detection of sudden sound increase or
decrease, scene change detection and defocus detection
Interface
Ethernet interface 1x RJ45 10/100 Base-T self-adaptive Ethernet port
Alarm interface 1-channel alarm input and 1-channel alarm output
Audio 1-channel audio input and 1-channel audio output
Memory card slot
1x MicroSD/SDHC/SDXC slot supporting memory card up to 128 GB
General Parameter
Power supply DC12V ± 25%, PoE(IEEE 802.3at)
Power  consumption  Typical 3 W, maximum 15W
Operating  temperature  -30℃~60℃（IR off）  -30℃~40℃（IR on）
Operating   humidity  5% to 95% (non-condensing)
Surge suppression 6kV surge voltage
protection class IP67
Vandal–proof class IK10(except the window)
Weight Net weight: 1.4 kg, gross weight: 2 kg
Dimensions
Equipment: 272.4×84.1×66.0 mm;

packaging: 400.0×200.0×136.0  mm
