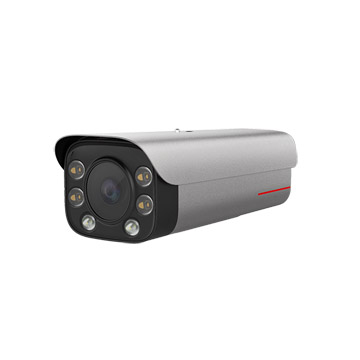

X2221-10-FL Huawei 4T 2MP Face Capture Bullet Camera

Brand:huawei holosens

Model:X2221-10-FL

lens:10–55 mm


Detail
X2221-10-FL Huawei4T 2MP Face Capture Bullet Camera
4 TOPS computing power
Supports heat map, 1 + N, behavior analysis, and face and body detection
Supports backlight adaptation, overcast adaptation, and speed adaptation
1/1.8" CMOS sensor
Online loading and upgrade of algorithms
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
CPU Hi3559A V100
Computing power 4 TOPS
Memory DDR4 2.0 GB
Flash type SPI NAND Flash 512.0 MB
Max resolution 2-megapixel: 1920 (H) x 1080 (V)
Sensor size 1/1.8"
Min illumination Color: 0.0004 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0001 lux (F1.2, AGC ON, 1/30s shutter speed)
Focal length 10–55 mm
Angle of view Horizontal: 8.7° (T) to 37.8° (W); vertical: 5.0° (T) to 21.4° (W)
Illumination distance 20 m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map Supported
1 + N Supported
Behavior analysis Fast movement,Removed object,Tripwire crossing,Intrusion,Area entry or exit,Loitering
Face Face detection,Face image enhancement,Facial attribute recognition
Person Person detection,Personal attribute recognition
Audio port Supported
RS-485 port Supported
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 2
Ethernet port bandwidth Two RJ45 10M/100M/1000M adaptive Ethernet ports
Power type 24 V AC
Power consumption Maximum: 32 W; typical: 8.5 W
Operating temperature –40°C to +60°C (illuminator disabled) –40°C to +40°C (illuminator enabled)
Operating humidity 5% to 95% (non-condensing)
IP rating IP67
IK rating IK10
Focal length 10–55 mm
Angle of view Horizontal: 8.7° (T) to 37.8° (W); vertical: 5.0° (T) to 21.4° (W)
Built-in white light illuminator Supported
Illumination distance 20 m
Power type 24 V AC
Power consumption Maximum: 32 W; typical: 8.5 W
Operating temperature –40°C to +60°C (illuminator disabled) –40°C to +40°C (illuminator enabled)
Operating humidity 5% to 95% (non-condensing)
Self-cleaning viewing window Supported
Self-cleaning viewing window specification 1. AF coating process; hardness: ≥ 6 HV 2. At least 88% transmittance@400–900 nm 3. Contact angle of the AF coating: > 110°
Surge protection 4 kV
IP rating IP67
IK rating IK10
Net weight 2.36 kg
Gross weight 3.3 kg
Device dimensions 292.5 mm x 129 mm x 106 mm
Package dimensions 146 mm x 533 mm x 259 mm
