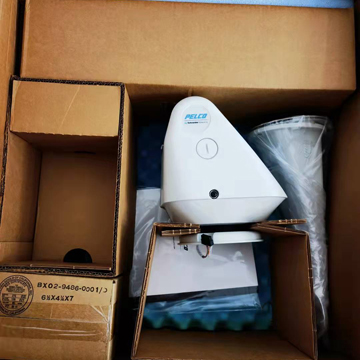

ES4136-2N-X Pelco ES40/ES41 Series ESPRIT® SE STANDARD AND PRESSURIZED MODELS

PA02-0113-5008（ES4136 mian board)

Product Features
• Receiver, Pan/Tilt, and Enclosure with Integrated Optics Package (IOP) or Pressurized Integrated Optics Cartridge (IOC), NTSC/PAL
• Day/Night, 540 TVL, Autofocus, 128X Wide Dynamic Range (WDR),Motion Detection, Image Enhancement, and Electronic Image Stabilization
• Integrated Window Wiper with Configurable Delay and Shut-Off (ES41þ Models)
• Preset Positioning Accuracy ±0.1, Variable Speed Pan: 0.1° to 100°/Sec with Proportional Pan
• Window Blanking, Multishaped
• Internal Scheduling Clock
• On-Screen Compass, Tilt, and Zoom Display
• Autotracking
• Tilt Range of +36° to –85° from Horizontal
• Password Protection

• Deterrent Surveillance
• Integral Multiprotocol (Coaxitron®, RS-422 Pelco D and Pelco P Protocols)  Receiver/Driver
• Digital Position and Zoom Control and Feedback Using Pelco D Protocol
• Integral Camera Enclosure
• Operational in 145 kph (90 mph) Winds, Can Withstand Wind Velocity up to 209 kph (130 mph)
• Pan Preset Speed of 100°/Sec in 80 kph (50 mph) Winds and 50°/Sec in 145 kph (90 mph) Winds
• Variable Scan Speeds (1° to 40°/Sec)
• Translator Boards for Selected Competitive Protocols
• Easy to Install: Quick and Simple Electrical Connections
• 24 VAC or 120/230 VAC Selectable
• Full Continuous-Duty Warranty
• 850 nm and 950 nm Active IR Illumination Focus Algorithms
• 256 Configurable Presets with Labels
• Auto, Frame, and Random Scan
• Configurable Power-Up Mode, Park, Manual Limit Stops (Pan), and Scan Limit Stops (Pan)
• Patterns: Up to 8, On-Screen, User-Defined Configurable Patterns; Includes Pan, Tilt, Zoom, and Preset Functions
• Proportional Pan/Tilt: Continually Decreases Pan/Tilt Speeds in Proportion to Depth of Zoom
• 8 Zones (configurable in size) Can Be Labeled with up to 20 Characters Each
• Window Blanking: Up to 8, Four-Sided, User-Defined Shapes
• 10-Inch Integrated Enclosure with Pre-Assembled IOP Camera
• Sun Shroud, Heater/Window Defroster, and Insulation All Standard
• 1 Auxiliary Output
• Electronic Image Stabilization
• Image Enhancement
• Multilingual Menus (English, Spanish, Portuguese, Italian, French, German, Russian, Polish, Turkish, Czech, and Asian language package: Chinese, Japanese, Korean)
• Software Update and Setup
• Configurable Locations of Labels and On-Screen Displays
• Configurable Zoom Speeds
• Low Lux Noise Reduction (reduces noise in low light)
• Autosensing Protocol (Coaxitron®, RS-422 Pelco P and Pelco D, Sensormatic®, Vicon®); Accepts Other Control Protocols with Optional Translator Card PRESSURIZED INTEGRATED OPTICS CARTRIDGE (IOC)
• Pressurized to 10 psig, Nominal (Sea Level, 21°C [70°F])
• Internal Sensors for Temperature, Dew Point, and Pressure
• On-Screen Alert for High and Low Temperature, High and Low Pressure, and High Humidity
• 4 Alert On-Screen Display Modes
• 4 Acknowledge Modes
• Pressurized Relief Valve
• Meets IP67 Standards
REPLACEMENT INTEGRATED OPTICS PACKAGE (IOP)
The following IOP modules are replacement components only; they are not
interchangeable.
ESIOP36 Esprit high resolution day/night camera and
lens module, 36X, NTSC format
ESIOP36-X Same as ESIOP36 except PAL format
REPLACEMENT PRESSURIZED INTEGRATED OPTICS
CARTRIDGE (IOC)
The following IOC models are replacement components only; they are not
interchangeable.
IOC-36 Esprit high resolution day/night camera and
lens module, 36X, NTSC format
IOC-36-X Same as IOC-36 except PAL format
OPTIONAL ACCESSORIES
ES-REPLBLADE-2 Package of 2 window wiper replacement
blades
ES-REPLBLADE-10 Package of 10 window wiper replacement
blades
IPS-RDPE-2 Remote data port. 24 VAC, wall/pole mount
video/data breakout box. Allows ground-level
control/configuration when used with the
IPS-CABLE.
IPS-CABLE Kit consisting of the remote monitor interface cable and necessary software for use with a PC TXB Series Translator boards for AD™ Manchester, Hernis, Bosch® (Philips, Burle), Sensormatic®, TASS, Vicon™, and NTCIP protocols OPTIONAL MOUNTS AND ADAPTERS
ECM100 Corner mount adapter for use with EWM wall
mount
EPM Pole mount adapter for use with EWM wall
mount
EA4348 EWM-to-Legacy adapter; use with PP4348
parapet mount
PM2000/PM2010 Pedestal mount with cable feedthrough.
For use with Esprit systems with EPP2
pedestal adapter plate.
RECOMMENDED POWER SUPPLIES
MCS Series Multiple 24 VAC camera power supply, indoor
WCS Series Single/multiple 24 VAC camera power supply,
outdoor
MODELS
Enclosure Type Signal
Format
Pedestal Mount* Wall Mount†
24 VAC 120/230 VAC 24 VAC 120/230 VAC
Standard with IOP NTSC
PAL
ES4036-2N
ES4036-2N-X
ES4036-5N
ES4036-5N-X
ES4036-2W
ES4036-2W-X
ES4036-5W
ES4036-5W-X
With Wiper with IOP NTSC
PAL
ES4136-2N
ES4136-2N-X
ES4136-5N
ES4136-5N-X
ES4136-2W
ES4136-2W-X
ES4136-5W
ES4136-5W-X
Standard with IOC NTSC
PAL
ES40P36-2N
ES40P36-2N-X
ES40P36-5N
ES40P36-5N-X
ES40P36-2W
ES40P36-2W-X
ES40P36-5W
ES40P36-5W-X
With Wiper with IOC NTSC
PAL
ES41P36-2N
ES41P36-2N-X
ES41P36-5N
ES41P36-5N-X
ES41P36-2W
ES41P36-2W-X
ES41P36-5W
ES41P36-5W-X
