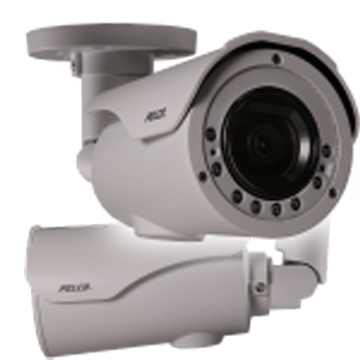

IBE238-1ER IBE539-IER Pelco IBE Environmental IR Bullet Camera
Product Features
• SureVision Technology (Advanced Low-Light & WDR Performance Simultaneously, Anti-Bloom Technology, 3D Noise Filtering, and Enhanced Tone Mapping)
• H.265, H.264, and MJPEG Video Encoding with Pelco Smart Compression
• Up to 4 K Resolution
• Robust Electronic Image Stabilization
• Up to 120 Frames per Second (fps) at 1080p on Select Models
• Up to 130 dB Wide Dynamic Range
• Power Redundancy Between PoE+ to 12 VDC / 24 VAC
• IP66, IP67, IP68, IP69K, Type 4X
• IK10 (20 Joules) Rated Vandal Resistant
• Built-in Pelco Enhanced Analytics Suite & Capable of Advanced Deep Learning Analytics Available Separately
• Adaptive IR Illumination 850 nm up to 50 Meters  Support for Local Storage with Micro SD Slot for SDHC/SDXC Card
• Compatible with Pelco and Third-Party Video Systems
• ONVIF Profile S, Profile G, and Profile T Conformant
• Full 3-Year Warranty and Support Environmental/Vandal-Resistant
• Camera can mount directly to the wall.
• Meets IP66, IP67, IP68, IP69K
• Meets IK10 (20J)
• Meets Type 4X
• Aluminum Construction
• RAL 9003
• IEEE802.3at PoE+ Class 4, 24 VAC or 12 VDC
• NEMA TS-2 para 2.2.7 - 2.2.9
CAMERA
Imaging Device 1/2.8-inch or 1/1.8-inch
Imager Type CMOS
Imager Readout Progressive scan
Highest Resolution
4 K 3840 x 2160
5 MP 2592 x 1944
3 MP 2048 x 1536
2 MP 1920 x 1080
Signal-to-Noise Ratio >60 dB
Electronic Shutter Range 1/10,000 sec to 1sec
Wide Dynamic Range Up to 130 dB (2 MP and 3 MP models),
Up to 120 dB (5 MP and 4 K models)
White Balance Range: 2,500° to 10,000°K; Selectable Auto/Manual/ATW
Day/Night Capabilities Mechanical IR cut filter (ON/OFF/AUTO), with different set points on lux Adaptive IR Illumination 850nm wavelength, maximum distance of up to 50 meters (164 feet)
3D Noise Reduction Yes (ON / OFF selectable)
LENS
Lens Type Built-in; varifocal
Focal Length f/1.3, 2.8 ~ 8 mm,
f/1.5, 8 ~ 20 mm,
f/1.5, 4 ~ 9 mm,
f/1.6, 9 ~ 20 mm
Focus Autofocus, motorized
Zoom Remote motorized
Auto Iris Type P-Iris
AUDIO
Streaming Bidirectional: full or half duplex
Input Line level, 3K ohm differential with/1Vp-p
maximum signal
Output Line level, 600 ohm differential with/1Vp-p
Encoding G.711-Alaw/G711-Ulaw
GENERAL
Pan/Tilt Adjustment Manual
Pan 0° ~ 360°
Tilt 7.5° ~ -90°
Rotation 0° ~ 360°
Construction Aluminum with polycarbonate window
Finish White, RAL 9003
Weight Unit Shipping
3.5 lb (1.59 kg) 4.3 lb (1.95 kg)
EPA 51.2 in
ENVIRONMENTAL
Operating Temperature –50° to 60°C (–58° to 140°F)

4 Hours Maximum Operating
Temperature 65°C (149°F)
Start-up Temperature –40°C (–40°F)
Storage Temperature –40° to 60°C (–40° to 140°F)
Operating Humidity 10 to 100%, RH condensing
Storage Humidity 20 to 80%, RH noncondensing
Impact Resistance IK10 (20 J)
Ingress Protection IP66, IP67, IP68, IP69K, Type 4X
Shock and Vibration
Resistance Tested in accordance to EN 50155 (EN 61373,Category 1, Class B); IEC/EN 60068:2-6 and 2-27
RECOMMENDED MOUNTS
IBP3-PLMT Pole mount directly
IBP3-PLMTwith IBP3BBAP-ES Pole mount with Environmental, Surface
Mount Junction Box
IBP3BBAP-ES Wall mount
IBP3BBAP-EI In-ceiling mount
POWER SUPPLIES
WCS Series Outdoor, 24 VAC power supply
POE130-XT Single-port PoE Gigabit extender powered by
POE190-BT injector
POE130-AT (US or EU) Single-port PoE+ midspan with power cord
POE430-AT (US or EU) 4-port, 30W per port PoEmidspan with power cord
POE1236-AT (US or EU) 12-port, 36W PoE midspan
POE2436-AT (US or EU) 24-port, 36W PoE midspan

MODELS
Resolution ModelNumber Lens Description
2MP IBE238-1ER 2.8 ~ 8 mm Sarix Enhanced Environmental Bullet
3MP IBE332-1ER 8 ~ 20 mm Sarix Enhanced Environmental Bullet
3MP IBE338-1ER 2.8 ~ 8 mm Sarix Enhanced Environmental Bullet
5MP IBE539-1ER 4 ~ 9 mm Sarix Enhanced Environmental Bullet
4K IBE839-1ER 4 ~ 9 mm Sarix Enhanced Environmental Bullet 4K
4K IBE832-1ER 9 ~ 20 mm Sarix Enhanced Environmental Bullet 4K
