EVO-180-WID-P Pelco Evolution 180° Indoor Camera

Brand:Pelco

Model:EVO-180-WID-P

Detail
EVO-180-WID-P Pelco Evolution 180° Indoor Camera
The next step in panoramic situational awareness
12MP Sensor with 6MP Dewarped Panoramic+ View
Seamless panoramic surveillance with no blind spots
12MP high-resolution sensor
True Day / Night with IR cut filter
Up to 30 fps at 2.0 MP
PoE or 12 VDC powered
Advanced features
Built-in 3D dewarped panoramic video Panoramic+ Views
Oncam Angle Compensation Technology (ACT)
Scene Offset Angle Control
Configurable privacy regions
Polygonal video motion detection regions
Local alarm digital input and output
External microphone input
Local MicroSD card slot for event recording
Compact and Versatile design
Multiple interior mount options
Clean and simple design
Quick and easy installation
Convenient wall-mounting enclosure
Mounting boxes included for multiple mounting angles: 0°,25° and 45°
Mounting boxes allow for conduit pendant mounting

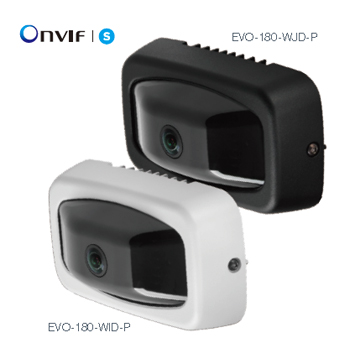

Black or white models available
Model
EVO-180-WID-P (White)
EVO-180-WJD-P (Black)
General
Lens Field of View
187° horizontal, 74° vertical (Panoramic Stream)
187° horizontal, 162° vertical (Fisheye Stream)
Image Sensor
4072 H x 3046 V, 12.4 MP
1/2.3 in. Sony CMOS Sensor
Lens 187° / F2.4
Day/Night IR Cut Filter
Automatic, Manual, External and Alarm Control
Minimum Illumination 0.1 lux
Frame Rate Up to 30 fps
Up to 14 fps at max resolution Panoramic Stream
Video Motion Detection 8 configurable polygon regions
External Alarm 1x contact input, 1x contact output External IR Filter Control 1x contact input
Audio Connections
Audio in through 12-pin I/O connector, RTSP using G711 codec and ONVIF Profile S
Audio Input Level
Mic input level range, approximately 5 mV to 50 mV
Advanced Event Management
Configurable triggers: motion regions, external contact input, network down and HTTP GET.
Configurable actions: external contact output, SMTP frame upload, local recording, LED, IR filter controls
Networking
TCP/IP, HTTP, DHCP, DNS, NTP, SMTP, RTSP, UPnP and WS-Discovery Privacy
10 configurable privacy regions Local Recording
Event based with configurable pre and post recording (ONVIF Profile G not supported)
SD Card Built-in MicroSD card slot. Supports cards up to 256GB capacity. Speed class 10 or higher.
White Balance Range
Auto White Balance (Range = approx. 2500 K ~ 8000 K)
Electrical
Ports
RJ45 1000Base-TX PoE
12-pin I/O connector: 12 VDC input (optional), Audio in, Alarm in & out, External IR Filter Control in Power Input
Power over Ethernet (PoE), IEEE standard 802.3af
12 VDC, 1.0 A (min) LPS, NEC Class 2 power supply.
Power Consumption (maximum)
7.20 W (PoE 48 VDC) / 6.96 W (DC 12 VDC)
Mechanical
Camera Mount Surface and Pendant
Weight 0.55 kg (1.21 lbs)
Dimensions (L x W x H) 163 x 57 x 94mm (6.4 x 2.2 x 3.7in.)
Housing Material Aluminum and Polymer
Environmental Operating Temperature Range 0 to + 40°C (-32 to +104°F)
Operating Humidity Up to 95% non-condensing
Certifications Approvals
IEEE802.3af, CE, AS/NZS CISPR 32:2015, CISPR 24:2010 (Class A) FCC, ICES-003,
UL 60950-1(ed.2), CAN/CSA C22.2 No. 60950-1-07, EN 50130-4:2011, RoHS, REACH
