AXIS Q1656-LE 02168-001 Box Camera

Brand:AXIS

Model:AXIS Q1656-LE 02168-001

LensFocal length 3.9-10 mm
Horizontal field of view 113-47 °
Vertical field of view 60-27 °

Detail

AXIS Q1656-LE 02168-001 Box Camera
Outstanding performance in 4 MP
Exceptional images with 1/1.8” sensor
Support for analytics with deep learning
Built-in cybersecurity features
Premium Axis Q-line camera functionality
Built-in wiper for snow and rain
With premium Q-line functionality and exceptional video quality even in poor light, AXIS Q1656-LE is based on the latest Axis system-on-chip (SoC) and offers support for powerful analytics based on deep learning on the edge.

The best of the best
AXIS Q1656-LE delivers exceptional video quality even in poor light conditions. This premium Q-line camera offers impressive performance with 4 MP resolution at up to 60 fps. With a 1/1.8” sensor, it provides the best possible image quality no matter what. Plus, a built-in wiper guarantees great images even in snow and rain. It includes Lightfinder 2.0 to capture outstanding forensic images in low light scenes. And, the built-in camera rails allow you to easily adjust or change the lens to a larger tele lens or i-CS lens. Furthermore, with selectable IR wavelength, you can choose between covert or semi-covert LED illumination.

artpec8 chip
Powerful analytics capabilities
This high-performance camera is based on ARTPEC-8, the latest Axis system-on-chip (SoC). Featuring a deep learning processing unit (DLPU), it eliminates the need for expensive servers and allows for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before - on the edge. Thanks to AXIS Object Analytics, it offers highly nuanced object classification enabling fast search in the VMS as well as reliable detection with fewer false positives. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.

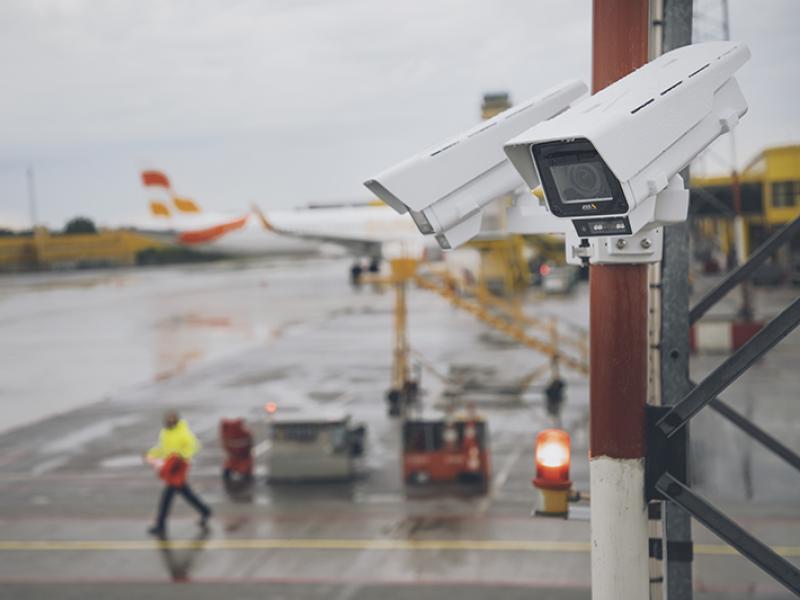

Axis camera on airport
Reliable and secure
Designed for easy and reliable installation, AXIS Q1656-LE is enclosed in a robust, impact-resistant IK10-rated casing. With IP66, IP67, NEMA 4X, and NEMA TS2 ratings, this water-resistant, weatherproof camera can also withstand winds up to 60 m/s. Including remote zoom and focus and support for PoE and redundant DC power, it offers flexible installation and maintenance. Plus, your data is safeguarded in the event of a power outage. It also includes surge protection (railway standard) and an intrusion switch for secure operation. Furthermore, built-in cybersecurity features prevent unauthorized access and safeguard your system.
Technical specifications
Models: AXIS Q1656-LE
Camera
Image sensor CMOS
Image sensor size 1/1.8
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.05 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
Video
Max video resolution 2688x1512
Max frames per second 50/60
Electronic image stabilization Yes
LensFocal length 3.9-10 mm
Horizontal field of view 113-47 °
Vertical field of view 60-27 °
Lens mount CS
Replaceable lens Yes
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support Yes
Network
PoE Class 4
Wireless –
Security
Signed firmware Yes
Secure boot Yes
General
Remote focus Yes
Remote zoom Yes
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
Vandal rating IK10 Except for front window IK 8
IP rating IP66, IP67
Designed for repaint Yes
Sustainability BFR/CFR free, PVC free
Power
Power (max) 25.5 W
Power (average) 11.2 W
DC input voltage 10-28 V

Accessories

Edge storage

AXIS Surveillance Card 64 GB

AXIS Surveillance Card 64 GB

High endurance microSDXC™ cardRecommended for this product
AXIS Edge storage suveillance card 128 GB from the front

AXIS Surveillance Card 128 GB

High endurance microSDXC™ cardRecommended for this product
AXIS edge surveillance card 256 GB from the front

AXIS Surveillance Card 256 GB

High endurance micro SDXC™ cardRecommended for this product

Housings & cabinets

AXIS T98A16-VE Media Converter Cabinet A

AXIS T98A16-VE Media Converter Cabinet A

Robust, pre-assembled cabinet for easy fiber installationRecommended for this product
AXIS T98A16-VE Surveillance Cabinet

AXIS T98A16-VE Surveillance Cabinet

Robust cabinet for easy installation of critical system equipmentRecommended for this product

Lenses

Lens i-CS 9-50 mm F1.5 8 MP

Lens i-CS 9-50 mm F1.5 8 MP

Remote zoom and focusRecommended for this product

Media converters

AXIS T98A16-VE Media Converter Cabinet A

AXIS T98A16-VE Media Converter Cabinet A

Robust, pre-assembled cabinet for easy fiber installationRecommended for this product
AXIS T8604 Media Converter Switch

AXIS T8604 Media Converter Switch

Converts Ethernet to fiber 12 V DCRecommended for this product
AXIS T86 media converter from left

AXIS T8606 Media Converter Switch 24 V DC

Converts Ethernet to fiber 24 V DCRecommended for this product

Microphones

AXIS T8351 Mk II Microphone 3.5 mm

AXIS T8351 Mk II Microphone 3.5 mm

High-performance, low noise analog microphone for superior audioRecommended for this product
AXIS T8353A Microphone 3.5 mm

AXIS T8353A Microphone 3.5 mm

For professional audio surveillanceRecommended for this product
AXIS T8355 Digital Microphone

AXIS T8355 Digital Microphone 3.5 mm

Digital microphone with lossless interface for superior audioRecommended for this product
TU1001-VE from left angle.

AXIS TU1001-VE Microphone

A robust outdoor-ready microphoneRequires additional accessoryRecommended for this product

Mounts

AXIS T91B47 Pole Mount

AXIS T91B47 Pole Mount

For different pole diametersRecommended for this product
AXIS T94Q01F Ceiling-and-Column Mount

AXIS T94Q01F Ceiling-and-Column Mount

For many installation scenariosRecommended for this product
AXIS T94R01B Corner Bracket

AXIS T94R01B Corner Bracket

For outdoor and indoor installationsRecommended for this product
AXIS T94V01C Dual Camera Mount

AXIS T94V01C Dual Camera Mount

Back-to-back camera installation made easyRecommended for this product
AXIS TQ1501-E Crane and Traffic Mount, viewed from its left angle

AXIS TQ1501-E Crane and Traffic Mount

Fewer vibrations and more stabilityRecommended for this product
AXIS TQ1601-E Conduit Back Box, white angled to its left

AXIS TQ1601-E Conduit Back Box

Aluminum conduit back box for increased mounting possibilitiesRecommended for this product

Power

AXIS 30 W Midspan, viewed from itrs left

AXIS 30 W Midspan

For indoor use, 240 V ACRecommended for this product
AXIS Outdoor midspan 30 W from the left angle

AXIS 30 W Outdoor Midspan

For outdoor use, -40 °C to 65 °C (-40 °F to 149 °F)Recommended for this product
AXIS T8061 Ethernet Surge Protector

AXIS T8061 Ethernet Surge Protector

Protects outdoor devices from power surgesRecommended for this product
AXIS TU8001 Ethernet Surge Protector

AXIS TU8001 Ethernet Surge Protector

For use indoors or in an enclosureRecommended for this product

Switches

AXIS T8504-E Outdoor PoE Switch

AXIS T8504-E Outdoor PoE Switch

Managed, plug-and play outdoor switchRecommended for this product
AXIS T8508 PoE+ Network Switch

AXIS T8508 PoE+ Network Switch

8 port switch for efficient network managementRecommended for this product
AXIS T8516 PoE+ Network Switch

AXIS T8516 PoE+ Network Switch

16 port switch for efficient network managementRecommended for this product
AXIS T8524 PoE+ Network Switch

AXIS T8524 PoE+ Network Switch

24 port switch for efficient network managementRecommended for this product

Tools & extras

AXIS Bird Control Spike

AXIS Bird Control Spike

Keep your outdoor network cameras cleanRecommended for this product
AXIS T8415 Wireless Installation Tool

AXIS T8415 Wireless Installation Tool

Simplicity in your handRecommended for this product

Weathershields

AXIS P13 Weathershield Extension A

AXIS P13 Weathershield Extension A

Designed for extreme weatherRecommended for this product

Discontinued products

The following compatible products have been discontinued.

Mounts

AXIS T94R01P Conduit Back Box
