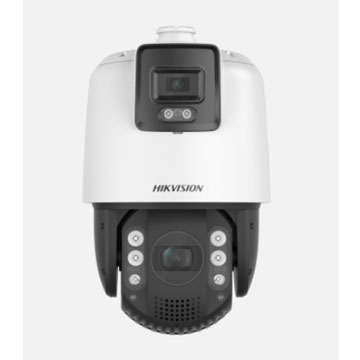

DS-2SE7C425MW-AEB(14F1)(P3)TandemVu 7-inch 4 MP 25X Colorful & IR Network Speed Dome
Focal Length
[Bullet channel]: 4 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
DS-2SE7C432MW-AEB(14F1)(P3)TandemVu 7-inch 4 MP 32X Colorful & IR Network Speed Dome
Focal Length
[Bullet channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 × optical
DS-2SE7C144IW-AE(32X/4)(S5)TandemVu 7-inch 4 MP 32X Powered by DarkFighter IR Network Speed Dome
Focal Length
[panoramic channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 × optical
DS-2SE7C124IW-AE(32X/4)(S5)TandemVu 7-inch 2 MP 32X Powered by DarkFighter IR Network Speed Dome
Focal Length
[panoramic channel]: 4 mm; [PTZ channel]: 4.8 to 153 mm, 32 ×optical

• Camera
• Image Sensor[Bullet channel]: 1/1.8" Progressive Scan CMOS; [PTZ channel]: 1/1.8" progressive scan CMOS
• Min. Illumination

  [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

  [PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR

• Shutter Speed1 s to 1/30,000 s
• Slow Shutteryes
• Focussemi-auto;manual;auto
• Day & NightICR
• Zoom[PTZ channel] 32 × optical, 16 × digital
• Day/Night Switchday, night, auto, scheduled-switch
• BLCyes
• WDR120 dB WDR
• HLCyes
• 3D DNRyes
• Defogyes
• EISyes
• Regional Exposureyes
• Regional Focusyes
• Image Settingssaturation;brightness;contrast;sharpness
• White BalanceMWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB
• SNR＞52dB
• General Functionmirror, password protection, watermark, IP address filter
• Max. Resolution[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440

• Lens
• Focal Length[Bullet channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 × optical
• Zoom Speed[PTZ channel]: approx. 5.6 s
• FOV

  [Bullet channel]: Horizontal field of view: 88.7°, Vertical field of view: 44.7°;

  [PTZ channel]: Horizontal field of view: 60.2° to 2.3° (wide-tele)

• Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.5

• Illuminator
• Supplement Light Type[Bullet channel] white light, [PTZ channel] IR
• Supplement Light Range[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 200 m
• Smart Supplement LightYes

• PTZ
• Movement Range (Pan)360°
• Movement Range (Tilt)-15° to 90° (auto flip)
• Pan Speedpan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
• Tilt Speedtilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
• Proportional Zoomyes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans
• Power-Off Memoryyes
• Park Actionpreset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
• 3D Positioningyes
• PTZ Status Displayyes
• Preset Freezingyes
• Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
• Exception DetectionIP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot

• Video
• Stream Typemain stream;sub-stream;third stream
• Main Stream

  [Bullet channel]:

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  [PTZ channel]:

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  [Bullet channel]:

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

  [PTZ channel]:

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

  [Bullet channel]:

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

  [PTZ channel]:

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video CompressionH.265;H.264;MJPEG
• Video Bit Rate32 kbps to 16384 kbps
• H.264 Typebaseline profile;main profile;high profile
• H.265 Typemain profile
• H.264+yes
• H.265+yes
• SVCyes
• ROImain stream, sub-stream and third stream respectively support eight fixed areas

• Audio
• Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM
• Audio Bit Rate32 to 192 Kbps (MP2L2)
• Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
• Environment Noise Filteringyes

• Smart Features
• Smart RecordANR;Dual-VCA
• Warning And Alertwhite light and audible warning

• Network
• Network StorageNAS (NFS，SMB/ CIFS), ANR
• ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
• APIOpen-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP
• Simultaneous Live View20
• User/Host32
• Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
• ClientiVMS-4200;Hik-Connect
• Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+

• Image
• Image Parameters SwitchYes
• Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable

• Interface
• Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
• On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
• Alarm Input2 alarm inputs
• Alarm Output1 alarm output
• Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
• Audio Output1 audio output, line level, impedance: 600 Ω

• Event
• Basic Event[PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
• Smart Event[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
• Alarm Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
• Smart Tracking[PTZ channel] yes
• Smart LinkageManual tracking, auto tracking, tracking takeover, track in turn

• Deep Learning Function
• Face Capture[Bullet channel] no,[PTZ channel] yes

• General
• Power24 VAC, Hi-PoE
• Power Consumption And CurrentMax. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light
• Operating Conditions-30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH
• Resetyes
• DemistDemist by heating the glass
• MaterialADC12
• DimensionsØ 220 mm × 382.1 mm (Ø 8.66" × 15.04")
• WeightApprox. 6 kg (13.23 lb.)

• Approval
• ProtectionIP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
