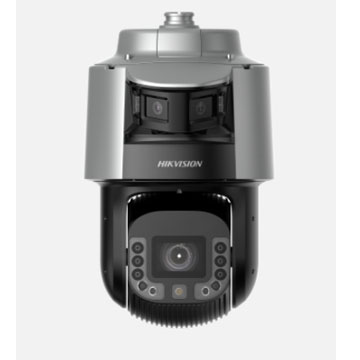

DS-2SF8C425MXS-DL(24F0)(P3)TandemVu 8-inch Panoramic 4 MP 25X DarkFighter Network Speed Dome
Focus
Auto,semi-auto,manual
Focal Length
[Panoramic channel] 2.8 mm, [PTZ channel] 5.9 to 147.5 mm
DS-2SF8C442MXS-DL(14F1)(P3)TandemVu 8-inch 4 MP 42X DarkFighter Network Speed Dome
Lens
Focus
Auto,semi-auto,manual
Zoom Speed
[Bullet channel] No, [PTZ channel] approx. 5.5 s
Focal Length
[Bullet channel] 4 mm, [PTZ channel] 6 to 252 mm
DS-2SF8C442MXS-DLW(24F0)(P3)TandemVu 8-inch Panoramic 4 MP 42X DarkFighter Network Speed Dome
Lens
Focus
Auto,semi-auto,manual
Focal Length
[Bullet channel] 2.8 mm, [PTZ channel] 5.9 to 247.8 mm
Zoom Speed
[Bullet channel] No, [PTZ channel] approx. 5.5 s
DS-2SF8C442MXS-DL(24F0)(P3)TandemVu 8-inch Panoramic 4 MP 42X DarkFighter Network Speed Dome
Lens
Focus
Auto,semi-auto,manual
Zoom Speed
[Bullet channel] No, [PTZ channel] approx. 5.5 s
Focal Length
[Bullet channel] 2.8 mm, [PTZ channel] 5.9 to 247.8 mm
Related Accessories
DS-1602ZJ-P
Wall mount
DS-1602ZJ-pole-P
Vertical pole mount
DS-1603ZJ-P
Wall mount
DS-1603ZJ-Pole-P
Vertical pole mount
DS-1661ZJ-P
Pendant Mount
DS-1668ZJ(20)-P
Pendant Mount

• Camera
• Image Sensor[Panoramic channel] 1/1.8" Progressive Scan CMOS, [PTZ channel] 1/1.8" Progressive Scan CMOS
• Min. Illumination

  [Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with Light,

  [PTZ channel] Color: 0.0005 Lux @ (F1.5, AGC ON), B/W: 0.0001 Lux @ (F1.5, AGC ON), 0 lux with IR

• Shutter Speed1 s to 1/30000 s
• Slow ShutterYes
• Day & Night[Panoramic channel] Color, [PTZ channel] IR cut filter
• Zoom[PTZ channel] 25 × optical, 16 × digital
• Max. Resolution[Panoramic channel] 3840 × 1080, [PTZ channel] 2560 × 1440

• Lens
• FocusAuto,semi-auto,manual
• Focal Length[Panoramic channel] 2.8 mm, [PTZ channel] 5.9 to 147.5 mm
• Zoom SpeedApprox. 4.8 s
• FOV

  [Panoramic channel]

  horizontal field of view: 190° ± 5°, vertical field of view: 50° ± 5°, diagonal field of view: 198° ± 5°,

  [PTZ channel]

  horizontal field of view: 58.5° to 3.1°, vertical field of view: 34° to 1.7°, diagonal field of view: 68.5° to 3.5°

• Aperture[Panoramic channel] F1.0, [PTZ channel] F1.5

• Illuminator
• Supplement Light Range[Panoramic channel] white light: up to 30 m, [PTZ channel] IR: up to 300 m
• Smart Supplement LightYes

• PTZ
• Movement Range (Pan)[PTZ channel] 0° to 360°
• Movement Range (Tilt)[Panoramic channel] 7° to 17°, [PTZ channel] -20° to 90°
• Pan Speed[PTZ channel] pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s
• Tilt Speed[Panoramic channel] tilt speed configurable,[PTZ channel] tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
• Proportional Pan[Panoramic channel] No, [PTZ channel] Yes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Power-Off MemoryYes
• Park ActionPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan
• 3D PositioningYes
• PTZ Status DisplayYes
• Preset FreezingYes
• Scheduled TaskPreset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output

• Video
• Main Stream[Panoramic channel] 50 Hz: 25 fps (3840 × 1080), 60 Hz: 24 fps (3840 × 1080),[PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream[Panoramic channel] 50 Hz: 25 fps (1920 × 536), 60 Hz: 24 fps (1920 × 536),[PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream[Panoramic channel] No,[PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline profile,Main profile,High profile
• H.265 TypeMain profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)8 fixed regions for each stream

• Audio
• Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC
• Audio Bit Rate32 to 192 Kbps (MP2L2),16 to 64 Kbps (AAC)
• Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
• Environment Noise FilteringYes

• Network
• APIISUP,ISAPI,SDK,Open Network Video Interface (Profile S, Profile G, Profile T)
• Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
• ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users. 3 user levels: administrator, operator, and user
• SecurityPassword protection,complicated password,IP address filter,HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),host authentication (MAC address),watermark
• ClientiVMS-4200,HikCentral Pro,Hik-Connect
• Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+

• Image
• Day/Night SwitchDay,night,auto,schedule
• Image EnhancementHLC,3D DNR
• Wide Dynamic Range (WDR)[Panoramic channel] No, [PTZ channel] 120 dB
• DefogDigital defog
• Image StabilizationEIS
• Regional ExposureYes
• Regional Focus[Panoramic channel] No, [PTZ channel] Yes
• Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Image Parameters SwitchYes
• Privacy Mask[Panoramic channel] No, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
• SNR≥ 52 dB

• Supplement Detection
• Satellite PositioningNo
• GyroscopeYes
• CompassNo

• Interface
• Ethernet Interface1 RJ45 100M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Alarm7 input(s), 2 output(s)
• Audio

  1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%,

  1 output (line out), line level, output impedance: 600 Ω

• RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• ResetYes

• Event
• Basic Eventvideo tampering alarm,exception,alarm input and output
• Smart EventLine crossing detection,intrusion detection,region entrance detection,region exiting detection,audio exception detection
• Smart TrackingManual tracking,auto-tracking,panorama tracking
• Alarm LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,white light flashing,and PTZ actions (such as preset, patrol scan, pattern scan)

• Deep Learning Function
• Multi-Target-Type DetectionSupports simultaneous detection and capture of human body, face and vehicle

• General
• General Functionmirror,password protection
• Power36 VDC ± 25%, max. 70 W,including max. 6 W for heater and max. 6 W for supplement light of panoramic channel, and max. 6 W for heater and max. 15 W for supplement light of PTZ channel
• Operating Condition-40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing),For speaker: -30 °C to 55°C (-22°F to 131°F)
• WiperNo
• DemistYes
• MaterialADC12
• DimensionØ290 mm × 453.2 mm (Ø11.42" × 17.84")
• WeightApprox. 11.5 kg (25.35 lb.)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• Approval
• EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 62368-1),CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1)
• EnvironmentCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection
