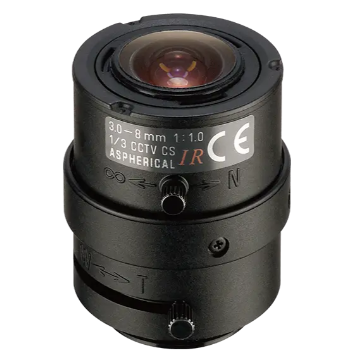

13VM308ASIRII Network Surveillance Camera Lenses

Model:13VM308ASIRII

Lens:3-8mm

Detail
13VM308ASIRII Network Surveillance Camera Lenses
Wide Type
Imager Size 1/3"
Focal Length 3-8mm
Aperture Range F/1.0-Close
Iris Manual Iris
Model No.
13VM308ASIR II
Imager Size 1/3"
Mount Type CS
Focal Length 3.0 - 8mm
Aperture Range 1.0 - Close
Field of View Angle
(Horizontal x Vertical) 1/3" Wide 92.5°  x  68.0°
Tele 35.7°  x  26.8°
1/4" Wide 68.0°  x  50.4°
Tele 26.8°  x  20.1°
Focusing Range 0.2m  -  ∞
Operation Focus Manual w/lock
Zoom Manual w/lock
Iris Manual w/lock
Filter Size -
Back Focal Distance Wide : 7.69(in air)
Tele : 13.72mm(in air)
Wave  Length Visible Light - Near Infrared
Operating Voltage -
Weight 38 g ± 4 g
Operating Temperature -20°C - +60°C
* Specificotions subjected to change without ony notice.
