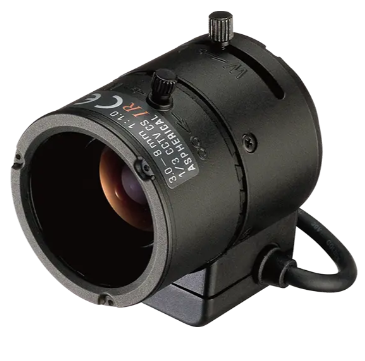

13VG308ASIRII Network Surveillance Camera Lenses

Model:13VG308ASIRII

lens:3-8mm

Detail

13VG308ASIRII Network Surveillance Camera Lenses
Wide Type
Imager Size 1/3"
Focal Length 3-8mm
Aperture Range F/1.0-360
Iris DC Auto-Iris
Model No.
13VG308ASIR II
Imager Size 1/3"
Mount Type CS
Focal Length 3.0 - 8mm
Aperture Range F/1.0 - 360
Field of View Angle
(Horizontal x Vertical) 1/3" Wide 92.5°  x  68.0°
Tele 35.7°  x  26.8°
1/4" Wide 68.0°  x  50.4°
Tele 26.8°  x  20.1°
Focusing Range 0.2m - ∞
Operation Focus Manual w/lock
Zoom Manual w/lock
Iris DC Auto Iris
Filter Size -
Back Focal Distance Wide : 7.69( in air )
Tele : 13.72mm( in air )
Wave Length Visible Light - Near Infrared
Operating Voltage OPEN : 3.0V
CLOSE : 0.7V
Weight 45g ± 4g
Operating Temperature -20°C - +60°C

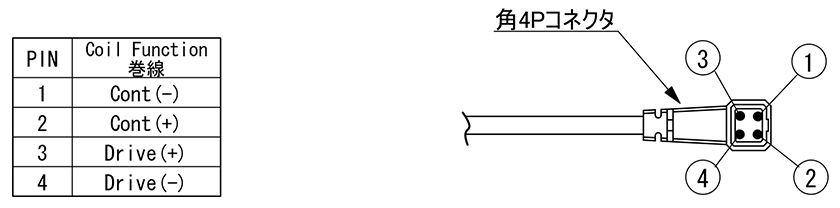

Wiring Diagram 13VG308ASIRⅡ Wiring Diagram
