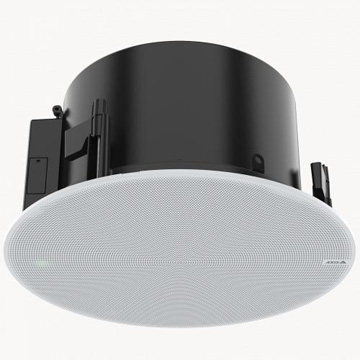

AXIS C1210-E Network Ceiling Speaker
Discrete in-ceiling installation—large
AXIS C1210-E is an all-in-one speaker system that makes voice announcements and background music smart and easy.
It connects to standard network using one cable for both power (PoE) and connectivity. AXIS C1210-E offers flexible,
discrete recessed ceiling installation, ideal for indoor environments but can also be used for protected outdoor areas
like under the eaves. Additionally, it features a backbox that meets plenum requirements. It offers easy integration with
your video management software (VMS), VoIP telephony, analytics, and more. Including a preconfigured digital signal
processer (DSP) it produces clear voice every time. It also features a built-in microphone enabling remote health testing
and 2-way audio talk-back. Furthermore, the embedded audio management software supports user, content, zone, and
scheduling management.
> All-in-one speaker system
> Connects to standard network
> Easy installation with just one network cable (PoE)
> Scalable and easy to integrate
> Remote health testing
Audio hardwareEnclosure One way enclosure with 6.5 inches broadband dynamic conespeakerMax soundpressure level96 dBFrequencyresponse40 Hz - 20 kHzCoverage pattern 130° coaxialAudioinput/outputBuilt-in microphone (can be disabled)External microphone, Line inBuilt-inmicrophonespecification50 Hz - 20 kHzAmplifierdescriptionBuilt-in 7 W Class D amplifierDigital signalprocessingBuilt-in and pre-configured
Audio hardware
Enclosure One way enclosure with 6.5 inches broadband dynamic cone
speaker
Max sound
pressure level
96 dB
Frequency
response
40 Hz - 20 kHz
Coverage pattern 130° coaxial
Audio
input/output
Built-in microphone (can be disabled)
External microphone, Line in
Built-in
microphone
specification
50 Hz - 20 kHz
Amplifier
description
Built-in 7 W Class D amplifier
Digital signal
processing
Built-in and pre-configured
Audio management
AXIS Audio
Manager Edge
Built in:
– Content management for music and live/pre-recorded
announcements.
– Scheduling to decide when and where to play specific content.
– Content prioritization to ensure urgent messages interrupt
the schedule.
– Zone management allowing you to divide up to 200 speakers
into 20 zones.
– Health monitoring for remote discovery of system errors.
– User management to control who has access to what features.
See separate datasheet for more details.
AXIS Audio
Manager Pro
For larger and more advanced systems. Sold separately. See
separate datasheet for specifications.
Audio software
Audio streaming One-way/two-way with optional half-duplex echo cancellation.
Mono.
Audio encoding AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz,
Axis µ-law 16 kHz, WAV, MP3 in mono/stereo from 64 kbps to
320 kbps.
Constant and variable bit rate.
Sampling rate from 8 kHz up to 48 kHz.
System on chip (SoC)
Model i.MX 6SoloX
Memory 512 MB RAM, 512 MB Flash
Network
Network
protocols
IPv4/v6a
, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP,
CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II),
DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP,
ICMP, DHCP, ARP, SOCKS, SSH, Secure syslog (RFC 3164/5424,
UDP/TCP/TLS), NTCIP, SIP (Cisco, Avaya, Asterisk)
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX®, One-click
cloud connection, AXIS Camera Application Platform (ACAP).
VoIP Support for Session Initiation Protocol (SIP) for integration with
Voice over IP (VoIP) systems. Peer to peer or integrated with
SIP/PBX.
Tested with: SIP client such as Cisco, Bria and Grandstream and
PBX suppliers such as Cisco and Asterisk.
Supported SIP features: secondary SIP server, IPv6, SRTP/RTSPS,
SIPS, SIP TLS, DTMF (RFC2976 and RFC2833), NAT (ICE, STUN,
TURN)
Supported codecs: PCMU, PCMA, opus, L16/16000, L16/8000,
speex/8000, speex/16000, G.726-32
Intelligent audio Auto Speaker Test (verification via built-in microphone)
Event triggers Call, virtual inputs, external input, AXIS Camera Application
Platform (ACAP)
Event actions Play audio clip, send SNMP trap, send Auto Speaker Test,
status LED, File upload via HTTP, network share and email,
Notification via email, HTTP, HTTPS and TCP,
external output activation
Built-in
installation aids
Test tone verification and identification
Cybersecurity
Edge security Software: Signed firmware, brute force delay protection, digest
authentication, password protection, AES-XTS-Plain64 256bit
SD card encryption
Hardware: Axis Edge Vault cybersecurity platform
Secure element (CC EAL 6+), Axis device ID, secure keystore,
signed video, secure boot
Network security IEEE 802.1X (EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3,
Network Time Security (NTS), X.509 Certificate PKI, IP address
filtering
Documentation AXIS OS Hardening Guide
Axis Vulnerability Management Policy
Axis Security Development Model
AXIS OS Software Bill of Material (SBOM)
To download documents, go to axis.com/support/cybersecurity/resources
To read more about Axis cybersecurity support, go to
axis.com/cybersecurity
General
Casing IP44 (IP40 above ceiling)
Baffle: Plastic
Top cover: Plastic
Mesh: Surface-treated steel plate
Mesh color: Off-white (RAL 9010 or equivalent)
Repaintable. For repainting instructions and impact on warranty,
contact your Axis partner.
Speaker mounting method: Plastic clamp
Power Power over Ethernet (PoE), IEEE 802.3af Type 1 Class 3 (max
12.95 W)
Connectors RJ45 10BASE-T/100BASE-TX PoE
I/O: 4-pin 2.5 mm terminal block for 2x supervised configurable
I/Os
Storage Support for microSD/microSDHC/microSDXC card
Max. size 64 GB
For SD card recommendations see www.axis.com
Reliability Designed for 24/7 operation.
LED indicators Status LED, front-facing LED
Operating
conditions
-30 °C to 50 °C (-22 °F to 122 °F)
Humidity 10–100 % RH (condensing)
Storage
conditions
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5–95 % RH (non-condensing)
Approvals EMC
CISPR 24, CISPR 35, CISPR 32 Class A, EN 55024,
EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2,
EN 61000-6-3, EN 61000-6-4, FCC Part 15 Subpart B Class A,
ICES-3(A)/NMB-3(A), KC KN35, KC KN32 Class A,
RCM AS/NZS CISPR 32 Class A, VCCI Class A
Safety
CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22,
IEC/EN 62368-1, KC-Mark, UL 62368-1, UL 60950-22
Environment
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP44
Dimensions Height: 150 mm (5.9 in), Front-mesh Ø 285 mm (11.2 in)
Ceiling thickness: for mounting: 0–60 mm (0–2.4 in)
Dimensions for fixing hole: Ø 261 mm ± 2 mm (10.3 in ± 0.08 in)
Weight 3100 g
Optional
accessories
AXIS TC1603 Tile Bridge (for installation in soft ceiling),
AXIS TC1602 Conduit Adapter, AXIS TC1702 Back Cover,
AXIS Safety Wire 3M
For more accessories, see axis.com
Video
management
software
AXIS Companion, AXIS Camera Station, video management
software from Axis’ Application Development Partners available
on axis.com/techsup/software
Languages English, German, French, Spanish, Italian
