AXIS C1211-E 02323-001 Network Ceiling Speaker
Discrete ceiling installation—small
All-in-one speaker system
Connects to standard network
Easy installation with just one network cable (PoE)
Scalable and easy to integrate
Remote health testing
This all-in-one speaker system offers easy installation and integration with other systems. It can be used to make general live or prerecorded voice messages, deliver safety instructions, or remotely and proactively warn off intruders.
Smart and easy to integrate
Based on open standards, AXIS C1211-E offers easy integration for instance with your video management software (VMS), with Voice over IP (VoIP) telephony (using SIP), and with analytics from Axis and our partners. Axis network speakers connect to your standard network and use one network cable for both power and connectivity (Power over Ethernet). With everything in one solution, installed on one network, there’s no need for additional audio equipment or cabling, and it’s easy to add or remove speakers. This enables more flexible, scalable, and cost-effective solutions. The bottom line? AXIS C1211-E offers a future-proof solution that follows your business needs and gives you the flexibility and possibility needed to quickly respond to future changes.
Smart features at the edge
This all-in-one ceiling speaker is packed with smart features to ensure great performance. With support for I/O, it enables various use cases when integrated with other systems and devices such as PIR sensors, buttons, strobe lights, and more. It features a preconfigured digital signal processor (DSP) to produce clear voice every time. And the built-in microphone supports 2-way audio talk-back enabling conversations with people near the speaker. It also supports speaker-test functionality for remote health testing – so you can rest assured that your system is working. Plus, thanks to external microphone input, you can connect an additional microphone that can be used in situations where the speaker is installed far from the audience.
Another smart feature is the built-in and clearly visible LED which adds visual status information ideal for many different use cases.
In addition, our AXIS Audio Manager Edge application comes built-in to let you efficiently manage and control your audio system. It includes functionalities such as zone management and scheduling of content. And you can prioritize content so that live voice messages always take priority – ensuring that critical information like emergency announcements and paging is always delivered promptly. If you need to coordinate audio across different sites, a standard version of our multisite management software, AXIS Audio Manager Center, is available free of charge.
People walking down stairs in office
Multipurpose speaker
AXIS C1211-E makes audio announcements smart and easy. This speaker lets you mix live or prerecorded announcements to suit various needs. You can also play background music, helping to increase business efficiency and customer experience. And, thanks to embedded AXIS Audio Manager Edge, you can manage and control your audio system via any standard web browser either locally or remotely.
You can use the same system to deliver warnings and crucial safety instructions helping to keep people safe, and to proactively warn off intruders from remote locations with live or prerecorded messages.

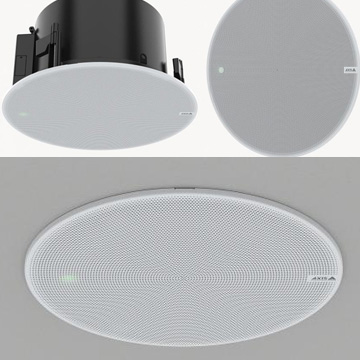

AXIS C1211-E front mounted to ceiling
Discrete ceiling installation
Ideal for delivering voice announcements on your premises, AXIS C1211-E offers discrete recessed ceiling installation. Designed to blend seamlessly into any surroundings, it can be repainted in any color. This compact device features a backbox that meets plenum requirements allowing for secure installation and helping to limit unwanted noise spreading above the ceiling into other areas. AXIS C1211-E is ideal for indoor installation across various segments such as retail and offices. It can also be used in protected outdoor areas like under the eaves.
Audio management software
audio manager c7050 mk 3
AXIS Audio Manager Pro C7050 Mk III
Audio management software pre-installed on a Windows 10 appliance
Audio management software
AXIS Audio Manager Pro C7050 MkII
Media converters
AXIS T8646 PoE+ Over Coax Blade Kit
AXIS T8648 PoE+ over Coax Blade Compact Kit
Power
AXIS T81B22 DC 30 W Midspan 1-port
AXIS T8123-E Outdoor Midspan 30 W 1-port
AXIS T8133 Midspan 30 W 1-port
AXIS C1211-E Network Ceiling Speaker
Discrete in-ceiling installation—small
AXIS C1211-E is an all-in-one speaker system that makes voice announcements smart and easy. It connects to standard
network using one cable for both power (PoE) and connectivity. AXIS C1211-E offers flexible, discrete recessed ceiling
installation, ideal for indoor environments but can also be used for protected outdoor areas like under the eaves. Additionally, it features a backbox that meets plenum requirements. It offers easy integration with your video management
software (VMS), VoIP telephony, analytics, and more. Including a preconfigured digital signal processer (DSP) it produces
clear voice every time. It also features a built-in microphone enabling remote health testing and 2-way audio talk-back.
Furthermore, the embedded audio management software supports user, content, zone, and scheduling management.
> All-in-one speaker system
> Connects to standard network
> Easy installation with just one network cable (PoE)
> Scalable and easy to integrate
> Remote health testing
Audio hardware
Enclosure One way enclosure with 4 inches broadband dynamic cone
speaker
Max sound
pressure level
93 dB
Frequency
response
40 Hz - 16 kHz
Coverage pattern 130° coaxial
Audio
input/output
Built-in microphone (can be disabled)
External microphone, Line in
Built-in
microphone
specification
50 Hz - 20 kHz
Amplifier
description
Built-in 7 W Class D amplifier
Digital signal
processing
Built-in and pre-configured
Audio management
AXIS Audio
Manager Edge
Built in:
– Content management for music and live/pre-recorded
announcements.
– Scheduling to decide when and where to play specific content.
– Content prioritization to ensure urgent messages interrupt
the schedule.
– Zone management allowing you to divide up to 200 speakers
into 20 zones.
– Health monitoring for remote discovery of system errors.
– User management to control who has access to what features.
See separate datasheet for more details.
AXIS Audio
Manager Pro
For larger and more advanced systems. Sold separately. See
separate datasheet for specifications.
Audio software
Audio streaming One-way/two-way with optional half-duplex echo cancellation.
Mono.
Audio encoding AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz,
Axis µ-law 16 kHz, WAV, MP3 in mono/stereo from 64 kbps to
320 kbps.
Constant and variable bit rate.
Sampling rate from 8 kHz up to 48 kHz.
System on chip (SoC)
Model i.MX 6SoloX
Memory 512 MB RAM, 512 MB Flash
Network
Network
protocols
IPv4/v6a
, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP,
CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II),
DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP,
ICMP, DHCP, ARP, SOCKS, SSH, Secure syslog (RFC 3164/5424,
UDP/TCP/TLS), NTCIP, SIP (Cisco, Avaya, Asterisk)
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX®, One-click
cloud connection, AXIS Camera Application Platform (ACAP).
VoIP Support for Session Initiation Protocol (SIP) for integration with
Voice over IP (VoIP) systems. Peer to peer or integrated with
SIP/PBX.
Tested with: SIP client such as Cisco, Bria and Grandstream and
PBX suppliers such as Cisco and Asterisk.
Supported SIP features: secondary SIP server, IPv6, SRTP/RTSPS,
SIPS, SIP TLS, DTMF (RFC2976 and RFC2833), NAT (ICE, STUN,
TURN)
Supported codecs: PCMU, PCMA, opus, L16/16000, L16/8000,
speex/8000, speex/16000, G.726-32
Intelligent audio Auto Speaker Test (verification via built-in microphone)
Event triggers Call, virtual inputs, external input, AXIS Camera Application
Platform (ACAP)
Event actions Play audio clip, send SNMP trap, send Auto Speaker Test,
status LED, File upload via HTTP, network share and email,
Notification via email, HTTP, HTTPS and TCP,
external output activation
Built-in
installation aids
Test tone verification and identification
Cybersecurity
Edge security Software: Signed firmware, brute force delay protection, digest
authentication, password protection, AES-XTS-Plain64 256bit
SD card encryption
Hardware: Axis Edge Vault cybersecurity platform
Secure element (CC EAL 6+), Axis device ID, secure keystore,
signed video, secure boot
Network security IEEE 802.1X (EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3,
Network Time Security (NTS), X.509 Certificate PKI, IP address
filtering
Documentation AXIS OS Hardening Guide
Axis Vulnerability Management Policy
Axis Security Development Model
AXIS OS Software Bill of Material (SBOM)
To download documents, go to axis.com/support/cybersecurity/resources
To read more about Axis cybersecurity support, go to
axis.com/cybersecurity
General
Casing IP44 (IP40 above ceiling)
Baffle: Plastic
Top cover: Plastic
Mesh: Surface-treated steel plate
Mesh color: Off-white (RAL 9010 or equivalent)
Repaintable. For repainting instructions and impact on warranty,
contact your Axis partner.
Speaker mounting method: Plastic clamp
Power Power over Ethernet (PoE), IEEE 802.3af Type 1 Class 3 (max
12.95 W)
Connectors RJ45 10BASE-T/100BASE-TX PoE
I/O: 4-pin 2.5 mm terminal block for 2x supervised configurable
I/Os
Storage Support for microSD/microSDHC/microSDXC card
Max. size 64 GB
For SD card recommendations see www.axis.com
Reliability Designed for 24/7 operation.
LED indicators Status LED, front-facing LED
Operating
conditions
-30 °C to 50 °C (-22 °F to 122 °F)
Humidity 10–100 % RH (condensing)
Storage
conditions
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5–95 % RH (non-condensing)
Approvals EMC
CISPR 24, CISPR 35, CISPR 32 Class B, EN 55024,
EN 55035, EN 55032 Class B, EN 61000-6-1, EN 61000-6-2,
EN 61000-6-3, EN 61000-6-4, FCC Part 15 Subpart B Class B,
ICES-3(B)/NMB-3(B), KC KN35, KC KN32 Class B,
RCM AS/NZS CISPR 32 Class B, VCCI Class B
Safety
CAN/CSA C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22,
IEC/EN 62368-1, KC-Mark, UL 62368-1, UL 60950-22
Environment
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP44
Dimensions Height: 150 mm (5.9 in), Ø 215 mm (8.5 in)
Ceiling thickness: for mounting: 0–60 mm (0–2.4 in)
Dimensions for fixing hole: Ø 194 mm ± 2 mm (7.6 in ± 0.08 in)
Weight 2000 g
Optional
accessories
AXIS TC1603 Tile Bridge (for installation in soft ceiling),
AXIS TC1602 Conduit Adapter, AXIS TC1702 Back Cover,
AXIS Safety Wire 3M
For more accessories, see axis.com
Video
management
software
AXIS Companion, AXIS Camera Station, video management
software from Axis’ Application Development Partners available
on axis.com/techsup/software
Languages English, German, French, Spanish, Italian
