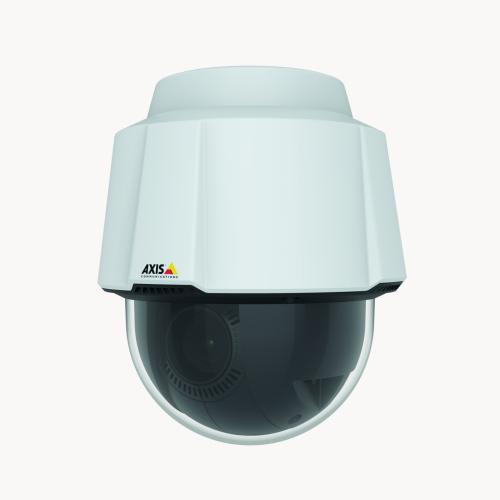

AXIS P5654-E Mk II PTZ Camera
Wide angle PTZ with HDTV 1080p and 21x zoom
HDTV 1080p with 21x optical zoom
Wide 77° field of view
Lightfinder 2.0 and Forensic WDR
Support for advanced analytics
Axis Edge Vault safeguards the device
This cost-effective PTZ camera offers great image quality in HDTV 1080p and wide area coverage with 77° field of view. Plus, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.
Great images – anytime
AXIS P5654-E MK II delivers great image quality in HDTV 1080p with 21x optical zoom. It offers wide area coverage with a 77° field of view. So, you’ll benefit from a sharp overview and great detail even in mixed and low light conditions. Thanks to Lightfinder 2.0 and Forensic WDR, it provides true colors and great detail in challenging light or near darkness. And electronic image stabilization (EIS) ensures stable images despite vibration. Including four scene profiles with different image settings, it’s optimized to suit specific scenarios. Furthermore, focus recall gives you instant focus even in challenging light conditions.
Keeping you secure
Built on the ARTPEC 7 system-on-chip, this PTZ camera includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. For instance, signed firmware and secure boot guarantee that the firmware hasn’t been altered and ensures only authorized firmware is installed. And if needed, secure boot guarantees that the camera is completely free of malware after a factory default.
And there’s more…
This versatile camera offers support for advanced analytics. Thanks to Axis Object Analytics it can detect and classify people and vehicles- all tailored to specific needs. Featuring shock detection, the camera will send an alarm when it has been hit. And Advanced Gatekeeper will automatically zoom in on objects detected in pre-defined areas. Axis Zipstream technology with H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, with IP66, NEMA 4X, and IK10 ratings, this robust and resistant camera can also handle temperatures ranging from -30°C to 50°C (-22°F to 122°F).

Technical specifications
Models: AXIS P5654-E Mk II 60HZ / AXIS P5654-E Mk II 50HZ
Camera
Property description Property value
Lightfinder Lightfinder 2.0
Min illumination/ light sensitivity (Color) 0.1 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
Image sensor CMOS
Image sensor size 1/2.8
Wide dynamic range Forensic WDR
General
Property description Property value
Built-in IR –
OptimizedIR –
Local storage (memory card slot) Yes
Operating temperature -30 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66
Designed for repaint Yes
Analytics
Property description Property value
Autotracking version Autotracking 2
Orientation aid –
Video
Property description Property value
Max video resolution 1920x1080
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization Yes
Lens
Property description Property value
Focal length 4.0 - 84.6 mm
Horizontal field of view 77.0-3.6 °
Vertical field of view 43.1-2.0 °
Pan, Tilt, Zoom
Property description Property value
Optical zoom 21
Pan range 360 endless
Tilt range +/- 90
Guard tour limited guard tour
Digital zoom 12
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support –
Built-in microphone –
System Integration
Property description Property value
Audio detection –
Active tampering –
Alarm inputs/outputs –
Network
Property description Property value
PoE Class 4
Security
Property description Property value
Signed firmware Yes
Secure boot Yes
TPM –
