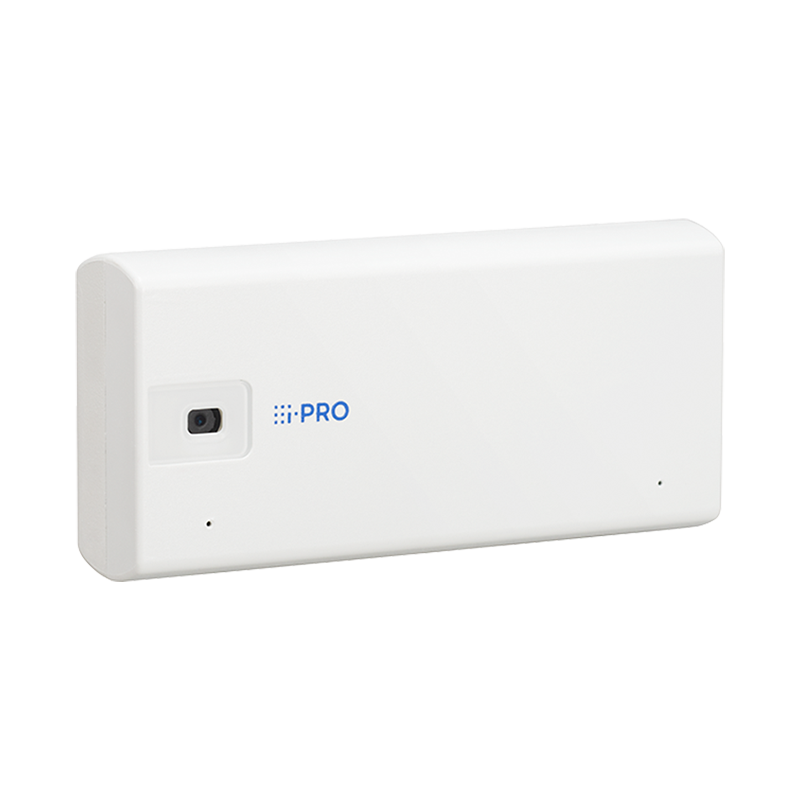

WV-S71300A-F3 i-PRO 2MP Indoor mini box camera
A stylish compact AI network camera that is blending seamlessly into any surrounding and providing insights beyond security.
2MP (1080p) Indoor mini Box Network Camera with AI Engine
2MP Indoor mini box camera
Up to 3 Edge AI analytic apps
Built-in FIPS 140-2 Level 3 Certified SecureElement (EdgeLock® SE050F NXP® Semiconductors)
NDAA Compliant
Camera
COMPONENT SPECIFICATION
Image Sensor Approx. 1/2.8 type CMOS image sensor
Scanning Area 5.57 mm (H) × 3.13 mm (V)
{7/32 inches (H) × 1/8 inches (V)}
Minimum Illumination Color :
0.21 lx (30IRE, F2.0, 1/30s, AGC:11)*
0.3 lx (50IRE, F2.0, 1/30s, AGC:11)
0.019 lx (50IRE, F2.0, 16/30s, AGC:11)*
BW :
0.2 lx (50IRE, F2.0, 1/30s, AGC:11)
0.013 lx (50IRE, F2.0, 16/30s, AGC:11)*
*Converted value
White Balance ATW1/ ATW2/ AWC
Shutter Speed [30 fps][15 fps]
16/30s Fix to 1/10000s
[25 fps][12.5 fps]
16/25s Fix to 1/10000s
Intelligent Auto On / Off
Adaptive Black Stretch The level can be set in the range of 0 to 255.
Back Light Compensation/High Light Compensation BLC (Back light compensation) / HLC (High light compensation) /
Off (only when intelligent Auto : Off)
Fog Compensation On / Off (only when Intelligent auto / auto contrast adjust : Off)
Maximum gain (AGC) The level can be set in the range of 0 to 11.
Color/BW (ICR) Auto/Off
Light control mode setting Indoor scene (50 Hz)/ Indoor scene (60 Hz)/ELC
Digital Noise Reduction The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On / Off, 4 areas available
Scene Change Detection (SCD) On / Off, 1 areas available
Audio Detection On / Off
AI Sound Classification Gunshot, Yell, Vehicle horn, Glass break
AI Analytics AI Video Motion Detection, AI Privacy Guard, AI Face Detection, AI People Detection,
AI Vehicle Detection, AI Non mask Detection (prior to V2.70), AI Occupancy Detection, AI Scene Change Detection, AI Processing Relay
For details :
https://i-pro.com/products_and_solutions/en/surveillance/products/analytics-software
3rd party applications are also available.
https://i-pro.com/products_and_solutions/en/surveillance/solutions/edge-ai-platform/application-list
Privacy Zone On / Off, Up to 8 zones available
VIQS On / Off, Up to 8 zones available
Image Rotation 0 ° / 90 ° / 180 ° / 270 °
Camera Title (OSD) On / Off, Up to 40 characters Up to 2 lines
(alphanumeric characters, marks)
Lens
COMPONENT SPECIFICATION
Optical zoom 1.0 x
Extra zoom 1.0 - 3.0 x (when resolution is 640 x 360)
Focal length 3.2 mm
Angular Field of View [16 : 9 mode] Horizontal : 81.1°, Vertical : 51.4°
[ 4 : 3 mode] Horizontal : 60.8°, Vertical : 51.4°
Aperture 1 : 2.0
Focus range 0.5 m to ∞
DORI
COMPONENT SPECIFICATION
Detect (25ppm / 8ppf) 44.9 m / 147.2 ft
Observe (62.5ppm / 19ppf) 18.0 m / 58.9 ft
Recognize (125ppm / 38ppf) 9.0 m / 29.4 ft
Identify (250ppm / 76ppf) 4.5 m / 14.7 ft
System on Chip (SoC)
COMPONENT SPECIFICATION
System on Chip (SoC) Ambarella CV22
OS Browser
COMPONENT SPECIFICATION
OS Microsoft Windows 11
Microsoft Windows 10
Browser Microsoft Edge, Firefox, Google Chrome
Network
COMPONENT SPECIFICATION
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution H.265/ H.264/ JPEG (MJPEG) [16:9 mode (30 fps mode)], [16:9 mode (25 fps mode)]
1920x1080, 1280x720, 640x360, 320x180
[4:3 mode (30 fps mode)], [4:3 mode (25 fps mode)]
1280x960, 640x480, 320x240
[4:3 mode (15 fps mode)], [4:3 mode (12.5 fps mode)]
2048x1536*4 , 1280x960, 640x480, 320x240
H.265/H.264 [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type] Unicast port (AUTO) / Unicast port (MANUAL) / Multicast
JPEG [Image Quality] 10 steps
Smart Coding GOP (Group of pictures control):
Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/
Advanced(Fixed GOP 60s w/1s key-frame)/
Frame rate control (Variable GOP 4s-16s with frame rate control)
*Advanced and Frame rate control are only available with H.265.
Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off
Audio Compression G.726 (ADPCM) : 16 kbps / 32 kbps
G.711 : 64 kbps
AAC-LC*6 : 64 kbps / 96 kbps / 128 kbps
Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6,RTP, MLD, ICMP, ARP, IEEE 802.1X,DiffServ, FTP, SFTP, MQTT, LLDP
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, MQTT, LLDP
Security User authentication, Host authentication, HTTPS
No. of Simultaneous Users Up to 14 users
(Depends on network conditions)
Secure FIPS 140-2 level 3 (NXP® EdgeLock® SE050F), Device Certificate GlobalSign® pre-installed,
HTTPS, User authentication, Digest authentication, Host authentication,
IEEE802.1X, System log, Image transmission log, Brute-force protection, Alteration detection, Signed Firmware
Multi-screen Display 16 cameras simultaneously Supports only MJPEG/JPEG (still image update)
microSD memory card microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB
microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
microSD memory card: 2 GB
Mobile Terminal Compatibility iPad, iPhone (iOS 8.0 ~),
AndroidTM terminals
ONVIF® Profile G / M / S / T
Input/Output
COMPONENT SPECIFICATION
Monitor Output -
Wi-Fi USB Adapter Yes (for adjustment)
General
COMPONENT SPECIFICATION
Safety CE, IEC62368-1
EMC FCC (Part15 ClassA), ICES-003 ClassA,
EN55032 ClassA, EN55035
Power Source and Power Consumption DC5 V(USB Type-C)(USB Power Delivery not supported), 1.5 A, Approx. 7.5 w
PoE (IEEE802.3af compliant) Device : DC48 V 170 mA, Approx. 8.2 W(Class 0 device)
Ambient Operating Temperature -10 °C to +40 °C (14 °F to 104 °F)
Power on : 0 °C ~ +40 °C (32 °F to 104 °F )
Ambient Operating Humidity 10 to 90 %
(no condensation)
Built-in microphone Omnidirectional Electret Condenser Microphone x2
USB port High-speed serial interface (theoretical value: 480 Mbps)
USB2.0 1 line
Waterproof IP44 (IEC 60529)
Dimensions Without protective cover
102 mm (W) × 48 mm (H) × 21 mm (D)
{4-1/32 inches (W) × 1-7/8 inches (H) × 13/16 inches (D)}
(Depth when mounting seat is installed: +29.5 mm {+1-5/32 inches})
With protective cover
103.5 mm (W) × 51 mm (H) × 24 mm (D)
{4-1/16 inches (W) × 2 inches (H) × 15/16 inches (D)}
(Depth when mounting seat is installed: +28 mm {+1-3/32 inches})
Mass (approx.) Approx. 157 g (excluding the mounting base and protective cover)
Approx. 169 g (excluding the mounting base, including the protective cover)
Approx. 197 g (including mounting base and protective cover)
Finish PC resin,
Aluminum die-casting,
i-PRO white
