AXIS M4318-PLR/M4318-PLVE Panoramic Camera
Lens(M4318-PLVE/M4318-PLR)
Property description Property value
Focal length 1.2 mm
Horizontal field of view 182 °
Vertical field of view 182 °
Weight
860 g (1.9 lb)
Detail

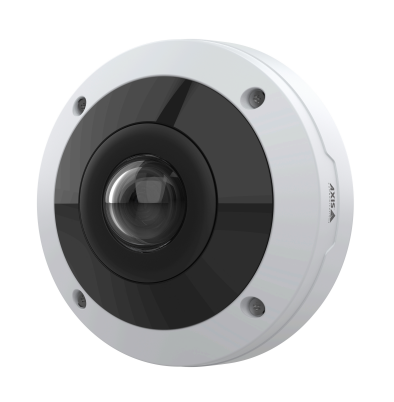

AXIS M4318-PLR/M4318-PLVE Panoramic Camera
12 MP fisheye camera for buses
Optimized for surveillance onboard buses, this discreet, panoramic camera is designed to withstand shock and vibrations.
It delivers a complete 180° or 360° overview for total situational awareness. Thanks to built-in IR illumination with
individually controllable LEDs, it ensures clear, reflection-free footage and excellent image quality even in low light or
complete darkness. Delivered factory-focused, it includes digital roll functionality to remotely adjust the rotation of the
camera overview. Furthermore, this high-performance camera includes built-in cybersecurity features to help prevent
unauthorized access and safeguard your system. Plus, it supports advanced analytics based on deep learning on the
edge.
> Sharpdome technology
> Complete 180° and 360° overview
> Built-in IR with individual IR LEDs
> Support for advanced analytics
> Built-in cybersecurity features
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.
Included
AXIS Object Analytics
Suite of AI-based analytics for actionable insights
AXIS Scene Metadata
Actionable insights through scene analysis
AXIS Speed Monitor
Visualize radar data and get actionable insights
AXIS Video Motion Detection
Technical specifications
Variants: AXIS M4318-PLR
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/2.3"
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.19 lux
Min illumination/ light sensitivity (B/W) 0.04 lux
Video
Property description Property value
Max video resolution 2992x2992
Max frames per second 25/30
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 1.2 mm
Horizontal field of view 182 °
Vertical field of view 182 °
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Audio
Property description Property value
Audio Support –
Security
Property description Property value
Signed OS Yes
Secure boot Yes
General
Property description Property value
Remote focus –
Remote zoom –
Built-in IR Yes
OptimizedIR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 50 °C
Outdoor Ready –
Vandal rating IK10
IP rating IP66
Sustainability BFR/CFR free, PVC free
AXIS M4318-PLR AR, AU, BR, CN, EU, JP, KR, UK, US
02834-001
AXIS M4318-PLR IN
02834-113
AXIS M4318-PLVE AR, AU, BR, CN, EU, JP, KR, UK, US
02511-001
AXIS M4318-PLVE IN
02511-113
