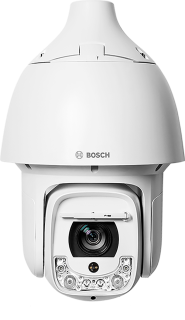

PTZ 4MP HDR 30x IP66 pendant IR
CTN: NDP-5533-Z30L | Product No.: F.01U.421.007
30X, 4MP high detail at fast speeds (60 fps)
Starlight technology with 1/1.8 inch HD sensor for excellent low-light performance
HDR X technology with up to 133dB dynamic range and fewer motion-related artifacts
Combination of 320 m (1050 ft) IR (850 nm) + White light LEDs
Rain-sensing wiper for improved images in rain and in dirty urban conditions
Key Specifications
Camera functionality Backlight compensation (BLC); Intelligent auto exposure; Intelligent dynamic noise reduction; Intelligent defog
Color (lx) 0.0101 lx
Effective pixels (H x V) 2688 x 1520
Ethernet type 10/100BASE-T
Input voltage (VAC) 24 VAC
Iris control Automatic
Lens aperture (/F) 1.5 – 4.8 /F
Lens focal length (mm) 6.6 – 198 mm
Lens zoom (x) 30 x
Material Aluminum
Monochrome (lx) 0.0016 lx
Operating temperature (°C) -40 – 60 °C
Pan range (°) 0° – 360° continuous
Pre-position accuracy (average) (°) 0.10 °
Protocols / standards IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); 802.1x, EAP/TLS; DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; DiffServ (QoS); LLDP; SOAP; CHAP; Digest authentication
Sensor type 1/1.8 inch CMOS
Storage temperature (°C) -40 – 60 °C
Video compression H.264 (ISO/IEC 14496-10); M-JPEG; H.265/HEVC
Weight (kg) 9.90 kg
NDP-5533-Z30L PTZ 4MP HDR 30x IP66 pendant IR
PTZ dome camera, 4MP HDR, 30x optical zoom, clear,
IP66 pendant, IR
NDAA and TAA compliant.
Order number NDP-5533-Z30L
Accessories
NPD-6001C Midspan, bt, 60W, indoor
Indoor midspan with Power-over-Ethernet for use with
PoE-enabled cameras; 60 W, single-port, AC input
Order number NPD-6001C
NPD-6001C-E Midspan, bt, 60W, IP67
Outdoor midspan with Power-over-Ethernet for use
with PoE-enabled cameras; 60 W, single-port
Order number NPD-6001C-E
UPA-2450-50 PSU, 220VAC 50Hz, 24VAC 50VA out
Indoor power supply for camera. 220 VAC, 50 Hz in;
24 VAC, 50 VA out
Order number UPA-2450-50
UPA-2450-60 PSU, 120VAC 60Hz, 24VAC 50VA out
Indoor power supply for camera. 120 VAC, 60 Hz In;
24 VAC, 50 VA Out
Order number UPA-2450-60
NDA-U-PA0 Surveillance cabinet 24VAC
Surveillance cabinet, 24 VAC input, 24 VAC output
Order number NDA-U-PA0
NDA-U-PA1 Surveillance cabinet 120VAC
Surveillance cabinet, 100 - 120 VAC 50/60 Hz input,
24 VAC output
Order number NDA-U-PA1
NDA-U-PA2 Surveillance cabinet 230VAC
Surveillance cabinet, 230 VAC input, 24 VAC output
Order number NDA-U-PA2
NDA-U-WMT Pendant wall mount
Universal wall mount for dome cameras, white
Order number NDA-U-WMT
NDA-U-WMP Wall mount plate
Back plate for universal wall mount, corner mount and
pole mount, white, IP66
Order number NDA-U-WMP
NDA-U-CMT Corner mount adapter
Universal corner mount, white
Order number NDA-U-CMT
NDA-U-PSMB Pendant wall/ceiling mount SMB
Surface mount box (SMB) for wall mount or pipe
mount.
Order number NDA-U-PSMB
NDA-U-PMAS Pole mount adapter small
Pole mount adapter small
Universal pole mount adapter, white; small.
Order number NDA-U-PMAS
NDA-U-PMAL Pole mount adapter large
Universal pole mount adapter, white; large
Order number NDA-U-PMAL
NDA-U-PMT Pendant pipe mount, 12" (31cm)
Universal pipe mount for dome cameras, 31 cm, white
Order number NDA-U-PMT
NDA-U-PMTS Pendant pipe mount, 4" (11 cm)
Universal pendant pipe mount for dome cameras,
11 cm (4"), white
Order number NDA-U-PMTS
NDA-U-RMT Pendant parapet mount
Universal roof mount for dome cameras, white, for
outdoor usage
Order number NDA-U-RMT
VG4-SFPSCKT Ethernet to SFP interface kit
Ethernet media converter video transmitter/data
receiver fiber optic kit
Order number VG4-SFPSCKT
SFP-2 Fiber module, multimode, 1310nm, 2LC
SFP Fiber Optic Module, 2 km (1.2 miles), 2 LC
connectors.
Multi-mode
1310 mm
Order number SFP-2
SFP-3 Fiber module, single-mode, 1310nm, 2LC
SFP Fiber Optic Module, 20 km (12.4 miles), 2 LC
connectors.
Single-mode
1310 nm
Order number SFP-3
SFP-25 Fiber module, 1310/1550nm, 1SC
SFP Fiber Optic Module, 2 km (1.2 miles), 1 SC
connector
Multi-mode
1310/1550 nm
Order number SFP-25
SFP-26 Fiber module, 1550/1310nm, 1SC
SFP Fiber Optic Module, 2 km (1.2 miles), 1 SC
connector
Multi-mode
1550/1310 nm
Order number SFP-26
Software Options
MVS-FCOM-PRCL License key for serial protocol
Serial Protocol Software License (e-license) for IP
Cameras
Order number MVS-FCOM-PRCL
Services
EWE-AD5HD-IWMP 12 mths wrty ext AD IP 5000 mov
par
12 months warranty extension
Order number EWE-AD5HD-IWMP
Parts included with this product
Quantity Component
1 AUTODOME IP starlight 5100i IR camera
1 Screwdriver, T15 Torx
3 MAC address labels
1 Pendant interface plate
2 M4 screw
1 IP66 kit
1 PE foam
1 3/16” Allen key (Hex key)
1 Quick Installation Guide
1 Safety instructions
