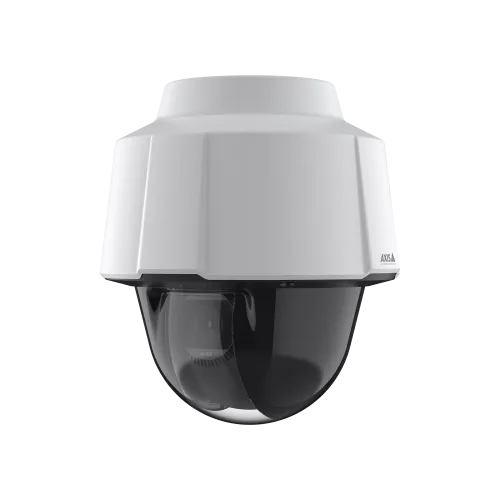

AXIS P5676-LE PTZ Camera
Technical specifications
Variants: AXIS P5676-LE 60 Hz / AXIS P5676-LE 50 Hz
Camera
Property description Property value
Lightfinder Lightfinder 2.0
Min illumination/ light sensitivity (Color) 0.11 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
Image sensor CMOS
Image sensor size 1/2.9"
Wide dynamic range Forensic WDR
Security
Property description Property value
Signed OS Yes
Secure boot Yes
TPM –
General
Property description Property value
Built-in IR Yes
OptimizedIR Yes
Local storage (memory card slot) Yes
Operating temperature -30 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66
Designed for repaint Yes
Analytics
Property description Property value
Autotracking version Autotracking 2
Orientation aid orientation aid PTZ
Video
Property description Property value
Max video resolution 2688x1512
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization Yes
Lens
Property description Property value
Focal length 4.6-133 mm
Horizontal field of view 57.1-2.1 °
Vertical field of view 34.4-1.2 °
Pan, Tilt, Zoom
Property description Property value
Optical zoom 30
Pan range 360 endless
Tilt range 0-90
Guard tour limited guard tour
Digital zoom 12
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
AV1 –
Audio
Property description Property value
Audio Support Yes
Built-in microphone -
System Integration
Property description Property value
Audio detection Yes
Active tampering –
Alarm inputs/outputs 4
Network
Property description Property value
PoE Class 6
