Key Specifications
Input voltage Power-over-Ethernet (48 VDC nominal); or 24 VAC / +12 VDC
PoE IEEE 802.3af (802.3at Type 1) Power level: Class 3
Power consumption PoE (12 W); 24 VAC (12.13 W); +12 VDC (13.2 W)
Sensor type 1/2.9‑inch CMOS
Active pixels 1280 (H) x 960 (V)
Color 0.07 lx
Mono 0.05 lx
With IR 0.0 lx
Dynamic range 76 dB WDR
Video compression H.264 (MP); M- JPEG
Streaming Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI)
Overall IP Delay Min. 120 ms, Max. 340 ms
GOP structure IP
Encoding interval 1 to 25 [30] ips
720p HD 1280 x 720
1.3 MP (4:3) 1280 x 960
Upright 9:16 (cropped) 400 x 720
D1 4:3 (downscaled/cropped) 704 x 480
480p SD Encoding: 704 x 480; Displayed: 854 x 480

432p SD 768 x 432

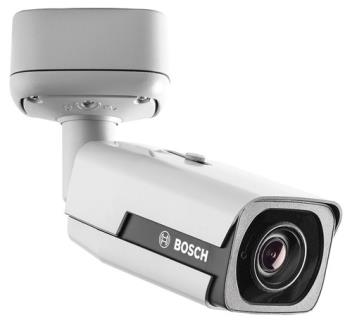

NTI-40012-A3S Bullet 1MP 2.8-12mm auto IP66 surfaceRobust IP bullet camera with infrared illumination foroutdoor HD surveillance applications.Surface mount box

Order number NTI-40012-A3S | F.01U.316.553NTI-40012-A3 Bullet 1MP 2.8-12mm auto IP66Robust IP bullet camera with infrared illumination foroutdoor HD surveillance applications.Order number NTI-40012-A3 | F.01U.312.069

AccessoriesNTI-BLC-SMB Surface mount box for bullet cameraSurface mount box for bullet camera.Order number

 NTI-BLC-SMB | F.01U.315.261NPD-5001-POE Power over ethernet , 15.4W, 1-portPower-over-Ethernet midspan injector for use with PoEenabled cameras; 15.4 W, 1-portWeight: 200 g (0.44 lb)

Order number NPD-5001-POE | F.01U.305.288NPD-5004-POE Power over ethernet, 15.4W, 4-portPower-over-Ethernet midspan injectors for use with PoEenabled cameras; 15.4 W, 4-portsWeight: 620 g (1.4 lb)

Order number NPD-5004-POE | F.01U.305.289
