3.0C-H5A-CR2-IR 3.0C-H5A-CR2-IR-SS H5A Corner Camera, Stainless Steel
Ordering Information
MP WDR Analytics Lens IR Body Finish
3.0C-H5A-CR2-IR 3.0 ✓ ✓ 2.3 mm ✓ Cold Rolled Steel Powder Coat
3.0C-H5A-CR2-IR-SS 3.0 ✓ ✓ 2.3 mm ✓ Stainless Steel Bead Blasted & Polished
5.0C-H5A-CR2-IR 5.0 ✓ ✓ 2.3 mm ✓ Cold Rolled Steel Powder Coat
5.0C-H5A-CR2-IR-SS 5.0 ✓ ✓ 2.3 mm ✓ Stainless Steel Bead Blasted & Polished
3.0C-H5A-CR1-IR 3.0 ✓ ✓ 3 - 9 mm ✓ Cold Rolled Steel Powder Coat
3.0C-H5A-CR1-IR-SS 3.0 ✓ ✓ 3 - 9 mm ✓ Stainless Steel Bead Blasted & Polished
5.0C-H5A-CR1-IR 5.0 ✓ ✓ 3 - 9 mm ✓ Cold Rolled Steel Powder Coat
5.0C-H5A-CR1-IR-SS 5.0 ✓ ✓ 3 - 9 mm ✓ Stainless Steel Bead Blasted & Polished
Optional Camera Licenses and accessories
CNBX-1001 Conduit gang box, powder coated aluminum die-cast, white (accepts 12.7 mm/0.5 " or 19.05 mm/0.75 " conduit pipe)
USB-AC56-NA-MSI /
USB-AC56-EU-MSI USB Wi-Fi Adapter
CM-AC-AVIO1 3.5 mm jack with 1.8 m fly wire
CAM-FIPS Camera license to enable FIPS Level 1 cryptographic mode on any H5A camera

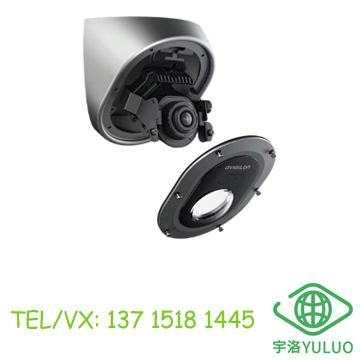

CR-FFKIT-SS Replacement faceplate for stainless steel corner camera models
CR-FFKIT-WHT Replacement faceplate for white steel corner camera models

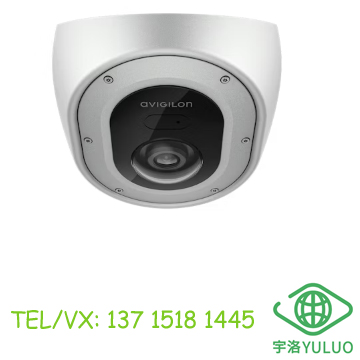

The H5A Corner security camera is an anti-ligature, no-grip and vandal-resistant solution that can handle the harshest attempts to destroy, detach, attach to or disable it. The stainless steel model provides an ideal solution for prisons that require a camera with a wide field of view and a tough exterior that can protect against water and corrosion.
Built for government and public safety
The H5A Corner camera is purpose-built for government and public safety facilities such as prisons, detention centers, police stations and psychiatric wards. Its anti-ligature and no-grip design prevents inmates and patients from tying something tightly to the camera to inflict self-harm. Achieve discreet, undisturbed monitoring with the camera’s invisible IR LED light.
Obtain complete situational awareness
High-risk areas need a camera that can provide complete situational awareness for optimal protection. The H5A Corner camera allows you to monitor an area wall-to-wall with no gaps in coverage. For prisons that require a wider field of view, this camera delivers up to 135 degrees of horizontal field of view (HFOV) to meet those requirements with its fixed lens option. A built-in microphone offers optional audio recording capabilities for greater evidentiary detail.
Expedite response times with AI
Stay a step ahead with the H5A Corner camera’s built-in AI-powered video analytics and Unusual Activity Detection to flag potentially critical events in need of attention. Accelerate response times with the camera’s support for Facial Recognition to identify people of interest on your watch lists. Streamline forensic investigations with its support for Avigilon Appearance Search technology to quickly locate people of interest across your site.
Dimensions (LxWxH) 163 mm x 163 mm x 121 mm; 6.4” x 6.4” x 4.8”
Weight 3.21 kg (7.2 lbs)
lens：CR1:3-9mm，CR2:2.3mm
Minimum Mounting Height 2.75 m (9')
Dome Bubble Polycarbonate
Body Stainless steel / Cold rolled steel

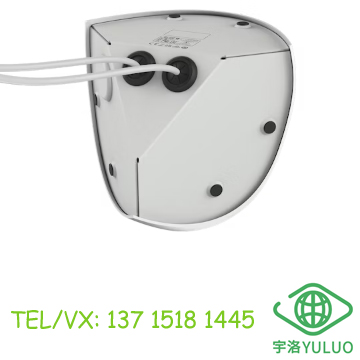

Housing Corner mount, vandal resistant
Finish Bead blasted and electro-polished / Cast, powder coated, Pantone 427C
Recording LED Yes
Built-in Microphone Yes
Adjustment Range ±5° tilt
