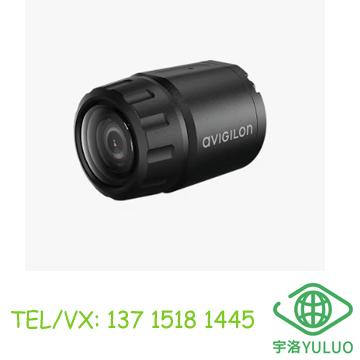

5C-H5MOD-MB2 3C-H5MOD-MB2 3C-H5MOD-RP4 Modular Camera lens
Camera Main Unit
Display Part Number Description
H5A-MOD-2P H5A Modular Camera Main Unit
Camera Imager
Display Part Number Description
3C-H5MOD-RP4 3 MP Pinhole Right Angle Imager (H5A Modular)
3C-H5MOD-MB2 3 MP Fixed Lens Micro Bullet Imager (H5A Modular)
5C-H5MOD-MB2 5 MP Fixed Lens Micro Bullet Imager (H5A Modular)
Camera Cables
Display Part Number Description
CBL2M-1001 2 m (6 ft) HD BNC Cable for H5A Modular Camera Imager
CBL5M-1001 5 m (16 ft) HD BNC Cable for H5A Modular Camera Imager
Optional MountING ADAPTERS
Display Part Number Description
BRKTMD-1001 Din rail mount for H5A Modular Camera Main Unit
BRKTMD-1011 Replacement L Bracket for Micro Bullet Imager H5A Modular
BRKTMD-1021 Replacement Flat Bracket for Right Angle Imager H5A Modular
BRKTMD-1031 Replacement Trimring Bracket for Micro Bullet Imager H5A Modular
sales@avigilon.com  |  avigilon.com 9
Optional Licenses and Accessories*
Display Part Number Description
CAM-FIPS Camera license to enable FIPS Level 1 cryptographic mode on any H5A camera
CAM-FIPS-CRYPTR-L3 MSI CRYPTR SD with camera license to enable FIPS Level 3 cryptographic mode on H5A cameras
*Only one license required per main unit whether one or two imagers are connected.
H5A Modular Camera Main Unit
(H5A-MOD-2P-X-XX)
Imager Modules
With the modular design of the H5A Modular, either camera module can be connected to the H5A Modular
Camera Main Unit for maximum versatility and optimal installation.
IMAGER PART # FORM FACTOR MP LENS IP66
3C-H5MOD-RP4 Right Angle 3.0 3.7 mm, Fixed Pinhole
3C-H5MOD-MB2 Micro Bullet 3.0 2.8 mm, Fixed ✓
5C-H5MOD-MB2 Micro Bullet 5.0 2.8 mm, Fixed ✓
Camera Main Unit
BASE UNIT PART # DESCRIPTION DAYS OF STORAGE
H5A-MOD-2P-1-30 Modular base unit, supporting 1 lens 30
H5A-MOD-2P-2-30 Modular base unit, supporting 2 lenses 30
H5A-MOD-2P-1-60 Modular base unit, supporting 1 lens 60
H5A-MOD-2P-2-60 Modular base unit, supporting 2 lenses 60
H5A-MOD-2P-1-120 Modular base unit, supporting 1 lens 120
H5A-MOD-2P-2-120 Modular base unit, supporting 2 lenses 120
H5A-MOD-2P-1-365 Modular base unit, supporting 1 lens 365
Camera Cables
CABLE PART # DESCRIPTION
CBL2M-1001 2m (6ft) HD BNC Cable for H5A Modular Camera Imager
CBL5M-1001 5m (16ft) HD BNC Cable for H5A Modular Camera Imager
Optional Mounting Adapters
ADAPTER PART # DESCRIPTION
BRKTMD-1001 Din rail mount for H5A Modular Camera Main Unit
BRKTMD-1011 Replacement L Bracket for Micro Bullet Imager H5A Modular
BRKTMD-1021 Replacement Flat Bracket for Right Angle Imager H5A Modular
BRKTMD-1031 Replacement Trimring Bracket for Micro Bullet Imager H5A Modular
