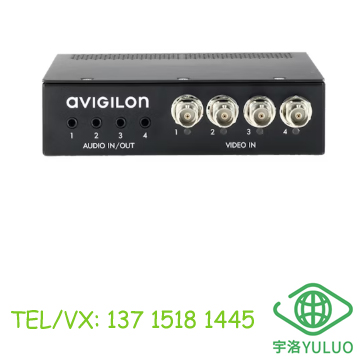

ENC-4P-H264 Avigilon 4-Port Analog Video Encoder
ENC-4P-H264 4-Port H.264 Video Encoder with 4 Audio Inputs and 4 Audio Outputs
ENC-BRK1U 1U EIA (19”) Rack Mountable Bracket for 3 ENC-4P-H264
Experience a seamless transition of your legacy analog cameras to a smart, network-based IP system without compromising security or budget. Upgrade your security system effortlessly with Avigilon’s Analog Video Encoder and take the first step towards a smarter, more secure system.
Audio capabilities
Relay I/O connections
Enhanced protection and unbeatable image quality
Minimize bandwidth and storage requirements while delivering high-quality footage in full resolution up to 30 images per second per analog camera. Enjoy greater coverage and enhanced protection of your property while keeping storage needs to a minimum with the Analog Video Encoder.
Maximum performance with Avigilon Unity Video
Protect your property from anywhere with Avigilon Unity Video. Enjoy remote monitoring and quickly find footage of a person of interest or vehicle using Appearance Search. Improve threat detection with real-time security alerts and never miss a critical moment. Gain superior protection for your site with the power of AI-driven video analytics while keeping costs down with minimal storage needs.
KEY FEATURES
4 video channels
Max resolution 720 x 480 (NTSC) or 720 x 576 (PAL)
30 images per second from each port
H.264 and Motion JPEG compression
Motion adaptive 3D deinterlacing
Support for PTZ and dome cameras via RS-485 interface
Up to 4 privacy zones available per channel
4 audio input channels
4 audio output channels
External I/O terminals
Power over Ethernet, 24 VAC or 12 VDC power input
Automatically connects to Avigilon Control Center NVMS and Avigilon Blue
cloud platform
Rack mount kit allows 3 encoders in 1U of rack space
MECHANICAL Dimensions (LxWxH) 140 mm x 123 mm x 38 mm (5.5” x 4.8” x 1.5”)
Weight 0.62 kg (1.4 lbs)
