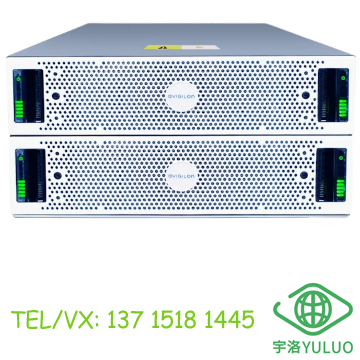

AVA-HED1-751TB AVA-EXP1-263TB Avigilon Video Archive
The Avigilon Video Archive is a scalable storage expansion solution that is fully integrated with Avigilon Control
Center™ software and Network Video Recorders. This cost-effective technology offers an Avigilon-backed solution
that helps deliver a complete, end-to-end video security platform. The Avigilon Video Archive is built on hardware
technology that delivers superior reliability with no single point of failure and near zero downtime, ensuring video
archives are preserved for swift on-demand retrieval and review.
Key Benefits
• Pay as you grow - Scalable from 336TB to 2PB (RAW) per Network Video Recorder with enterprise NL-SAS drives to
cost-effectively grow in lock-step with your organization
• Fully integrated with Avigilon Unity Video and Site Health - Simplifies management of multiple Petabytes of data
and provides system health status in Avigilon Unity Video™ dashboards
• Maximize uptime - Mission critical design with fully redundant architecture that eliminates any single point of
failure
• Prevent data loss - Minimize risk of data loss and non-compliance via erasure coding’s fast rebuild capability,
vastly outperforming RAID alternatives
• Avigilon-backed Support - Up to 5 years of onsite support (Next business day) with “keep-your-drive” warranty that
ensures no drive ever leaves your premises
PRODUCTS
AVA-HED1-225TB Avigilon Video Archive Head Unit, 225TB, 5U, 3-Year Support
AVA-HED1-488TB Avigilon Video Archive Head Unit, 488TB, 5U, 3-Year Support
AVA-HED1-751TB Avigilon Video Archive Head Unit, 751TB, 5U, 3-Year Support
AVA-HED1-XXXTB-5YR Avigilon Video Archive Head Unit, XXXTB, 5-Year Support
AVA-EXP1-263TB Avigilon Video Archive Expansion Unit, 263TB, 5U, 3-Year Support
AVA-EXP1-526TB Avigilon Video Archive Expansion Unit, 526TB, 5U, 3-Year Support
AVA-EXP1-789TB Avigilon Video Archive Expansion Unit, 789TB, 5U, 3-Year Support
AVA-EXP1-XXXTB-5YR Avigilon Video Archive Expansion Unit, XXXTB, 5-Year Support
AVA-HDD1-263TB Avigilon Video Archive, Expansion Disk Pack, 263TB
VIDEO ARCHIVE ACCESSORIES
AVA-SAN-CONNECT-1 Avigilon Video Archive, SAN Networking Kit for Head Unit Connection, 1 cable and 1 transceiver
AVA-SAN-CONNECT-8 Avigilon Video Archive, SAN Networking Kit for Head Unit Connection, 8 cables and 8
transceivers
AVA-WARR-EXTEND-1YR 1-Year Warranty Extension for the Avigilon Video Archive
AVA-WARR-EXTEND-2YR 2-Year Warranty Extension for the Avigilon Video Archive
NVR6 ACCESSORIES
AVA-HED1-NVR6-FORM-H-CONNECT Avigilon Video Archive, Connectivity Kit for NVR6 Premium Plus Form H
AVA-HED1-NVR6-FORM-D-CONNECT Avigilon Video Archive, Connectivity Kit for NVR6 Premium and Standard Form D
NVR6-FORM-H-AVA-SAN-CONNECT Avigilon Video Archive, SAN Networking Connectivity Kit for NVR6 Premium Plus Form H
NVR6-FORM-D-AVA-SAN-CONNECT Avigilon Video Archive, SAN Networking Connectivity Kit for NVR6 Premium and Standard
Form D
NVR6-AINVR2-STD-FORM-D-2NDCPU NVR6 Standard Form D, 2nd CPU Kit (Required for NVR6 Standard Form D with AVA-HED1-
NVR6-FORM-D-CONNECT and NVR6-FORM-D-AVA-SAN-CONNECT)
NVR5 ACCESSORIES
AVA-HED1-NVR5-CONNECT-B Avigilon Video Archive, Connectivity Kit for NVR5 PRM 252/288/360/432TB
AVA-HED1-NVR5-CONNECT-A Avigilon Video Archive, Connectivity Kit for NVR5 STD and NVR5 PRM 96/128/160/192/224TB
NVR5-AVA-SAN-CONNECT-B Avigilon Video Archive, SAN Networking Connectivity Kit for NVR5 PRM 252/288/360/432TB
NVR5-AVA-SAN-CONNECT-A Avigilon Video Archive, SAN Networking Connectivity Kit for NVR5 STD and NVR5 PRM
96/128/160/192/224TB
NVR5-STD-2NDCPU NVR5 Standard, 2nd CPU Kit (Required for NVR5 STD with AVA-HED1-NVR5-CONNECT-A and
NVR5-AVA-SAN-CONNECT-A)
NVR5-PSU-1100W-A1 1100 W hot-swappable power supply for NVR5 STD. 2nd power supply is required to run the
2nd CPU on NVR5 STD.
NVR4X ACCESSORIES
AVA-HED1-NVR4X-PRM1-CONNECT Avigilon Video Archive, Connectivity Kit for NVR4X PRM 64/96/128/157TB, including 2nd CPU
Kit
AVA-HED1-NVR4X-PRM2-CONNECT Avigilon Video Archive, Connectivity Kit for NVR4X PRM 192/217TB
AVA-HED1-NVR4X-STD-CONNECT Avigilon Video Archive, Connectivity Kit for NVR4X STD, including 2nd CPU Kit
NVR4 ACCESSORIES
AVA-HED1-NVR4-CONNECT Avigilon Video Archive, Connectivity Kit for NVR4 PRM and NVR4 STD
HD-NVR4-STD-2NDCPU NVR4 Standard, 2nd CPU Kit (Required for NVR4 STD with AVA-HED1-NVR4-CONNECT)
Power 200~240VAC , 2200W Dual Redundant
Operating Temperature 5°C ~ 40°C (41°F~104°F)
Operating Humidity 10 - 80% (non-condensing)
Dimensions (W×D×H) 482.6mm × 892.2mm × 222.3mm; 19” × 35.12” × 8.75”
Maximum Weight 135 kg; 298 lb
