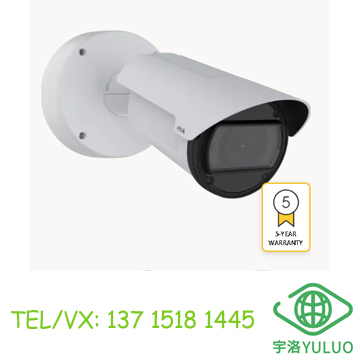

AXIS Q1806-LE Bullet Camera
First-class surveillance in 4 MP with 32x zoom
Outstanding image quality in 4 MP
PoE out to power an additional device
Analytics with deep learning
Optical image stabilization
Axis Edge Vault safeguards the device
This high-performance bullet camera offers 4 MP image quality with 32x optical zoom for great details at any distance. Plus, a deep learning processing unit enables unique opportunities for analytics based on deep learning.
First-class at any distance
With 32x optical zoom, AXIS Q1806-LE can be mounted much further from the scene and still deliver outstanding image quality. With OptimizedIR, you’ll enjoy sharp and clear footage in complete darkness up to 100 m (328 ft) without the need for extra lighting. It includes Axis Lightfinder 2.0 to capture images with more realistic and saturated colors and sharper images of moving objects. And, with Axis Forensic WDR you’re sure to capture high-quality images even when there’s both dark and light areas in the scene. Furthermore, optical image stabilization (OIS) ensures stable images even in low-light situations.
Cost-effective and secure
This easy-to-install camera features IDC network connectors as well as a spacious back box for secure cable management. With PoE out, it can power other devices such as speakers and strobe sirens. Plus, edge-to-edge technology allows speaker pairing. Thanks to Axis Zipstream with H.264/H.265, it significantly reduces bandwidth and storage requirements. Enclosed in a robust aluminum casing, this impact-resistant camera can handle temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). Additionally, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 level 2 certification.
Deep learning analytics
Built on ARTPEC-8, AXIS Q1806-LE features a deep learning processing unit for improved processing capabilities. This allows you to collect and analyze even more data than before - on the edge. It also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. Thanks to AXIS Object Analytics it’s possible to detect and classify moving objects. Furthermore, with support for ACAP version 4, you can add tailor-made applications based on deep learning on the edge available from Axis and our partners.
Technical specifications
DATASHEET (PDF)
Variants: AXIS Q1806-LE
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/1.8"
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.08 lux
Min illumination/ light sensitivity (B/W) 0 lux
Thermal sensitivity (NETD) -
General
Property description Property value
Remote focus Yes
Remote zoom Yes
Built-in IR Yes
OptimizedIR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
Vandal rating IK10 body, IK08 glass
IP rating IP66, IP67
Designed for repaint Yes
Video
Property description Property value
Max video resolution 2880x1620
Max frames per second 90
Day and Night functionality Yes
Electronic image stabilization Yes
Thermal palettes –
Lens
Property description Property value
Focal length 4.3 - 137 mm
Varifocal lens Yes
Aperture 1.4 - 4.0
Horizontal field of view 60 - 2.3 °
Vertical field of view 39 - 1.3 °
Lens mount -
Replaceable lens –
Detection range: Human (1.5px) 0.00 m
Detection range: Vehicle (1.5px) 0.00 m
Pan, Tilt, Zoom
Property description Property value
Digital Pan/Tilt Yes
Pan range -
Tilt range -
Guard tour preset position tour
Optical zoom 32
Digital zoom Yes
Remote PTRZ –
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.
Included
AXIS Image Health Analytics
Ensures image quality for confident monitoring
AXIS Live Privacy Shield
Versatile dynamic privacy masking
AXIS Object Analytics
Suite of AI-based analytics for actionable insights
AXIS Scene Metadata
Actionable insights through scene analysis
AXIS Speed Monitor
Visualize radar data and get actionable insights
AXIS Video Motion Detection
Supported
AXIS License Plate Verifier
Hassle-free license plate recognition
AXIS Perimeter Defender
High-security and long-range perimeter protection
