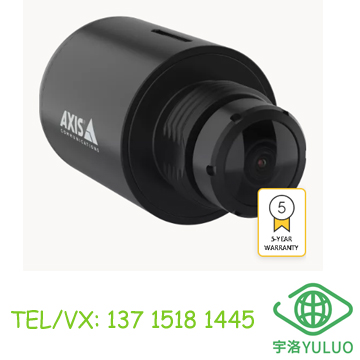

AXIS F2137-RE 5MP Fisheye Sensor
5 MP discreet fisheye sensor
This sensor unit delivers 5 MP and a 185° horizontal field of panoramic view. With a small cylinder-shaped form factor,
it offers discreet installation. Designed to work with AXIS F91 Main Units, it can be combined with up to three other
sensor units for maximum flexibility. Reliable under rough conditions, it has an operating temperature range from -40 °
C to 60°C (-40 °F to 140 °F). It’s compatible with the same accessories as other F21 sensors to simplify procurement,
installation, and upgrade. Furthermore, this rugged sensor features SMA connectors and can withstand shock and
vibration.
> High-quality 5 MP resolution
> 185° horizontal field of view
> Rugged sensor unit with SMA connector
> Can be installed in vehicles and machinery
> IP66-/IP67-/IP6K9K-rated
Compatible Main Units
Select a compatible Main unit according to your needs
AXIS F2137-RE Fisheye Sensor Main units
AXIS F9104-B Mk II Main Unit
AI-based, 4-channel barebone main unit for integration
AXIS F9111-R Mk II Main Unit
AI-based, 1-channel unit for high-vibration environments
AXIS F9114-B Mk II Main Unit
AI-based, 4-channel barebone unit with I/O ports
AXIS F9114-R Mk II Main Unit
AI-based, 4-channel unit for high-vibration environments
Image sensor
1/2.78” progressive scan RGB CMOS
Pixel size 2.0 µm
Lens
Fixed focal, 1.98 mm, F2.0
Horizontal field of view: 185°
Vertical field of view: 125°
Minimum focus distance: 0.3 m (1.0 ft)
M12 mount, fixed iris
Power
Typical 1 W, max 1.8 W
Sustainability
PVC and BFR/CFR free
Connectors
SMA connector
Operating conditions
Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
Humidity: 10–100% RH (non-condensing)
Storage conditions
Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
Humidity: 5–95% RH (non-condensing)
Dimensions
For the overall product dimensions, see the dimension
drawing in this datasheet.
58 mm (2.28 in)
ø 29.8 mm (1.2 in)
Weight
54 g (0.1 lb)
Box content
Sensor, installation guide
Required hardware
AXIS TU6004-E Cable, AXIS TU6005 Plenum Cable,
AXIS F91 Main Unit, AXIS TU6007–E Cable
Optional accessories
AXIS TU6002 Right-angle SMA adaptor
AXIS Site Designer, AXIS Device Manager, product
selector, accessory selector, lens calculator
Available at axis.com
XIS F2137-RE Fisheye Sensor 02869-001
AXIS F2137-RE Fisheye Sensor, 8 pcs 02869-021
