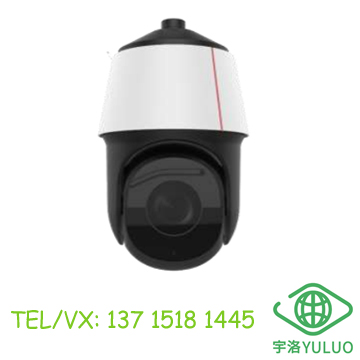

IPC6681-Z20 4K UHD STARSHOT 20x Intelligent Network IR PTZ Dome Camera
Features
4K(3840×2160) Ultra HD, up to 10 MP resolution
A maximum of 30fps stream at 4K with H.265 encoding
Ultra low-light performance by taking advantage of the large 4/3” back-illuminated optical system
Ultra WDR up to 120 dB for superb detail environments with high contrast between light and dark areas
Intelligent infrared technology, more than 200m IR distance
Optical defog technology delivers crystal images when viewing foggy scenes.
Highlight suppression, preserving key information from strong headlights
Intelligent behavior analytics, Face detection
Build-in E-compass indicates the horizontal direction and pitch angle of the PT
Dual-Port Ethernet
Ultra wide operating voltage range: ±25%
IP66 ruggedized housing
Integrated wiper, self-clean window and Intelligent window-defog technology significantly improving visibility in harsh outdoor
environments
Wall-mount
bracket DTS-10C
Indoor pendant-mount
bracket ACC2205H-H
Pole-mount
bracket ACC2306T-P
Corner-mount
bracket ACC2307T-C
Model Item IPC6681-Z20
Camera
Image sensor 4/3" 10 MP progressive scan CMOS
Effective pixels 10 MP(3648×2736), 4K UHD (4096×2160, 3840×2160)
Min. Illumination
Color: 0.012lux (F1.8, AGC ON, 1/25s)
B/W : 0.012lux (F1.8, AGC ON, 1/25s), 0 lux with IR on
Day and night Auto/Color/Monochrome (Infrared-cut filter)
Shutter time 1/3s ~1/68250s
Gain control Auto/Manual
WDR 120dB
BLC Supported
Highlight
suppression
Supported
Image stabilization Electronic image stabilization
Optical Defog Automatic/Manual
White balance Auto/Auto-tracking/Manual/One-off calibration
Digital noise
reduction
2D/3D DNR
IR coverage 200 m
Lens
Focal length(Zoom
Ratio)
14mm ~ 280mm
Zoom Optical zoom:20x, Digital zoom:16x
Angle Field of view
Horizontal: 64.7°(Wide) ~3.6°(Tele); Vertical: 38.9°(Wide)
~2.1°(Tele)
Auto-Iris P-Iris
Pan/Tilt/Zoom
Rotation angle Horizontal: 0° to 360°; Vertical: –20° to +90°
Horizontal rotation
speed
Manual: 0.1°/s to 240°/s ; Preset position: ≥ 240°/s
Vertical rotation
speed
Manual: 0.1°/s to 200°/s ; Preset position: ≥ 200°/s
Preset positions 256
Tour scan 8 scan lines and 32 preset positions for each scan line
Pattern scan A maximum of 5 scan lines
Park Action
Home position, preset position tour, tour recording scan,
horizontal scan, vertical scan, random scan, frame scan, and
panoramic scan
Build-in E-compass
Indicate the horizontal direction and pitch angle of the PT,
automatic calibration of azimuth angle
Integrated wiper Supported
Function
Video compression H.265/H.264/MJPEG
Max. Frame rate 10 MP@25fps, 4K@30/25fps
Video bit rate 32Kbps to 16Mbps
Video function ROI, regional cropping, picture overlay, privacy masks
Audio compression G.711a/G.711u/G.726/OPUS
Stream transmission Treble streams, super error concealment, traffic shaping
System integration ONVIF Profile S/G, Genetec Protocol v1.00, HUAWEI SDK
Network protocol
TCP，UDP，IPv4，IPv6，DHCP，DHCPv6，DNS，ICMP，ICMPv6，IGMP，HTTP，HTTPS，FTP，SFTP，RTP，RTSP，RTCP，SIP，ARP，SSL，NTP，SNMP（V1/V2/V3），802.1x，QoS，DDNS，SMTP
Basic cyber-security
User 3-level authentication, 802.1x authentication, and EAP-TLS,
HTTPS digital certificate, IP address filtering
Media security AES256 encryption algorithm, and Digital Watermark
Intelligent analytics
Fast-moving object detection, Crossing line detection,
abandoned/removed object detection, loitering detection,
intrusion detection, color recognition, vehicle and pedestrian
classification
Intelligent detections
Face detection, motion detection, tampering detection, exception
audio detection, audio loss detection
Alarm actions
External alarm output, SD card recording, snapshot and pre-recording
Interface
RJ-45
interface 1x 10/100/1000 Base-T RJ-45 Ethernet interface
SFP slot 1x SFP slot for SFP fiber optic modules
Dual-Port Ethernet
Support with Ethernet port forwarding between Fiber optic and
Copper ports
Serial interface 1x RS-485 port (PELCO-P/D protocol)
Analog video
interface
1-channel analog video output through the CVBS interface, BNC
connector
Alarm interface 4-channel alarm input and 2-channel alarm output
Audio interface 1-channel audio input and 1-channel audio port
Memory interface 1x MicroSD slot supporting memory card up to 128 GB
General Parameter
Power supply POE++ Adapter, AC24V± 25%, DC36V± 30%, DC48V± 25%
Power consumption Max.70W(Heater and IR enabled)
Operating
environment
Operating temperature : -40℃ ~ 60℃
Relative humidity: less than 95% (non-condensing)
Surge suppression 10kV surge voltage
Protection Rating IP66, IK10 vandal–proof metal casing(except the window)
Anti-corrosion Satisfies 10 days salt spray test, complies with IEC60068-2-11
Net weight 12.50 kg
Physical dimensions Φ290.0×483.6mm
