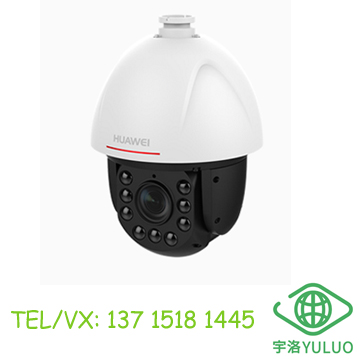

IPC6625-Z30 2MP 30X Intelligent Network IR Speed Dome
Features
H.265, H.264 and MJPEG video compression standard 1080p@60fps
Dual-channel 1080p HD video encoding
Intelligent IR
Ultra WDR 120dB
Highlight suppression
Auto defogging
Gyroscopic image stabilization
Intelligent analytics
IK10 Vandal-proof class
IP66 protection class
Ultra wide operating temperature range -40℃ ~ 60℃
Optional Accessories
Wall-mount bracket DTS-10C
Indoor pendant-mount bracket ACC2205H-H
Pole-mount bracket ACC2306T-P
Corner-mount bracket ACC2307T-C
Model Item IPC6625-Z30 Camera
Image sensor 1/2.8" 2.0 megapixel progressive scan CMOS
Effective pixels 1920(H)×1080(V)
Minimum Illumination
Color: 0.002lux (F1.4, AGC ON);
B/W : 0.001lux (F1.4, AGC ON) ), 0 lux with IR on
Day/Night mode Auto/Color/Monochrome (removable infrared-cut filter)
Electronic shutter
speed 1/100000s to 1s White balance Auto/Auto-Track/Manual//OnePush
Gain control Automatic / Manual
WDR 120dB
Backlight
compensation
Supported
Highlight suppression Supported
DNR Self-adaptive to 2D or 3D DNR
Defog Automatic / Manual
Image stabilization Gyroscopic image stabilization
Intelligent IR Supported
IR coverage 150 meters
Lens
Focal length(Zoom Ratio)
4.5mm ~ 135mm(30x), F1.6 (Wide) ~ F5.0(Tele)
Zoom Optical zoom:30x, Digital zoom:16x
Angle Field of view
Horizontal: 60.89°(Wide) ~2.67°(Tele); Vertical: 37.34°(Wide)
~1.51°(Tele)
Auto-Iris P-Iris
Pan/Tilt/Zoom
Rotation angle Horizontal: 0° to 360°; Vertical: –10° to +90°
Horizontal rotation
speed Manual: 0.1°/s to 240°/s ; Preset position: ≥ 240°/s
Vertical rotation
speed Manual: 0.1°/s to 200°/s ; Preset position: ≥ 200°/s
Preset positions 256
Tour scan 8 scan lines and 32 preset positions for each scan line
Pattern scan A maximum of 5 scan lines
Park Action
Home position, preset position tour, tour recording scan,
horizontal scan, vertical scan, random scan, frame scan, and
panoramic scan
Function Video compression H.265 / H.264 / MJPEG
Max. Resolution 1920×1080
Frame rate 60Hz:60/30/20~1fps / 50Hz:50/25/20~1fps
Multiple streaming Double Full HD(1080p) streams / Treble streams (30fps or 25fps)
Stream packages
Four predefined packages(High quality, Balanced, Low
bandwidth, and Mobile devices) and four customized packages
ISP packages
Five predefined typical scenarios(Outdoor, Indoor, Motion
capture, Low-light, and Backlight mode) and eight user-defined
scenarios.
Audio compression G.711a/G.711u/G.726/OPUS
PU access protocol
ONVIF Profile S/G,GB/T 28181-2014, Genetec Protocol v1.00 and
HUAWEI SDK(private protocol)
Network protocol
TCP，UDP，IPv4，IPv6，DHCP，DHCPv6，DNS，ICMP，ICMPv6，IGMP，HTTPS，FTP，SFTP，RTP，RTSP，RTCP，SIP，ARP，SSL，NTP，SNMP（V1/V2/V3），802.1x，QoS，DDNS
Stream transmission Unicast / multicast
Security mode
User name and password authentication, 802.1x (MD5
Challenge), and HTTPS digital certificate, IP address filtering
Stream encryption AES128/192/256 encryption algorithm, and Digital Watermark
Intelligent Analytics
Tripwire detection, Loitering detection, Intrusion detection,
Abandoned object detection, Removed object detection, Target
color recognition, Humans and vehicles distinguish
Intelligent detection Motion detection, Tampering detection
Alarm actions
Alarm output,PTZ preset,PTZ guard tour, SD card recording and
Snapshot
Interface
Ethernet interface 1x RJ-45 10/100Base-T self-adaptive Ethernet port
Serial interface 1x RS-485 port (PELCO-P/D protocol)
Alarm interface 8-channel alarm input and 2-channel alarm output
Analog video
interface
1-channel analog video output through the CVBS interface,BNC
connector
Audio interface 1-channel audio input and 1-channel audio port,RCA connector
Memory card slot
1x MicroSD/SDHC/SDXC slot supporting memory card up to 64
GB
General Parameter
Power supply DC24V± 20%(self-adaptive polarity), AC24V± 25%
Power consumption Typ.21.9W, Max.62.1W(Heater and IR enabled)
Operating
environment
Operating temperature : -40℃ ~ 60℃
Relative humidity: less than 95% (non-condensing)
Surge suppression 6kV surge voltage, complies with IEC 61000-4-5
IP protection Class IP66, complies with IEC 60529
Vandal–proof Class
IK10 vandal–proof metal casing complying with IEC
62262(except the window)
Anti-corrosion Satisfies 10 days salt spray test, complies with IEC60068-2-11
Net weight 4.50 kg
Gross weight 5.95 kg
Physical dimensions Φ236.0 x 327.1mm
Packing dimensions 295.0 × 295.0 × 460.0mm
