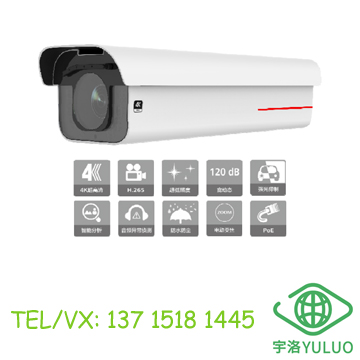

IPC6285-VWZ-LPR 4K Ultra HD Starlight-Level Micro-Mount Network Integrated Camera
Product Features
Up to 10MP video image
Supports 4K@30fps H.265 high compression encoding
4/3” large-area CMOS sensor, starlight-level low-light performance
7x motorized zoom lens with autofocus
Built-in white light fill light, using high-efficiency LED light group, adjustable intensity and angle
4-lane license plate recognition, vehicle color and model recognition, traffic statistics
Motor vehicle, non-motor vehicle, and pedestrian classification and capture
Broadband optimization technologies such as stream smoothing, traffic shaping, TCP intelligent acceleration, and bandwidth adaptation
Independent temperature control management unit for more reliable low-temperature start-up
Ultra-wide operating temperature range of -40℃～60℃
IP66 dustproof and waterproof, IK10 explosion-proof, more reliable for outdoor applications
Integrated wiper in the cover, self-cleaning window, hot air defogging function, all-weather HD visibility
Recommended Accessories
Column mount DTS-11C
3-axis universal joint ACC-B511-D
Technical Specifications
Product Model: IPC6285-VWZ-LPR
Camcorder
Image Sensor: 4/3” 10MP progressive scan CMOS
Effective Image Size: 3840×2160 (4K UHD), 3648×2736 (10MP)
Minimum Illumination: Color: 0.008 lux
Black & White: 0.008 lux, 0 lux (IR enabled)
Day/Night Mode: Auto/Color/Black & White (ICR IR cut-off filter type)
Wide Dynamic Range: 120dB
Technical Specifications
White Balance: Auto/Auto Follow/Manual/One-time Calibration
High Light Suppression: Supported
Electronic Defogging: Auto/Manual
Video Stabilization: 6-axis Electronic Image Stabilization
Digital Noise Reduction: Supports Intelligent Adaptive 2D/3D Noise Reduction
Lens & Light:
Focal Length: 12-84mm, Horizontal Field of View: 74°~11°, Supports AF Autofocus
Maximum Aperture: F1.5
Auto Aperture P-Iris features a built-in supplemental light for 3-4 lanes of traffic, with an optimal illumination distance of 25 meters. The light intensity and angle are adjustable.
Features
Video Compression Formats: H.265/H.264/MJPEG
Maximum Resolution: 10MP (3648×2736, 4:3 mode),
4K UHD (3840×2160, 16:9 mode)
Frame Rate: Up to 25fps for 10MP, up to 30fps for 4K UHD
Multi-Stream: Three streams, sub-streams support 1080p HD encoding
Front-end Access Protocols: ONVIF Profile S/G, GB/T 28181-2014, HUAWEI SDK
Network Protocols: TCP, UDP, IPv4, IPv6, DHCP, DHCPv6, DNS,
ICMP, ICMPv6, IGMP, HTTP, HTTPS, FTP, SFTP RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1x, QoS, DDNS, SMTP
Security Modes: Username and password authentication, supports 802.1x and HTTPS digital certificates
Media Security: AES128/192/256 encryption for the bitstream, supports digital watermarking
Alarm Linkage: Alarm Sources: Intelligent Analysis/Intelligent Detection/Switch Alarm Input/Device Abnormality
Linkage: Switch Alarm Output/SD Card Recording/Capture
Intelligent Analysis: Anomaly Detection: Motion Detection, Occlusion Detection, Scene Change Detection
Professional Intelligence: Vehicle Analysis: License plate recognition for up to 4 lanes, vehicle color recognition, vehicle type recognition, traffic statistics
Motor Vehicle/Non-Motor Vehicle/Pedestrian Detection: Supports classification and capture of motor vehicles, non-motor vehicles, and pedestrians
Interfaces: Network Interfaces: 1 RJ45 Gigabit Ethernet port, supports 10/100/1000M auto-sensing; 1 SFP slot, supports optical/electrical serial connection
Communication Serial Port One RS-485 interface, supporting transparent channels
Alarm interfaces: 2 alarm inputs, 2 alarm outputs
Audio interfaces: 1 audio input, 1 audio output
Storage interfaces: 1 Micro SD card slot, supporting SDHC/SDXC, maximum capacity 128GB
Analog video: 1 CVBS composite analog video signal (BNC interface)
General Specifications
Power Supply: AC24V±25%, PoE++
Power Consumption: Typical 21.0W, Maximum 53.6W
Operating Temperature: -40℃~60℃
Operating Humidity: 5%~95% (non-condensing)
Surge Protection: 10kV surge protection, compliant with IEC 61000-4-5 test standard
Protection Rating: IP66, compliant with IEC 60529 test standard
Explosion Protection Rating: IK10 (excluding the viewing window), compliant with IEC 62262 test standard
Railway Standard: Compliant with trackside electromagnetic compatibility EN50121-4
Weight: Net weight 6.6kg, Gross weight 8.6kg
Dimensions: Equipment 516.0×215.6×159.0mm
Packaging 678.0×329.0×325.00 mm
