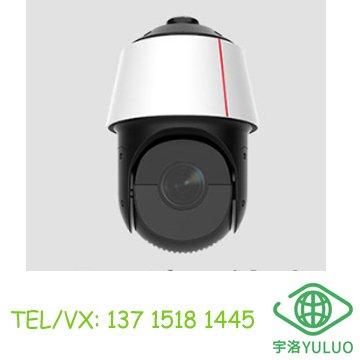

C662D-Z33 2MP Starlight-Level Infrared Dome Camera
Product Features
Features
1/2.7" 2MP CMOS sensor
Supports perimeter intrusion detection, heatmaps, parking detection, etc.
Supports automatic tracking function
Supports image quality diagnostics
Supports stream smoothing to adapt to different requirements for image quality and smoothness in various scenarios
Supports traffic shaping for precise control of instantaneous bursts in video encoding, ensuring smooth video without packet loss
TCP acceleration for higher quality video streams
Huawei C662D-Z33 Image Sensor: 1/2.7" 2MP progressive scan CMOS; Maximum Resolution: 1920×1080; Minimum Illumination: Color: 0.005Lux Black and white: 0.0005 Lux; Focal length: 5-165mm; Optical zoom: 33; Horizontal rotation range: 0°～360°; Vertical rotation range: -15°～90°; Fill light: 150m; Compression encoding: H.265/H.264/MJPEG; Behavior analysis: Supported; Anomaly detection: Supported; 3D positioning: -; Intelligent tracking: Supported; Power supply: AC24V, PoE+ (IEEE 802.3at); Operating temperature: -30℃~60℃; Protection/explosion-proof/lightning protection: IP66, 6KV; 02352RCD PTZ camera 2053-3080 CN: C662D-Z33 02352RCD
Technical Specifications
Product Model: C662D-Z33
Camcorder
Image Sensor: 1/2.7” 2MP CMOS
Effective Image Size: 1920(H)*1080(V)
Minimum Illumination:
Color: 0.005Lux (F1.2, AGC ON, 1/30 shutter speed)
Black & White: 0.0005Lux (F1.2, AGC ON, 1/30 shutter speed)
Day/Night Mode: Auto (ICR)/Color/Black & White
Shutter Speed: 1/3s ~ 1/68250s
Gain Control: Auto/Manual
Wide Dynamic Range: 120dB
Backlight Compensation: Supported, Selectable Area
White Balance: Manual/Auto/Auto Tracking
High Light Suppression: Supported
Image Fog Removal: Auto/Manual
Video Stabilization: Supported
Day/Night Focus Compensation: Supported
Lens & Illumination
Focal Length: 5-165mm
Zoom: 33x optical zoom, 16x digital zoom
Maximum aperture: F1.6
Aperture type: P-Iris
Fitness distance: 150m
Gimbal Rotation angle: Horizontal 0°～360°; Vertical -15°～90°
Horizontal Rotation Speed: Keying Speed: 0.1~160°/s, Preset Speed: 240°/s
Vertical Rotation Speed: Keying Speed: 0.1~120°/s, Preset Speed: 200°/s
PTZ Scanning: Pattern Scan/Limit Scan/Horizontal Scan/Vertical Scan/Random Scan/Frame Scan/Panoramic Scan
Watch: Preset Position/Cruise Track/Pattern Scan/Horizontal Scan/Vertical Scan/Random Scan/Frame Scan/Panoramic Scan
Function: Video Compression Format: H.265/H.264/MJPEG
Maximum Resolution: 1920×1080
Frame Rate: 60/50/30/25fps adjustable
Multi-channel Encoding: Three streams
Intelligent Encoding: Extra265/264
Audio Encoding Format: Supports G.711a/G.711u/G.726/OPUS
Audio Communication: Two-way voice communication, voice broadcasting, in-channel voice
Front-end Access Protocol: ONVIF Profile S/G/T, GB/T 28181 (2011, 2016 protocol specifications), GB 35114-2017, HUAWEI SDK, HUAWEI REST API Network Protocols: TCP, UDP, IPv4, IPv6, DHCP, DHCPv6, DNS, ICMP, ICMPv6, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1x, QoS, DDNS
Security Modes: Username and password authentication, supports 802.1x, HTTPS secure access
Media Security: Supports KMC key encryption, supports SDK stream AES256 encryption
Video Digital Watermarking: Supports fragile digital watermarking (MJPEG not supported)
Alarm Linkage: Alarm Sources: Motion detection alarm/Obstruction alarm/Switch input alarm/Intelligent analysis alarm
Linkage Targets: Switch output/Preset position/Cruise trajectory/Scan/SD card recording/SD card snapshot/Pre-alarm recording
Intelligent Functions
Behavioral Analysis: Rapid movement detection, abandoned objects detection, removal detection, line-crossing detection, intrusion detection, area entry/exit detection, loitering detection
Anomaly Detection: Audio presence/absence detection, audio spike/drop detection, scene change detection, out-of-focus detection, heatmap, crowd gathering
Vehicles: Parking detection
Intelligent Tracking: Panoramic automatic tracking, event-linked tracking, manual tracking
Interfaces
Network Interface: 1 RJ45 10M/100M Ethernet port
Alarm Interface: 2 alarm inputs, 1 alarm output
Audio Interface: 1 audio input, 1 audio output
Storage Interface: MicroSD card slot, supports MicroSDHC/MicroSDXC, supports up to 256GB memory cards
General Specifications
Power Supply: AC24V, PoE+ (IEEE 802.3at)
Power Consumption: Maximum 23W, Typical 9.5W
Operating Temperature and Humidity: -30℃ ~ 60℃
Operating Humidity: 5% ~ 95% (Non-condensing) Lightning protection level: 6kV
Protection level: IP66
Weight: Equipment 4.0kg, Packaging 5.3kg
Dimensions: Equipment 310×201.6×201.6mm, Packaging 400×295×295mm
