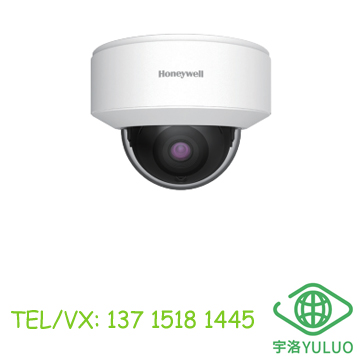

HVCD-5100IV 5MP IR Dome Network Camera
Honeywell’s newly launched high-definition dome network camera integrates world-class imaging and camera technologies with innovative IP networking solutions, delivering 5-megapixel ultra-high-definition video.
As a new-generation network camera from Honeywell, it is designed with user-friendliness in mind, featuring simple installation, operation and maintenance. Equipped with a built-in 2.8 ~ 12mm MFZ motorized zoom lens, users can remotely adjust the lens focal length to achieve the optimal viewing angle directly from the monitoring center. The HVCD-5100IV also captures clear footage even in low-light environments.
This camera supports PoE (Power over Ethernet) compliant with IEEE 802.3af standard. It can be powered via network cables, eliminating the need for separate power adapters and cutting installation costs. To maximize installation flexibility, it also accepts DC12V power supply.
Application Scenarios
Featuring 5MP high-definition video, efficient H.265 compression, PoE power supply and ONVIF protocol compatibility, the HVCD-5100IV can output superb high-definition images even under limited network bandwidth. Thanks to its compact dome design, it is an ideal choice for various security and surveillance applications, widely deployed in indoor and outdoor locations such as roads, airports, schools, shopping malls, hotels and banking branches.
Product Features
1/2.7" Progressive Scan CMOS
Resolution: 2880 × 1620 @25fps; Supports H.265 / H.264 / MJPEG encoding
True Day & Night function
120dB True Wide Dynamic Range (WDR)
ONVIF compliant
2.8mm~12mm motorized zoom lens
IP66 ingress protection & IK10 vandal resistance
Dual power supply: 12VDC / PoE

Item	HVCD-5100IV
Camera
Image Sensor	1/2.7" Progressive Scan CMOS
Minimum Illumination	Color: 0.007Lux@F1.4 (AGC ON); B&W: 0Lux (IR LED on)
Electronic Shutter	1/1s ~ 1/100000s
Day & Night Mode	ICR Infrared Cut Filter
Signal-to-Noise Ratio	50dB
Wide Dynamic Range	120dB
Focal Length	2.8 ~ 12mm, MFZ Motorized Zoom Lens
Viewing Angle	Horizontal: 100° ~ 36.5° Vertical: 52° ~ 20.5° Diagonal: 116° ~ 41°
Aperture	F1.4
IR Illumination Distance	30-50 meters
Angle Adjustment	Pan: 0° ~ 345° Tilt: 0° ~ 77° Rotation: 0° ~ 345°
### Audio & Video Encoding
Video Coding	H.265 / H.264 / MJPEG (Sub-stream only)
Encoding Performance	Main Stream: 25/30fps @ 2880×1620, 2560×1440, 2304×1296, 1920×1080P, 1280×720 Sub Stream: 25/30fps @ 1280×720, 704×576, 640×480, 352×288 Third Stream: 25/30fps @ 704×576, 640×480, 352×288
H.265 Profile	Main Profile
H.264 Profile	Baseline Profile / Main Profile / High Profile
Video Bit Rate	64Kbps ~ 8Mbps
### Audio & Video Functions
Image Enhancement	Backlight Compensation, Strong Light Suppression, 2D/3D Digital Noise Reduction
Image Settings	Brightness, Chroma, Saturation, Contrast, WDR, Sharpness, Noise Reduction, Anti-flicker, Image Flip, Image Mirror, Corridor Mode
ROI (Region of Interest)	Independent setting for each stream
Intelligent Video Analysis	Object Detection, Anomaly Detection, Line Crossing Detection, Intrusion Detection
### Network Functions
Network Protocols	IPv4, IPv6, UDP, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, 802.1x, FTP, UPnP, HTTPS, HTTP, QoS
Integration Protocol	ONVIF (Profile S, G)
Supported Browsers	Chrome, Edge, Firefox
Simultaneous Video Preview	Up to 10 streams
Network Security	Video encryption, Firmware encryption, HTTPS encryption, Configuration encryption, Illegal login lockout, IP address filtering, 802.1x, Digest authentication
### Interfaces
Network Interface	1 × 100M RJ45 Port
Audio Interface	1-channel audio input + Built-in microphone
Local Storage	MicroSD/SDHC/SDXC card slot, Max. 256GB
Hardware Reset	Supported
### General
Power Supply	DC12V / PoE (IEEE802.3af)
Power Consumption	＜ 8.5W
Operating Environment	-30℃ ~ +60℃, Humidity ＜ 95% (Non-condensing)
Storage Environment	-30℃ ~ +65℃, Humidity ＜ 95% (Non-condensing)
Protection Rating	IP66, IK10
Dimensions	Φ141 × 100.2mm
Weight	Approx. 0.91kg

Model	Description
HVCD-5100IV	5MP IR Dome Network Camera, 1/2.7" Progressive Scan CMOS, 2.8~12mm MFZ Motorized Zoom Lens, H.265/H.264/MJPEG, True Day & Night, 30-50m IR Range, 120dB WDR, 25fps@2880×1620, Built-in Intelligent Analysis, Supports 256GB Local Storage, ONVIF compliant, 1-channel audio input & built-in microphone, IP66 & IK10, 12VDC/PoE
