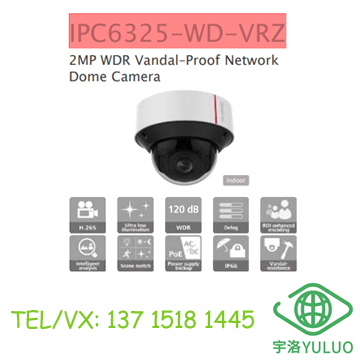

IPC6325-WD-VRZ 2MP WDR Vandal-Proof Network Dome Camera
Features
H.265, H.264 and MJPEG video compression standard Wide dynamic range 120dB
2.8-12 mm Motorized and smart focus
Intelligent analytics
Intelligent IR control
IK10 Vandal-proof class
Railway application standards
DC/AC supply can be hot standby for PoE
Ultra wide operating voltage range up to ± 25%
Ultra wide operating temperature range:-30~60℃
Pendant-mount bracket DTS-08C
Wall-mount bracket DTS-09C
Huawei Intelligent Video Surveillance Product
Model Item IPC6325-WD-VRZ
Camera Image sensor 1/2.8" 2.0 megapixel progressive scan CMOS
Effective pixels 1920(H)×1080(V)
Min. Illumination
Color: 0.02lux (F1.4, AGC ON,1/25)
B/W : 0.012lux (F1.4, AGC ON,1/25)
0 lux with IR on
Day/Night mode Auto/Color/Monochrome(removable infrared-cut filter)
Electronic shutter
speed 1/100000s to 1s
White balance Auto/Auto-Track/Manual//OnePush
Gain control Automatic / manual
Wide Dynamic
Range 120dB (Physical WDR on)
Backlight compensation
Supported  Highlight
suppression Supported
Digital noise
reduction
Self-adaptive to 2D or 3D DNR
Defog Automatic / Manual
IR coverage Max. 30 meters
Lens Focal Length(Zoom
Ratio)2.8-12 mm, 4.3x
Focus Acousto-optic assisted motorized focus
Angular Field of View Horizontal: 106°(Wide) ~ 36°(Tele) / Vertical: 57°(Wide) ~ 20°(Tele)
Auto Iris DC-Iris Aperture f1.4(Max.)
Camera angle adjustmentPan: 0°~356°,Tilt: 0°~75°,Rotation: 0°~ 356°
Video compression H.265 / H.264 / MJPEG
Max. Image Resolution1920×1080
Frame rate 60Hz:60/30/20~1fps / 50Hz:50/25/20~1fps
Video bit rate 32Kbps~16Mbps
Multiple streaming Double Full HD(1080p) streams, Treble streams (30fps or 25fps)
Stream packages
Four predefined packages(High quality, Balanced, Low bandwidth,
and Mobile devices) and four customized packages
ISP packages
Five predefined typical scenarios(Outdoor, Indoor, Motion
capture, Low-light, and Backlight mode) and eight user-defined
scenarios.
Audio compression G.711a/G.711u/G.726/OPUS
PU access protocol
ONVIF Profile S/G,GB/T 28181-2014, Genetec Protocol v1.00 and
HUAWEI SDK(private protocol)
Network protocol
TCP，UDP，IPv4，IPv6，DHCP，DHCPv6，DNS，ICMP，ICMPv6，
IGMP，HTTPS，FTP，SFTP，RTP，RTSP，RTCP，SIP，ARP，SSL，
NTP，SNMP（V1/V2/V3），802.1x，QoS，DDNS
Stream transmission Unicast / multicast
Security mode
User name and password authentication, 802.1x (MD5 Challenge),
and HTTPS digital certificate, IP address filtering
Stream encryption AES128/192/256 encryption algorithm, and Digital Watermark
Intelligent Analytics
Tripwire detection, Loitering detection, Intrusion detection,
Abandoned object detection, Removed object detection, Target
color recognition, Humans and vehicles distinguish
Intelligent detections Motion detection, Tampering detection
Alarm actions Alarm output, SD card recording, and Snapshot.
Interface
Ethernet interface 1x RJ-45 10/100Base-T self-adaptive Ethernet port
Serial interface 1x RS-485 port
Alarm interface 1-channel alarm input and 1-channel alarm output
Analog video
interface
1-channel CVBS output ,BNC connector
Audio interface
1-channel audio input and 1-channel audio port (3.5mm mono
connector)
Memory card slot
1x MicroSD/SDHC/SDXC slot supporting memory card up to 64 GB
General Parameter Power supply
DC12V ± 25%, DC24V ± 25%, AC24V ± 25%, PoE(IEEE 802.3at). DC
supply polarity is self-adaptive, DC/AC supply can be hot standby
for PoE.Power consumption Typ.3.8W , Max.15.4W
Operating entironment
Operating temperature : -30℃ ~ 60℃
Relative humidity: 5% to 95% (non-condensing)
Railway application Complies with EN 50121-4 and EN 50125-3
Surge suppression 4kV surge voltage , complies with IEC 61000-4-5
IP protection class IP66, complies with IEC 60529
Vandal–proof Class IK10, complying with IEC 62262
Anti-corrosion Satisfies 10 days salt spray test, complies with IEC60068-2-11
Net weight 1.0 kg
Gross weight 1.4 kg
