Air cooled protective cover HIGH TEMPERATURE PROTECTIVE COVER

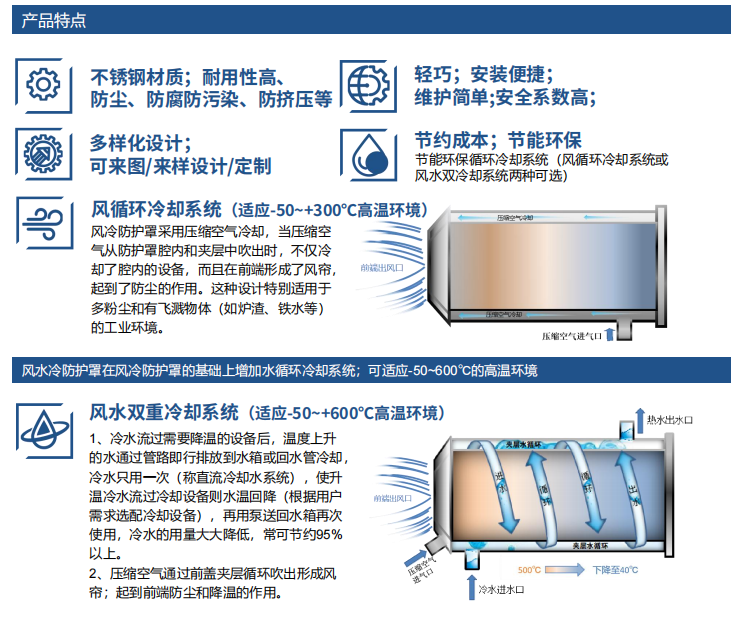

High-temperature protective enclosures are primarily used to protect equipment or components from heat damage in high-temperature environments. They utilize air-cooling and water-cooling systems to dissipate heat. These enclosures are suitable for protecting electronic devices such as cameras and sensors operating in extremely high-temperature environments, such as high-temperature camera protection in steel smelting workshops and other high-temperature settings.
In high-temperature operating environments, these enclosures automatically adapt to fluctuating ambient temperatures and provide continuous cooling, ensuring stable operation. Their dual-cooling function effectively safeguards the safety of workers and monitoring equipment in high-temperature conditions.
They protect against contamination from dust, impurities, and corrosive gases, while also providing vandal-resistant protection tailored to the installation site.
Application Scenarios: Dust-prone areas, spray zones, oil-contaminated areas, corrosive zones, and combustion zones in industries such as metallurgy, building materials, power generation, steel, glass, and solid waste management.
Translated with DeepL.com (free version)

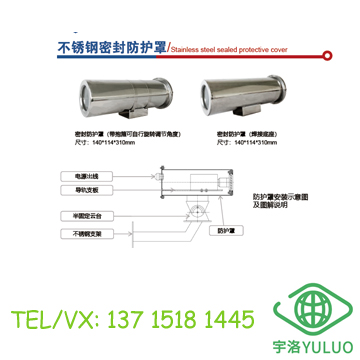

Stainless steel sealed protective cover
Product Features and Specifications
High durability, corrosion resistance, contamination resistance, and crush resistance. Made from high-quality stainless steel (304 or 201, customized according to customer requirements and technical specifications outlined in the contract). The material is typically resistant to coolants, oil, and metal shavings, and can withstand long-term use in harsh industrial environments without deformation.
Diverse designs; custom-made based on drawings or samples in accordance with the contract. Protective covers are available in a variety of designs and sizes to suit different application needs. Designed and customized according to customer requirements; a wide range of customized products is available.
Strong Sealing; High Safety Factor: Minimizes interference from external factors and extends the service life of electronic equipment.
The product’s protection rating typically reaches IP56, and the viewing window is made of clear, transparent safety glass. It offers excellent water resistance. For cameras
Lightweight; Easy Installation; Simple Maintenance
The protective enclosure weighs approximately 2.2–5.5 kg and can support a load five times its own weight. It features a slide-out or flange-connection structure, with the electronic monitoring equipment secured to a “rail support plate” within the assembly; the front-to-back position can be adjusted according to the size of the monitoring equipment. Cable exits use compression nuts to prevent cables from being pulled out; terminal blocks are installed on the rails to facilitate wiring of internal electronic components when needed. Power cables are routed out through two connectors in the rear cover assembly, facilitating installation and maintenance;
Translated with DeepL.com (free version)
Selection and Classification of Protective Enclosures
When selecting a protective enclosure, the following points should be considered based on the installation method and intended application:
1) Installation location and operating temperature: The optimal operating temperature range for a camera is 0°C to 30°C; temperatures outside this range may affect image quality or cause damage.
Selection must account for high- and low-temperature environments, including wind, rain, snow, cold temperatures, dust, and fire.
2) Size Selection: The housing size should be larger than the combined dimensions of the camera and lens; otherwise, the camera and lens will not fit inside.
3) Power Supply: Select a housing with a wiper function and use a decoder or relay to control it.
Dome Housing Installation Diagram
and Illustrated Instructions
Stainless Steel Bracket
Semi-Fixed Pan-Tilt Unit
Power Cable
Rail Support Plate
Dome Housing
Dome housings can be classified into 6 categories:
Sealed Dome Housing, Semiconductor Dome Housing
High-Temperature Dome Housing, Pinhole Dome Housing
Dual-View Dome Housing, Temperature Sensor Dome Housing / Custom Dome Housing
(Heating function can be added)
