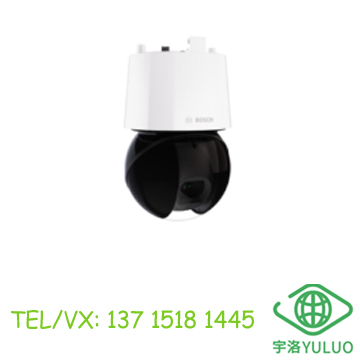

NDP-7802-Z40 PTZ 2MP HDR 40x IP66 pendant
CTN: NDP-7802-Z40 | Product No.: F.01U.419.731
High-performance PTZ with starlight imaging technology and HDR for details in difficult light conditions
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
Built-in artificial intelligence alerts operators of unusual scene activity
Fully configurable quad streaming
Optional direct fiber connection for increased communications security
Key Specifications
Camera functionality Geolocation; Audio detection; Backlight compensation (BLC); Intelligent auto exposure; Contrast enhancement; Sharpness enhancement; Intelligent defog; Pixel counter; Tamper detection; Saturation; Display stamping
Color (lx) 0.0067 lx
Effective pixels (H x V) 1920 x 1080
Ethernet type Auto-sensing; Full / half duplex; 100BASE-TX; 1000BASE-T
Input voltage (VAC) 24 VAC
Lens aperture (/F) 1.60 – 4.95 /F
Lens focal length (mm) 4.25 – 170 mm
Lens zoom (x) 40 x
Material Aluminum
Monochrome (lx) 0.0010 lx
Operating temperature (°C) -40 – 60 °C
Pan range (°) 0° – 360° continuous
Pre-position accuracy (average) (°) 0.10 °
Protocols / standards IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; NTP (SNTP); SNMP (V3, MIBII); DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; UPnP (SSDP); DiffServ (QoS); SOAP; CHAP; Digest authentication; HSTS; RTSPS; MQTT; SRTP
Sensor type 1/2.8 inch CMOS
Storage temperature (°C) -40 – 70 °C
Video compression H.264 (ISO/IEC 14496-10); M-JPEG; H.265/HEVC
Weight (kg) 5.50 kg
Midspan, bt, 60W, indoor
Commercial Type No. NPD-6001C
Product No. F.01U.398.266
Indoor midspan with Power-over-Ethernet for use with PoE-enabled cameras; 60 W, single-port, AC input
Midspan, bt, 60W, IP67
Commercial Type No. NPD-6001C-E
Product No. F.01U.398.267
Outdoor midspan with Power-over-Ethernet for use with PoE-enabled cameras; 60 W, single-port
Midspan, bt, 60W, indoor, industrial
Commercial Type No. NPD-6001-I
Product No. F.01U.398.269
industrial midspan with Power-over-Ethernet for use with PoE-enabled cameras; 60 W, single-port
Wall arm & PSU for AD7100i 24VAC
Commercial Type No. NDA-7100-PA0H
Product No. F.01U.430.208
Wall arm + Power supply unit for AUTODOME 7100i cameras, IK10 rating
24 VAC
Pole mount for midspan, bt, outdoor
Commercial Type No. NDA-6090-PMA
Product No. F.01U.402.626
Pole mount for outdoor PoE midspans NPD-6001C-E / NPD-6001C-EBT and NPD-9001-E / NPD-9001-EBT
Wall arm & PSU for AD7100i 120VAC
Commercial Type No. NDA-7100-PA1H
Product No. F.01U.430.209
Wall arm + Power supply unit for AUTODOME 7100i cameras, IK10 rating
120 VAC
Wall arm & PSU for AD7100i fiber 24VAC
Commercial Type No. NDA-7100-PA0HF
Product No. F.01U.430.211
Wall arm + Power supply unit for AUTODOME 7100i cameras, IK10 rating
24 VAC
Direct fiber connection
Midspan bt 60W indoor industrial TAA
Commercial Type No. NPD-6001-IBT
Product No. F.01U.404.540
industrial midspan with Power-over-Ethernet for use with PoE-enabled cameras; 60 W, single-port
TAA compliant
Wall arm & PSU for AD7100i fiber 120VAC
Commercial Type No. NDA-7100-PA1HF
Product No. F.01U.430.212
Wall arm + Power supply unit for AUTODOME 7100i cameras, IK10 rating
120 VAC
Direct fiber connection
Wall arm & PSU for AD7100i 230VAC
Commercial Type No. NDA-7100-PA2H
Product No. F.01U.430.210
Wall arm + Power supply unit for AUTODOME 7100i cameras, IK10 rating
230 VAC
PSU, IR, 24VAC
Commercial Type No. NDA-U-PSU0H
Product No. F.01U.425.481
Power supply unit without transformer, 24 VAC, IK10, for AUTODOME 7100i IR cameras
Wall arm & PSU for AD7100i fiber 230VAC
Commercial Type No. NDA-7100-PA2HF
Product No. F.01U.430.213
Wall arm + Power supply unit for AUTODOME 7100i cameras, IK10 rating
230 VAC
Direct fiber connection
PSU, IR, 120VAC
Commercial Type No. NDA-U-PSU1H
Product No. F.01U.425.482
Power supply unit, 120 VAC, IK10, for AUTODOME 7100i / -IR and AUTODOME 7100s / -IR cameras
PSU, IR, 230VAC
Commercial Type No. NDA-U-PSU2H
Product No. F.01U.425.483
Power supply unit, 230 VAC, IK10, for AUTODOME 7100i / -IR and AUTODOME 7100s / -IR cameras
Pendant arm fiber AUTODOME 7100i
Commercial Type No. NDA-7100-PENF
Product No. F.01U.395.439
Pendant arm with direct fiber connection for AUTODOME 7100i and AUTODOME 7100i IR cameras
Pendant arm for AUTODOME 7100i
Commercial Type No. NDA-7100-PEN
Product No. F.01U.389.329
Pendant arm mount for AUTODOME 7100i and AUTODOME 7100i IR cameras
Pipe mount for AUTODOME 7100i
Commercial Type No. NDA-7100-PIPE
Product No. F.01U.389.330
Pipe mount for AUTODOME 7100i and AUTODOME 7100i IR cameras
Pipe mount fiber for AUTODOME 7100i
Commercial Type No. NDA-7100-PIPEF
Product No. F.01U.395.440
Pipe mount with direct fiber connection for AUTODOME 7100i and AUTODOME 7100i IR cameras
Mounting plate for NDA-7100-PEN/PENF
Commercial Type No. NDA-PEND-WPLATE
Product No. F.01U.400.682
Mounting plate for NDA-7100-PEN and NDA-7100-PENF for AUTODOME 7100i and AUTODOME 7100i IR cameras
Wall mount plate
Commercial Type No. NDA-U-WMP
Product No. F.01U.324.950
Back plate for universal wall mount, corner mount and pole mount, white, IP66
Pendant pipe mount, 12" (31cm)
Commercial Type No. NDA-U-PMT
Product No. F.01U.324.940
Universal pipe mount for dome cameras, 31 cm, white
Corner mount adapter
Commercial Type No. NDA-U-CMT
Product No. F.01U.324.946
Universal corner mount, white
Pole mount adapter large
Commercial Type No. NDA-U-PMAL
Product No. F.01U.324.944
Universal pole mount adapter, white; large
Pendant parapet mount
Commercial Type No. NDA-U-RMT
Product No. F.01U.324.945
Universal roof mount for dome cameras, white, for outdoor usage
Spare bubble for AUTODOME 7100i IR
Commercial Type No. NDA-7100-CBL
Product No. F.01U.389.331
Replacement bubble for AUTODOME 7100i and AUTODOME 7100i IR cameras
Bubble, clear hydrophilic AUTODOME 7100i
Commercial Type No. NDA-7100-HCBL
Product No. F.01U.425.489
Clear, hydrophilic replacement bubble for AUTODOME 7100i and AUTODOME 7100i IR cameras
Parapet roof mount adapter
Commercial Type No. LTC 9230/01
Product No. F.01U.503.630
Flat Roof Mount Adapter for mounting a unit in an upright position on a flat surface.
IP SECURITY SD CARD 64GB
Commercial Type No. SD-064G
Product No. F.01U.394.677
64 GB industrial SD card with health status monitoring
Bubble, tinted for AUTODOME 7100i
Commercial Type No. NDA-7100-TBL
Product No. F.01U.425.490
Tinted replacement bubble for AUTODOME 7100i and AUTODOME 7100i IR cameras
IP SECURITY SD CARD 128GB
Commercial Type No. SD-128G
Product No. F.01U.394.678
128 GB industrial SD card with health status monitoring
IP SECURITY SD CARD 256GB
Commercial Type No. SD-256G
Product No. F.01U.394.679
256 GB industrial SD card with health status monitoring
IVA Pro Traffic
Commercial Type No. MVC-IVA-TRA
Product No. F.01U.409.538
Video analytics software based on deep neural network technology for traffic monitoring and Automatic Incident Detection.
IVA Pro Appearance
Commercial Type No. MVC-IVA-APC
Product No. F.01U.427.631
Video analytics software based on deep neural network technology for detailed person appearance attributes allowing advanced forensic search.
Weather protector for AUTODOME 7100i
Commercial Type No. NDA-7100-WP
Product No. F.01U.425.533
On-camera weather protector for AUTODOME 7100i and AUTODOME 7100i IR cameras
IVA Pro Intelligent Tracking
Commercial Type No. MVC-IVA-IT
Product No. F.01U.412.107
AI-based Intelligent Tracking and video analytics while the camera is moving for applications in crowds and traffic scenes.
Parts included with this product
Quantity Component
1 AUTODOME 7100i camera
1 Quick Installation Guide
1 Safety instructions
4 MAC address labels
NDP-7802-Z40 PTZ 2MP HDR 40x IP66 pendant
CTN: NDP-7802-Z40 | Product No.: F.01U.419.731
PTZ 2MP HDR 40x IP66 pendant IR
CTN: NDP-7802-Z40L | Product No.: F.01U.419.732
PTZ 8MP 12x IP66 pendant IR
CTN: NDP-7804-Z12L | Product No.: F.01U.419.733
