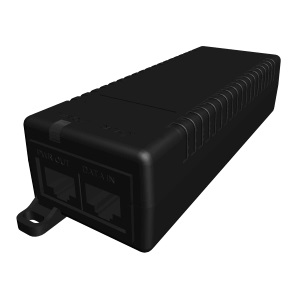

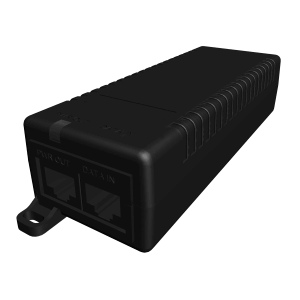

POE130-AT Pelco Single-Port IEEE802.3at Midspan

GIGABIT POWER OVER ETHERNET PLUS
Product Features
• Fully IEEE 802.3at Compliant
• Backward Compatible to IEEE 802.3af Applications
• Guaranteed Output Power of 30 W
• Supports 10/100/1000Base-T Data Rates
• Safe: Low Power Devices Receive Only the Power They Need
• Automatic Detection and Protection of Non-Standard Ethernet
Terminals
• Small and Compact Design
The POE130-AT Power over Ethernet (PoE) single-port midspan is
designed to meet the demanding data rate and power requirements
of IP cameras with high-quality streaming video capabilities. The
PoE+ single-port midspan offers total output power of 30 W, and
meets the IEEE802.3at standard for detection, connection,
disconnection, and fault protection.
The POE130-AT input voltage range is 90 to 264 VAC. Maximum input
current is 1 A (RMS) at 100-240 VAC.
Model Description
POE130-ATUS Single-port PoE+, 30 W midspan, with US power cord
POE130-ATEU Single-port PoE+, 30 W midspan, with European power cord
