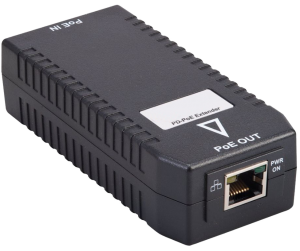

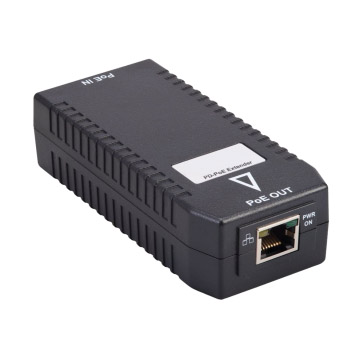

POE130-XT Single-Port PoE Gigabit Extender
EXTENDS POWER OVER ETHERNET AND ETHERNET DATA UP TO 200 METERS
Product Features
• Extend PoE Installation Range by Additional 100 Meters
• Supports 10/100/100 Mbps Data Rates
• Provides 802.3af Power Levels When Powered by Any 802.3at
Source
• Provides 802.3at Power Levels When Powered by PD-9601G/AC
Midspans
• Cost Effective Installation: No Need For Local Power
• Plug and Play Installation: No Configuration Needed
• Fully Compliant 25K Signature Resistance Detection
(IEEE802.3at and IEEE802.3af)
• Boost Circuit to Compensate for Wire Drops
• Extends Ethernet up to 400 Meters (1640.42 Feet) with Cascaded PoE
Extender
The POE130-XT is a single-port Power over Ethernet (PoE) Gigabit
extender that is designed to meet the demanding data rate and
power requirements of IP cameras with high-quality streaming video
capabilities. A single PoE extender can repeat Ethernet up to 200
meters. When cascading three extenders with a PD9601G midspan
injector, Ethernet and PoE can extend up to 400 meters (1640.42 feet)
to an IEEE802.3af device.
The POE130-XT extenders can be cascaded to reach up to 400
meters from the closest datacenter or network closet so you can
easily install IP cameras where you need them. DC input voltage
range is 46 to 57 VDC. DC input current at maximum load is 700mA at
46 VDC. Maximum total output power is 33 W with 50 W 4-pair
IEEE802.3AT input and is 25K signature resistance detection output complian

MODEL
POE130-XT Single-Port PoE Gigabit extender powered by IEEE802.3at source
