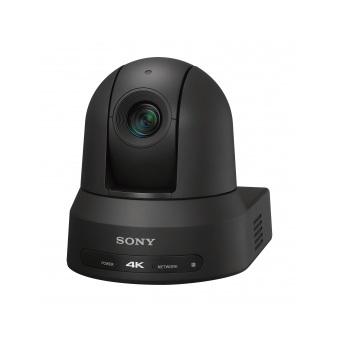

BRC-X400IP 4K Pan-Tilt-Zoom Camera

Brand:SONY

Model:BRC-X400IP

Detail

BRC-X400IP 4K Pan-Tilt-Zoom Camera with NDI HX capability

 Specifications


Camera
Image Sensor
1/2.5 Exmor R CMOS
Image Sensor (Number of Effective Pixels)
Approx. 8.5M pixels
Signal System
2160/29.97p, 25p, 23.98p
1080/59.94p, 50p, 29.97p, 25p, 23.98p
1080/59.94i, 50i
720/59.94p, 50p
4K Capability
Yes (built-in 4K functions)
Minimum Illumination (50IRE)
1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)
Horizontal Resolution
1700 TV lines (Center) (4K)
1000 TV lines or higher (Center) (FHD)
Gain
Auto/Manual (0 to +48 dB) (High Sensitivity On)
Shutter Speed
1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (23.98 Hz system)
1/1 to 1/10000 sec (50 Hz system)
Exposure Control
Auto, Manual, Priority AE (Shutter, Iris)
White Balance
Auto1, Auto2, One Push WB Indoor, Outdoor, Manual
Zoom Capability
30x (4K with CIZ), 40x (HD with CIZ), Max. 80x (HD with CIZ* and Tele Convert Mode)
*CIZ = Clear Image Zoom
Focusing System
Auto/Manual
Horizontal Viewing Angle
Approx. 70° (Wide)
Focal Length
f=4.4 mm (Wide) to 88.0 mm (Tele)
F2.0 to F3.8
Minimum Object Distance
80 mm (Wide)~
800 mm (Tele)
Pan/Tilt Angle
Pan: ±170°
Tilt: +90°/-20°
Pan/Tilt Speed (Max.)
Pan: 300°/s
Tilt: 126°/s
Pan/Tilt Speed
Pan: 1.1° to 101°/s
Tilt: 1.1° to 91°/s
Pan/Tilt Speed (Slow)
Pan: 0.5° to 60°/s
Tilt: 0.5° to 60°/s
Pan/Tilt Slow Mode
Yes
Pan/Tilt Operation Noise
NC30 or less *
* Sony measurement conditions
Preset Position
256 (CGI)
100 (VISCA)
Picture Freeze Preset
Yes
Preset Mode1/Mode2
Yes
PTZ Trace Memory
Yes
PTZ Motion Sync
Yes
Camera Tracking Data Output
Yes (Requires firmware V2.10)
Network
IP Video Resolution
3840x2160, 1920x1080, 1280x720, 720x576, 720x480, 640x360
Compression Format
H.264: High, Main, Baseline Profile
H.265: Main Profile
Maximum Frame Rate
H.264: 60fps
H.265: 60fps
Bitrate Compression Mode
CBR/VBR (selectable)
Range of Bitrate Setting
512 Kbps ~50 Mbps
Multi Streaming Capability
3
Maximum Number of Clients
5
Protocols
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, UPnP, VISCA over IP
NDI®|HX Capability
Yes (requires a license sold separately)
Camera Features
Auto ICR
(Auto mode of IR Cut filter Removal)
Yes
Day/Night
Yes
Visibility Enhancer
Yes
Image Stabilization
Yes
Image Flip
Yes
Picture Setting File
Yes
Picture Profile Preset
Yes
Color Gain
Yes (15 steps)
Color Hue
Yes (15 steps)
Color Matrix
Yes (STD, HIGH SAT, FL LIGHT, MOVIE, STILL, CINEMA, PRO, ITU709, B&W)
Gamma
STD, STRAIGHT, 512 PATTERN, MOVIE, STILL, CINE1, CINE2, CINE3, CINE4
Gamma Level
Yes (15 steps)
Black level
Yes (97 steps)
Black Gamma
Yes (15 steps)
Knee Point
Yes (13 steps)
Knee Slope
Yes (15 steps)
Flicker Cancel
On/Off
Color Bar
On/Off
Color Bar Overlay Name
On/Off
Hide OSD Menu
On/Off
Standby Mode
Yes
Remote Standby
Yes
Web UI
Ver Up
Yes
Audio
Channel
2ch
Audio Codec
AAC LC 128kbps/ST (IP)
AAC LC 256kbps/ST (IP)
Setting Option
Auto Level Control (ALC): On/Off
Equalizer: Off, Low cut, Voice enhancement
Input selection: Microphone/Line
Mic volume: -10~+10 (21 steps)
Audio codec
Embedded Audio in Baseband Video
Yes (3G-SDI, HDMI)
Embedded Audio in IP Streaming
Yes
Interface
4K Video Output
HDMI x1 and IP (streaming) x1
HD Video Output
3G-SDI x1, HDMI x1, IP (streaming) x1
Remote Video Format Switching
Yes
HDMI Color Space
YCbCr, 4:2:2 8 bit
RGB, 4:4:4 8 bit
Camera Control Interface
VISCA RS-422 RJ45 (In/Out)
VISCA over IP RJ-45
S700PTP RJ-45
IR Remote Control
Yes
Microphone Input
Mini-phone (φ3.5mm) x2 (Mic/Line Selectabe)
Sync. System
EXT/INT
External Sync. Input
BNC, 75Ω, HD 3-level sync, SD Black Burst
Tally
Front x 1
Power Connector Type
IEC60130-10 (JEITA standard RC-5320A) TYPE4
General
Power Requirements
DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant)
Power Consumption
25.5 W Max.
Operating Temperature
0 °C to 40 °C
32 °F to 104 °F
Storage Temperature
-20 °C to +60 °C
-4 °F to +140 °F
Dimensions (W x H x D)*1
158.4 x 177.5 x 200.2 mm
6 1/4 x 7 x 8 inch
Mass *1
Approx. 1.8 kg
3 lb 15.5 oz
Camera Body Color
White/Black
Size of Screw Hole for Tripod
1/4-20UNC x1
Mountable Angle
< ±15°
Ceiling Mount
Yes
Supplied Accessories
AC power adaptor (1)
IR Remote Commander Unit (1)
Ceiling bracket (2)
Wire rope (1)
Screw M3 x 8 (9)
Screw M2.6 x6 BLACK (1)
HDMI cable fixing plate (1)
Safety regulation (1)
Download site information (1)
Warranty (1)
Notes
*1
The values for dimensions and mass are approximate
