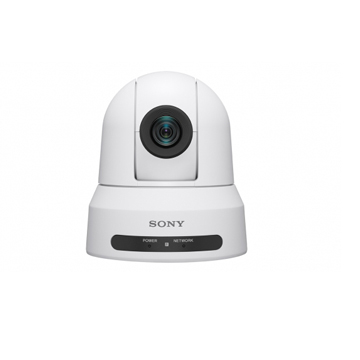

SRG-X400 IP 4K Pan-Tilt-Zoom Camera

Brand:SONY

Model:SRG-X400

Detail

SRG-X400 IP 4K Pan-Tilt-Zoom Camera with NDI HX capability

Specifications


Camera
Image Sensor
1/2.5 Exmor R CMOS
Image Sensor (Number of Effective Pixels)
Approx. 8.5M pixels
Signal System
2160*1 / 29.97p, 25p, 23.98p
1080/59.94p, 50p, 29.97p, 25p, 23.98p
1080/59.94i, 50i
720/59.94p, 50p
4K Capability
Yes (requires 4K optional license)
Minimum Illumination (50IRE)
1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)
Horizontal Resolution
1700 TV lines (Center) (4K*1)
1000 TV lines or higher (Center) (FHD)
Gain
Auto/Manual (0 to +48 dB) (High Sensitivity On)
Shutter Speed
1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (23.98 Hz system)
1/1 to 1/10000 sec (50 Hz system)
Exposure Control
Auto, Manual, Priority AE (Shutter, Iris)
White Balance
Auto1, Auto2, One Push
WB, Indoor, Outdoor, Manual
Zoom capability
30x (4K*1 with CIZ**), 40x (HD with CIZ)
**CIZ = Clear Image Zoom
Focusing System
Auto/Manual
Horizontal Viewing Angle
Approx. 70° (Wide)
Focal Length
f=4.4 mm (Wide) to 88.0 mm (Tele)
F2.0 to F3.8
Minimum Object Distance
80 mm (Wide)~
800 mm (Tele)
Pan/Tilt Angle
Pan: ±170°
Tilt: +90°/-20°
Pan/Tilt Speed (Max.)
Pan: 300°/s
Tilt: 126°/s
Pan/Tilt Speed
Pan: 1.1° to 101°/s
Tilt: 1.1° to 91°/s
Pan/Tilt Speed (Slow)
Pan: 0.5° to 60°/s
Tilt: 0.5° to 60°/s
Pan/Tilt Slow Mode
Yes
Pan/Tilt Operation Noise
NC30 or less*
* Sony measurement conditions
Preset Position
256 (CGI)
100 (VISCA)
Picture Freeze Preset
Yes
PTZ Motion Sync
Yes
Network
IP Video Resolution
3840x2160 *1, 1920x1080, 1280x720, 720x576, 720x480, 640x360
Compression Format
H.264: High, Main, Baseline Profile
H.265: Main Profile
Maximum Frame Rate
H.264: 60 fps
H.265: 60 fps
Bitrate Compression Mode
CBR/VBR (selectable)
Range of Bitrate Setting
512 Kbps ~50 Mbps
Multi Streaming Capability
3
Maximum Number of Clients
5
Protocols
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, UPnP, VISCA over IP
NDI®|HX Capability
Yes (requires a license sold separately)
Camera Features
Auto ICR
(Auto mode of IR Cut filter Removal)
Yes
Day/Night
Yes
Visibility Enhancer
Yes
Image Stabilization
Yes
Image Flip
Yes
Picture Setting File
Yes
Flicker Cancel
On/Off
Hide OSD Menu
On/Off
Standby Mode
Yes
Remote Standby
Yes
Web UI
Ver Up
Yes
Audio
Channel
2ch
Audio Codec
AAC LC 128 kbps/ST (IP)
AAC LC 256 kbps/ST (IP)
Setting Option
Auto Level Control (ALC): On/Off
Equalizer: Off, Low cut, Voice enhancement
Input selection: Microphone/Line
Mic volume: -10~+10 (21 steps)
Audio codec
Embedded Audio in Baseband Video
Yes (3G-SDI, HDMI)
Embedded Audio in IP Streaming
Yes
Interface
4K Video Output
HDMI x1 and IP (streaming) x1 *1
HD Video Output
3G-SDI x1, HDMI x1, IP (streaming) x1
Remote Video Format Switching
Yes
HDMI Color Space
YCbCr, 4:2:2 8 bit
RGB, 4:4:4 8 bit
Camera Control Interface
VISCA RS-422 RJ45 (In/Out)
VISCA over IP RJ-45
IR Remote Control
Yes
Microphone Input
Mini-phone (φ3.5mm) x2 (Mic/Line Selectabe)
Sync. System
INT
Power Connector Type
IEC60130-10 (JEITA standard RC-5320A) TYPE4
General
Power Requirements
DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant)
Power Consumption
25.5 W Max.
Operating Temperature
0 °C to 40 °C
32 °F to 104 °F
Storage Temperature
-20 °C to +60 °C
-4 °F to +140 °F
Dimensions (W x H x D) *2
158.4 x 177.5 x 200.2 mm
6 1/4 x 7 x 8 inch
Mass *2
Approx. 1.8 kg
3 lb 15.5 oz
Camera Body Color
White/Black
Size of Screw Hole for Tripod
1/4-20UNC x1
Mountable Angle
< ±15°
Ceiling Mount
Yes
Supplied Accessories
AC power adaptor (1)
IR Remote Commander Unit (1)
Ceiling bracket (2)
Wire rope (1)
Screw M3 x 8 (9)
Screw M2.6 x6 BLACK (1)
HDMI cable fixing plate (1)
Safety regulation (1)
Download site information (1)
Warranty (1)
Notes
*1
Available after an upgrade via a 4K optional license
*2
The values for dimensions and mass are approximate
