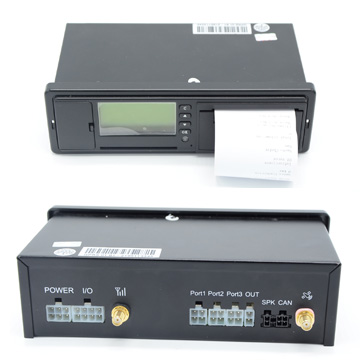

GPS Digital Tachograph YL-D3-2611

Brand:Yuluo

Model:YL-D3-2611

Detail

GPS Digital Tachograph YL-D3-2611 integrated with GPS positioning technology specially designed for vehicle black box record. With build-in printer,

it can print out not only drivers’ but also vehicle’s information, such as driver’s name, speed and the last 10 minutes average speed before accident.

This mostly used in trucks, taxi with ONE Din design which fit for Car standard.
Product Highlights
 Support GPS /BeiDou dual module.
 Two way communication
 Integrated build-in digital audio recording technology to support long-time audio record.
 Built-in LCD display for dispatching or sending SMS even make a calling.
 Build-in printer to print tachograph data.
 Build-in high quality TTS (Text to speech) broadcast speaker.
 Build-in driver ID card slot to support driver identification function.
 Multi-channel for camera to take image and transmission.

Functions
1、 Image function: Multi-channel for real-time image capture, camera recording events with the resolution of 640 × 480 / 320 ×240 / 160×120 can be chosen.
2、 Image transmission function: You can capture and upload pictures alarm through GPRS, transmission rate of 42.8Kbps.
3、 Voice record function: Built-in digital recorder to realize the voice transmission and storage.

4、 GPS Function: GSP location, Geo-fence, GPS mileage statistics, Vehicle pulse mileage statistics, Non-GSM area data storage, history play back and A-GPS function.
5、 Drive recorder function: Build-in LCD display to show vehicle information, driver identification, parameter setting, data export / import, information printing.
6、 Fuel consumption detection: Through RS232 connector, it can connect ultrasonic fuel sensor to get the real-time fuel level consumption.
7、 Communication with add-ons: Front RS232 connector and USB interface for data downloads and device configuration.
8、 iCloud: Support for remote fault diagnosis and debugging, remote automatic program maintenance, remote parameter configuration, remote "iCloud" to protect functions such as terminal operation statistics.
9、 CAN Bus: This function is reserved.

Standard Package
Main Device            1 pc

Driver IC card          2 pcs
GPS Antenna           1 pc

All-in-one configuration cable  1 pcs
I/O cable               1 pcs

Device Holder              1 pcs

Parameters

Device Property



Device

Use Dual-core central processing chip

Design

Battery protection

Circuit protection

Three anti-paint protection

Specification



Working Voltage

936 V/DC

Highest Voltage

100V/DC

Storage Battery Voltage Protect

Lowest8.5V12V Battery or 17V(24V Battery) Highest36V

Anti-reverse Power

100V

Working current

Average:80mA@12V

Saving mode current:60mA

Backup battery

320mAh

Dimensions

189×96×58 mm (L x W x H)

Installing Method

1 DIN Embedded installation on vehicle panel or use external bracket to install it.

Material

Industrial plastic board, Metal Case

Unit net weight

0.85kg

Display



Resolution Ratio

132x64 Monochrome lattice screen

Port



Input

9 route inputs include 1 route impulse mileage level detector

Output

1 route low level: 250 mA @ DC 12V

Speech Interface

1 Build-in microphone;1 route TTS speaker (output)

Data Interface

4 route RS232 port 1 route front,3 route back

1 route USBfront

1 route CANback

SD storage

1 routes front board Micro-SD card slot, maximum capability 128G

IC Card

Build-in IC Card Reader

Environment features



Temperature

Work:  -30 +70

Storage:-40 +85

Humidity

5 95 Non-condensing

Picture Specification



Picture Format

JPEG

Picture Resolution

QVGA320×240VGA640×480

Voice Spec



Format

AMR

GPS Spec



Locating Time

Cold start less 34 sec ,Hot start less 3.5sec ,Moderate Start less 33sec ,

Locating Accuracy

10m 2DRMS

Speed Accuracy

0.1M/sec

Data base accuracy

100M

Flash memory



Blind area storage

Flash memory 1400 pcs locate data

Preset Road record

Flash memory 8 line road data
