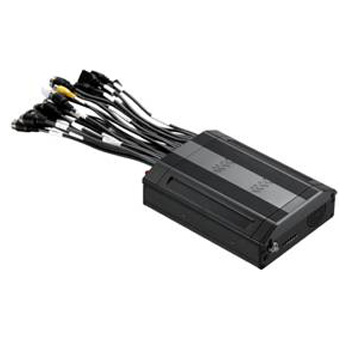

Hard Disk Mobile Digital Video Recorder YL-F8-6805

Brand:Yuluo

Model:YL-F8-6805

Detail

Hard Disk Mobile Digital Video Recorder YL-F8-6805

YL-F8-6805 is a 3G/4G functional Mobile Digital Video Recorder as well as GPS positioning technology specially designed for vehicle video surveillance. It has a high-speed processor and embedded operating system, combining with the most advanced H.264 video compression/decompression technology. It supports 8-channel DVR AHD video monitor with Beidou / GPS dual-mode and high-precision positioning.
Product Highlights
 Supports Hard disk for main recording
 Flash memory up to 10,000 pcs data storage.
 Support 1 route HD video monitor(1080P)
 8 routes of video inputs, 4 routes of audio inputs to realize comprehensive video and audio surveillance.
 Unique design for hard disk protection and file storage to ensure the security of high-capacity data stored in the harsh automotive environment.
 Using 4-grade level of anti-shock protection for hard disk and with triple silicone cover to ensure the security against high frequency vibration and shock.
 Build-in high quality TTS (Text to speech) broadcast speaker.
 WCDMA、EVDO or TD-SCDMA,3 types of 3G GSM module can be choose.
 Build-in module for bus to announce station automatically.
 Supports travel logs/accident questionable information/alarm analysis.
 Multiple intelligence interfaces which can be integrated with the original car data recorder.
 WIFI module for video transmission.(Optional)

Functions
1、 Video function: adopt H.264 video compression technology; image resolution can be D1/Half D1/CIF.
2、 GPS Function: GSP location, Geo-fence, GPS mileage statistics, Vehicle pulse mileage statistics, Non-GSM area data storage, history play back and AGPS function.
3、 Alarm Events:SOS alarm, parking overtime alarm, over speed alarm, fatigue driving alarm, deviation from set route alarm, power failure alarm, low battery alarm, GPS failure alarm, GPS antenna open short circuit alarm, etc.
4、 Road detection functions: yaw, tips and segmentation speed limit alarm, entry / exit station report,
5、 Bus module functions: Adding bus module to enables the vehicle to announce stops, the driver automatically. With the public bus keyboard can be realized: announcement for stops manually, RFID driver attendance management, phone functions; with intelligent public bus announcer can be realized: announcement for stops manually, RFID driver attendance management. Vehicle operational information, route information, speed limit information, company information and calling function.
6、 Route Remote Update: Server sends command to device, it will automatically downloads the route, the line alignment, site Information, broadcast voice, segmented rate limit Update feature.
7、 Multimedia analysis function: video history playback by certain requirements
8、 Multi-server, Multi-IP: supports multiple IP address and can send message as well as the video to multiple servers.
9、 iCloud: Support for remote fault diagnosis and debugging, remote automatic program maintenance, remote parameter configuration, remote "iCloud" to protect functions such as terminal operation statistics.

Standard Package
Main Device            1 pcs

Key for hard disk          2 pcs
GPS and GSM Antenna    1 pcs each

All-in-one configuration cable  1 pcs
I/O cable               1 pcs

Parameters

Terminal Property



Terminal

Use Dual-core central processing chip

Network

EVDO /WCDMA/FDD-LTE/TDD-LTE

Design

Battery protection

Circuit protection

Three anti-paint protection

Specification



Working Voltage

936 V/DC

Highest Voltage

100V/DC

Storage Battery Voltage Protect

Lowest8.5V12V Battery or 17V(24V Battery) Highest36V

Anti-reverse Power

100V

Backup battery

820mAh/3.6V

Dimensions

185×140×53 mm (L x W x H)

GPS Performance



Receiver Type

Channel  50

Frequency  L1

Signals GPS C/A code

Configuration

Time pulse 0.25Hz to 1kHz

Cold Start(Autonomous)

32S

Warm Start(Autonomous)

32S

Hot Start

1S

Aided Start

<3S

Sensitivity

Reacquisitions  -160dBm

Cold Start      -146dBm

Accuracy

Horizontal position   <2.5m Autonomous

                      <2.0m SBAS

RMS  30ns

99%   <60ns

Velocity  0.1m/s

Heading  0.5 degree

Limits

Acceleration  4g

Altitude   50000m

Velocity   500m/s

GSM Performance



Frequency

UMTS/HSPA+ 850/900/1900/2100MHz

GSM/GPRS/EDGE850/900/1800/1900MHz

Data

GSM CS: UL 9.6kbps/DL 9.6kbps

GPRS/EDGE: Multi-slot Class 12, Class B

WCDMA PS: UL 384kbps/DL 384kbps

HSDPA : 21Mbps Downlink (cat 14)

HSUPA: 5.76Mbps Uplink (cat 6)

Class 4 (+33dBm ±2dB) for EGSM/GPRS 850

Class 4 (+33dBm ±2dB) for EGSM/GPRS 900

Class 1 (+30dBm ±2dB) for GSM/GPRS 1800

Class 1 (+30dBm ±2dB) for GSM/GPRS 1900

Class 3 (+24dBm +1/-3dB) for UMTS 2100, WCDMA FDD Band I

Class 3 (+24dBm +1/-3dB) for UMTS 1900, WCDMA FDD Band II

Class 3 (+24dBm +1/-3dB) for UMTS 850, WCDMA FDD Band V

Class 3 (+24dBm +1/-3dB) for UMTS 900, WCDMA FDD Band VIII

Port



Input

13 route inputs include 1 route impulse mileage level detector

Output

3 route low level: 250 mA @ DC 12V

Speech Interface

1 Build-in microphone;1 route TTS speaker (output)

Voice interface

4 route voice inputs

1 route voice output(RCA)

Video Interface

8 route video input(switch to Aviation Plug)

1 route video output(RCA)

Data Interface

4 route RS232 port

2 route USB

2 route RS-485

2 route CAN

1 route RJ45

storage

2.5"SATA Hard Diskx1 (up to 1TB)

Camera power supply interface

8 route 12V/3A port( Aviation Plug)

Environment features



Temperature

Work:  -30 ℃ ~ +70

Storage:-40 ℃ ~ +85

Humidity

5% ~ 95 Non-condensing

Picture Specification



Picture Format

JPEG

Picture Resolution

QVGA320×240VGA640×480

Video Specification



Video Compression Standard

H.264

Picture Format

D1/Half D1/CIF/QCIF

Frame rate

1-25fps

Voice Spec



Format

AMR

GPS Spec



Locating Accuracy

10m 2DRMS

Speed Accuracy

0.1M/sec

Data base accuracy

100M

Flash memory



Blind area storage

1400 pcs locate data

Flash memory

10,000 pcs data storage

Preset Road record

Flash memory 8 line road data
