M13VG555IR Tamron DC Auto Iris 5-55mm CS Lens

Brand:Tamron

Model:M13VG555IR

lens:5-55MM

Detail

M13VG555IR Tamron DC Auto Iris 5-55mm CS Lens

SPECIFICATIONS

			M13VG555IR
Imager Size			1/2.7"
Mount Type			CS
Focal Length			5 - 55mm
Aperture Length			F/1.6 - F/360
Angle of View (Horizontal x Vertical)	1/2.7"	Wide	61.3° x 35.6°
		Tele	6.0° x 3.5°
	1/3"	Wide	56.2° x 32.4°
		Tele	5.5° x 3.2°
Focus Range			2m - ∞
Operation		Focus	Manual w / lock
		Zoom	Manual w / lock
		Iris	DC Auto Iris
Back Focus(in air)			7.69mm (in air)
Wave Length			Visible Light - Near Infrared
Operating Voltage			OPEN : 4.0v CLOSE : 0.5v
Weight			109.6g ±5g
Operation Temperature			-20°C - +60°C

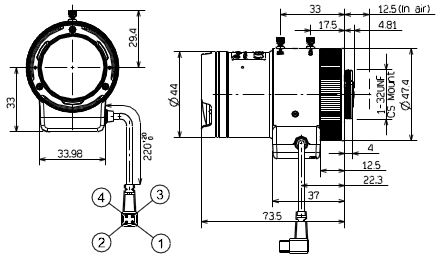

Wiring Disgram
