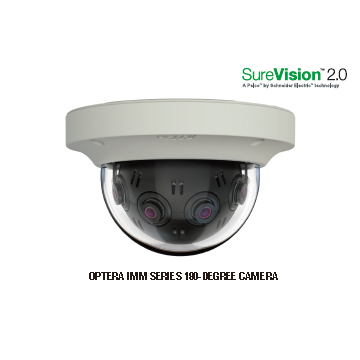

IMM12027-1I 270 panoramic 12MP Network camera
Optera™ IMM Series with SureVision™ 2.0
180°, 270°, 360° PANORAMIC, 12 MPX IP CAMERAS
Product Features
• Constant, seamless situational awareness
• Zoom in for detail live or retrospectively with client-side dewarping
• Multiple immersive PTZ views at video management system (VMS)
• Up to 12 Megapixel (4 x 3 MPx) resolution for better detail at a distance
• Up to 30 frames per second (fps)
• Outstanding WDR and low-light performance at the same time
• Pelco H.264 Smart Compression Technology
• Eight Pelco video analytic behaviors
• Local storage (Micro SD)
• Pelco Camera Link
• ONVIF Profile S, Profile G, and Profile Q conformant
• Compatible with Pelco VideoXpert™, VideoXpert™ Professional, Digital Sentry®, Endura™ (In Tiled Mode), and third-party VMS partners
• Power over Ethernet Plus (PoE+)
SYSTEM MODEL NUMBERS
IMM12018-1I
IMM12018-B1I
IMM12018-1S
IMM12018-B1S
IMM12018-1P
IMM12018-B1P
IMM12027-1I
IMM12027-B1I
IMM12027-1S
IMM12027-B1S
IMM12027-1P
IMM12027-B1P
IMM12036-1I
IMM12036-B1I
IMM12036-1S
IMM12036-B1S
IMM12036-1P
IMM12036-B1P
IMM12036-1EP
COMPONENT MODEL NUMBERS
Back Box
IMMBB0-S Surface, indoor vandal, white
IMMBB0-BS Surface, indoor vandal, black
IMMBB0-ES Surface, environmental vandal, gray
IMMBB0-P Pendant, indoor vandal, white
IMMBB0-BP Pendant, indoor vandal, black
IMMBB0-EP Pendant, environmental vandal, gray
IMMBB0-I In-ceiling, indoor vandal, white
IMMBB0-BI In-ceiling, indoor vandal, black
IMMBB0-EI In-ceiling, environmental vandal, gray
Camera Base Module
IMM12018-BASE Indoor vandal, 180°
IMM12018-E-BASE Environmental vandal, 180°
IMM12027-BASE Indoor vandal, 270°
IMM12027-E-BASE Environmental vandal, 270°
IMM12036-BASE Indoor vandal, 360°
IMM12036-E-BASE Environmental vandal, 360°
Lower Dome
IMMLD0-1 Indoor vandal, white trim, clear bubble
IMMLD0-B1 Indoor vandal, black trim, clear bubble
IMMLD0-1E Environmental vandal, gray trim,clear bubble
IMMLD0-0 Indoor vandal, white trim, smoked bubble
IMMLD0-B0 Indoor vandal, black trim, smoked bubble
IMMLD0-0E Environmental vandal, gray trim, smoked bubble
RECOMMENDED MOUNTS
IMM-PNL 2' x 2' drop ceiling panel; replaces 2' x 2'
ceiling tile, white
IMM-CM Corner mount (outer) for use with WMVE-SR
wall mount
IMM-DF5 DF5 kit for existing indoor DF5 enclosures
WMVE-SR Environmental vandal, pendant wall mount,gray
WMVE-WT/BK Indoor vandal, pendant wall mount, white/black
PA101 Pole adapter for use with WMVE-SR wall mount
OPTIONAL ACCESSORIES
POE1AT, POE4ATN, 1, 4, 8, and 16
POE8ATN, POE16ATN Channel PoE midspan
EC-3000C/U Series Ethernet over copper (EoC) extenders with
true PoE+ to 30 W
EC-4BY1SWC/U Series 4-port, self managed, PoE+ switch with
extended uplink
