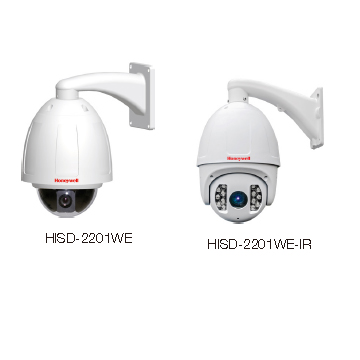

Honeywell HISD-2201WE speed dome and HISD-2201WE-IR IR speed dome
combines world-class imaging and advanced IP camera technology, providing
streaming images in 1080P at full frame rate. With an IP66 and IK-10 housing
(HISD-2201WE), these speed domes are ideal for advanced surveillance
monitoring indoor or outdoor.
Featuring 360° continuous rotation, 20x zoom and vari-focal auto-focus lens, the
HISD-2201 series speed domes deliver a full picture of the area under surveillance
in optimal width and depth. True Day/Night (TDN) and Wide Dynamic Range (WDR)
are ideal for areas where there is high illumination contrast between background
and foreground. The High Light Compensation (HLC) function detects, masks
and blocks glares automatically, making the image quality of the surroundings
unaffected and remains visible and clear. It is particularly useful for surveillance at
car park entrances and highways.
HISD-2201WE-IR is equipped with 14 IR LEDs which beam up to 100m from the
camera to provide useable black and white videos. This IR speed dome is ideal
for monitoring areas in low illumination or complete darkness. IR beam angle can
be adjusted to coincide with the angle of lens for best IR performance.
Market Opportunities
Integrated with the latest PTZ technologies and outstanding design, the
HISD-2201WE and HISD-2201WE-IR are ideal image capturing solutions for
security and surveillance applications where detailed surveillance is required,
such as governments, railways, metro, airports, ports, national defense, campus,
squares, stadiums, parks, scenic areas, communities and industrial environments,etc.
FEATURES
• 1080P high definition
• 20x, TDN, WDR, HLC, 3DNR
• Electronic image stabilization
• H.264 High Profile / MJPEG, VBR / CBR, dual streams
• Motion detection, network fail detection, privacy zones
• Pan: 360° continuous rotation; Tilt: 0° - 90°rotation; 256 presets, no blind spot
• IR beam distance up to 100m with high-powered IR array (HISD-2201WE-IR)
• 2 alarm input and 1 output, SD card support, RS-485, audio input and output,analog video output
• Edge storage - 32G
• IP66; IK-10 vandal proof (HISD-2201WE)
• ONVIF Profile S
ORDERING
HISD-2201WE 1080P IP PTZ, 20X, H.264 High-profile, TDN, WDR, HLC, wall mounting bracket,Edge storage 32G, ONVIF Profile S, PoE, IP66, Vandal-proof IK10, AC24V
HISD-2201WE-IR 1080P IP PTZ, 100m IR distance, 20X, H.264 High-profile, TDN, WDR, HLC, wall mounting bracket, Edge storage 32G, ONVIF Profile S, IP66, DC12V
HSDFM3 Flush Mounting Bracket
