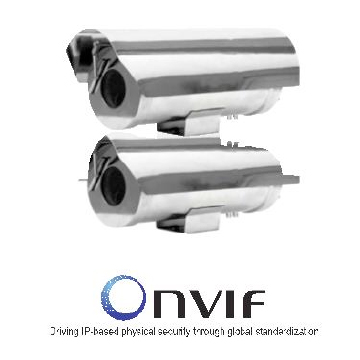

HEICC-2301T HD 1080P Integration Explosion-proof Network Cameras

Honeywell HEICC-2301T is an IP explosion-proof fixed camera featuring
superior 1080P high definition image quality and True Day/Night functions.
Complied with international explosion protected equipment standards
ATEX*, and rated IP68 waterproof standard, this advanced IP camera is
designed for installation in potentially explosive atmospheres, such as
petrochemical fields, oil refineries, LNG facilities and so forth.
The HEICC-2301T delivers high definition images of 1080p (1920 x 1080)
resolution at up to 30 frames per second. The True Day/Night function with
an IR-cut filter guarantees superior image quality at both bright and dim
conditions. By applying the H.264 video compression technology, the
HEICC-2301T streams high quality images at optimized bandwidth which
reduce data volume effectively to save storage space.
The viewing window is made of filming tempered glass with an integrated
wiper to ensure clear and detailed images can be captured any time even in
hazardous locations.
Market Opportunities
Assembled with a rigid enclosure, the HEICC-2301T delivers a highdefinition
1080P video surveillance solution for security applications used in
potentially explosive atmospheres. Also featuring 1080P resolution, True
Day/Night, H.264 compression and ONVIF standard, the HEICC-2301T
provides optimum surveillance performance in oil refineries, chemical
plants, coal mines and so on.
FEATURES
• 1080P resolution at up to 30 fps
• True Day/Night with IR-cut filter
• ATEX II 2 GD; Exd IIC T6 Gb, Ex t IIIC T80°C Db
• Stainless steel 316L; Waterproof IP68 rating
• Multiple H.264 streams and MJPEG streams ensure simultaneous real-time monitoring and high resolution recording
• H.264 main profile helps save network bandwidth and storage resources
• Motion detection (4 zones); Privacy masking (4 zones)
• Built-in wiper on the lens cover to remove condensed water
• Built-in heater to prevent condensation
• IP platform: Honeywell Universal Surveillance (HUS)
• ONVIF compliance
Accessory
HEICC-WM
HEICC-2301T Explosion-proof Camera Wall mount
ORDERING
HEICC-2301T-12 1080P Explosion-proof Fixed Camera, IP68, True Day/Night, ONVIF, 12mm Lens
HEICC-2301T-16 1080P Explosion-proof Fixed Camera, IP68, True Day/Night, ONVIF, 16mm Lens
HEICC-2301T-25 1080P Explosion-proof Fixed Camera, IP68, True Day/Night, ONVIF, 25mm Lens
HEICC-2301T-35 1080P Explosion-proof Fixed Camera, IP68, True Day/Night, ONVIF, 35mm Lens
HEICC-2301T-5V50 1080P Explosion-proof Fixed Camera, IP68, True Day/Night, ONVIF, 5-50mm Vari-focal Lens
HEICC-WM HD Explosion-proof Camera Wall mount bracket, Stainless Steel
