AXIS M7116 视频编码器
具有 Zipstream 的经济高效的 16 通道视频编码器
所有 16 个通道上 30 fps
云台控制
支持 H.264/H.265 的 Zipstream
签名固件和安全启动
支持智能分析
借助 AXIS M7116，您可以按照自己的节奏迁移到 IP 监控。这款经济高效的 16 通道视频编码器支持所有类型的标准分辨率模拟摄像机，包括 PTZ（平移/倾斜/变焦）摄像机。它支持智能分析以及内置的网络安全功能。

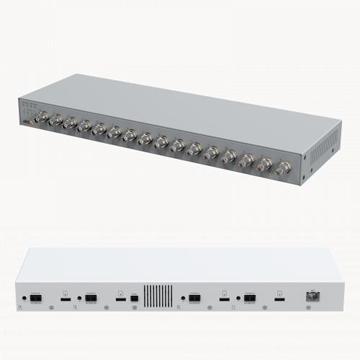

m7116 背面
物超所值
这款 16 通道视频编码器可将 NTSC/PAL 视频数字化，并在所有通道上以每秒 30 帧的速度提供高质量视频。它提供远程访问，允许您在任何浏览器或计算机上查看视频流。此外，RS-485 端口可让您控制模拟 PTZ（平移/倾斜/变焦）摄像机。内置 SD 存储卡插槽允许边缘存储。AXIS M7116采用支持 H.264/H.265 的 Zipstream，大大降低了带宽和存储要求。此外，这款紧凑型编码器采用机架安装方式，可将大量模拟摄像机和音频通道集成到基于 IP 的高密度视频监控系统中。
蓝色的代码
无缝迁移到 IP 监控
AXIS M7116 让您可以按照自己的节奏转移到 IP 监控领域，同时保护您在模拟设备上的投资。该编码器建立在一个开放平台上，可以使用您选择的供应商提供的开放标准 IT 硬件或视频管理软件。它包括智能分析，例如运动检测。而且，如果您将它与 AXIS Camera Station 视频管理软件一起使用，您只需一个许可证即可用于所有 16 个通道。
一流的轴品质
这款可靠的编码器具有内置的 网络安全功能，有助于防止未经授权的访问并保护您的系统。它比通常缺乏这些类型的网络安全功能的 DVR 更安全。Axis Edge Vault保护您的 Axis 设备 ID 并简化网络上 Axis 产品的授权。此外，签名固件和安全启动保证固件没有被破坏，并确保只安装授权固件。如果需要，安全启动可确保设备完全没有恶意软件，即使在出厂默认设置后也是如此。此外，得益于持续的固件更新，您始终可以依靠安讯士获得一流的质量和支持。
AXIS M7116 CN 02036-009
AXIS M7116 AR 02036-008
AXIS M7116 KR 02036-007
AXIS M7116 AU 02036-006
AXIS M7116 JP 02036-005
AXIS M7116 US 02036-004
AXIS M7116 UK 02036-003
AXIS M7116 EU, IN 02036-002
System on chip (SoC)
Model ARTPEC-7
Memory 1024 MB RAM, 512 MB Flash
Battery backed-up real-time clock
Video
compression
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High profiles
H.265 (MPEG-H Part 2/HEVC) Main profile
Motion JPEG
Resolution 176x144/176x120 (PAL/NTSC) to 720x576/720x480 (PAL/NTSC)
Frame rate 25/30 fps in all resolutions
Up to 30 fps in quad view in full resolution
Video streaming Multiple, individually configurable streams in H.264, H.265 and
Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264/H.265
Quad view Image settings Rotation: 0°, 90°, 180°, 270°, de-interlace filter, compression,
color, brightness, contrast, aspect ratio correction, mirroring of
images, text and image overlay, polygon privacy mask, video
termination, sharpness, noise reduction
Network IP address Four IP address, one per four channels
Security Password protection, IP address filtering, HTTPSaencryption,
IEEE 802.1x (EAP-TLS)a, network access control, digest
authentication, user access log, multi-level user, brute force
delay protection, signed firmware, secure boot, Axis Edge Vault
with Axis device ID
Supported
protocols IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , TLSa , QoS Layer 3
DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®,SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP,
SRTP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, CDP, MQTT v3.1.1System integration
Application Programming Interface
Open API for software integration, including VAPIX® and
AXIS Camera Application Platform; specifications at axis.com
One-click cloud connection
ONVIF® Profile G, ONVIF® Profile S, and ONVIF® Profile T,
specification at onvif.org
Event conditions Device status: IP address removed, network lost, new IP address,
storage failure, system ready
Edge storage: recording ongoing, storage disruption
I/O: manual trigger, virtual input
MQTT subscribe
PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position
reached, PTZ ready
Scheduled and recurring: scheduled event
Video: average bitrate degradation, live stream open, tampering
Video encoder: video connected
Event actions Guard tours, upload of images or video clips, notification, overlay
text, preset positions, recordings, SNMP trap messages, status
LED, video clips
MQTT publish
Data streaming Event data
Applications Included
AXIS Video Motion Detection, active tampering alarm
Support for AXIS Camera Application Platform enabling
installation of third-party applications, see axis.com/acap
General
Casing Metal casing 1U stand alone, rackmount or wallmount
Color: white NCS S 1002-B
Sustainability PVC free Power max 26 W
Connectors 16 pcs analog video BNC inputs
1 pc 1000 BASE-TX Ethernet (RJ45)
4 pcs terminal block for RS485/RS422 serial communication (full duplex)
1 pc DC input terminal block Storage Support for microSD/microSDHC/microSDXC card and encryption
Recording to network-attached storage (NAS)
For SD card and NAS recommendations see axis.com
Operating
conditions 0 °C to 50 °C (32 °F to 122 °F)
Humidity 10–85% RH (non-condensing)
Storage conditions -40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5-95% RH (non-condensing)
Approvals EMC EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55035,
EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A,
ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A,
KC KN32 Class A, KC KN35
Safety IEC/EN/UL 62368-1
Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
IEC 60068-2-27, IEC 60068-2-78
Network NIST SP500-267
Dimensions 44 x 145 x 440 mm (1.7 x 5.7 x 17.3 in)
Weight 2050 g (4.5 lb)
Included accessories
Installation guide, Windows® decoder 1-user license, DC input
plug, 8 pcs 2-pin RS485/RS422 plugs, mains power supply,
mounting and connector kit
Optional accessories For accessories, see axis.com
Video management software
AXIS Companion, AXIS Camera Station, video management
software from Axis Application Development Partners available at axis.com/vms
Languages English, German, French, Spanish, Italian, Russian, Simplified
Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese
