AXIS T94P01L 安讯士M55系列球机嵌入式支架

Outdoor mount for AXIS M55 Series
Indoor and outdoor use
Suitable for plenum spaces

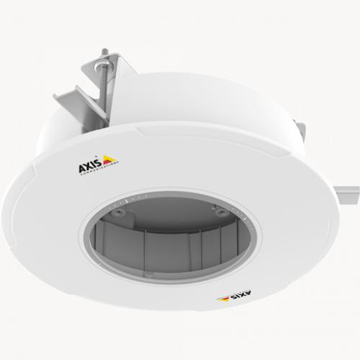

AXIS T94P01L Recessed Mount is compatible with AXIS M55 Series. The metal back box with a ¾-inch hole for cable protection conduits makes the mount suitable for installations in plenum spaces.
General
Supported
products
AXIS M5525–E PTZ Network Camera
Casing Material: aluminum, plastic
Color: white NCS S 1002–B
Sustainability PVC free
Mounting Recessed in drop ceilings, ceiling tiles, roof overhang/soffit
Environment Outdoor/indoor
Cable routing Top: 3/4” conduit entrance
Approvals Safety
IEC/EN/UL 62368-1, IEC/EN/UL 60950-22
Environment
IEC 60068–2–27, IEC 60068–2–6, IEC 60068–2–75,
IEC 62262 IK09

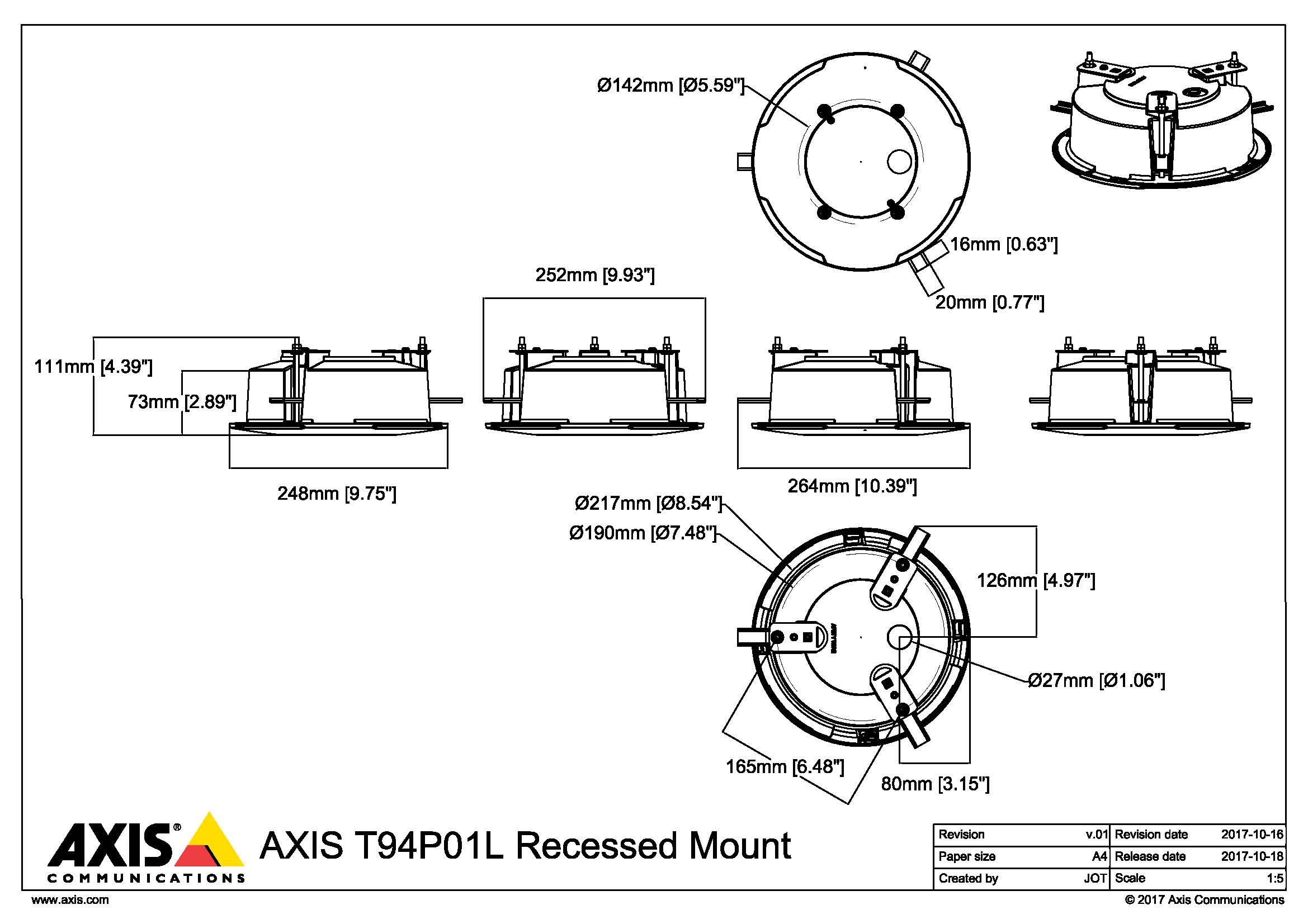

Dimensions Height inside ceiling/wall:
97.5 mm (3 27/32 in)
Height outside ceiling/wall (including camera):
14 mm (35/64 in)
Diameter outside ceiling/wall:
ø 248 mm (9 49/64 in)
Diameter cut-out in ceiling/wall:
ø 215 mm (8 15/32 in)
Weight 1100 g (2.4 lb)
Maximum load 4500 g (9.9 lb)
Included
accessories
Installation Guide
Optional
accessories
AXIS Safety Wire 3m
