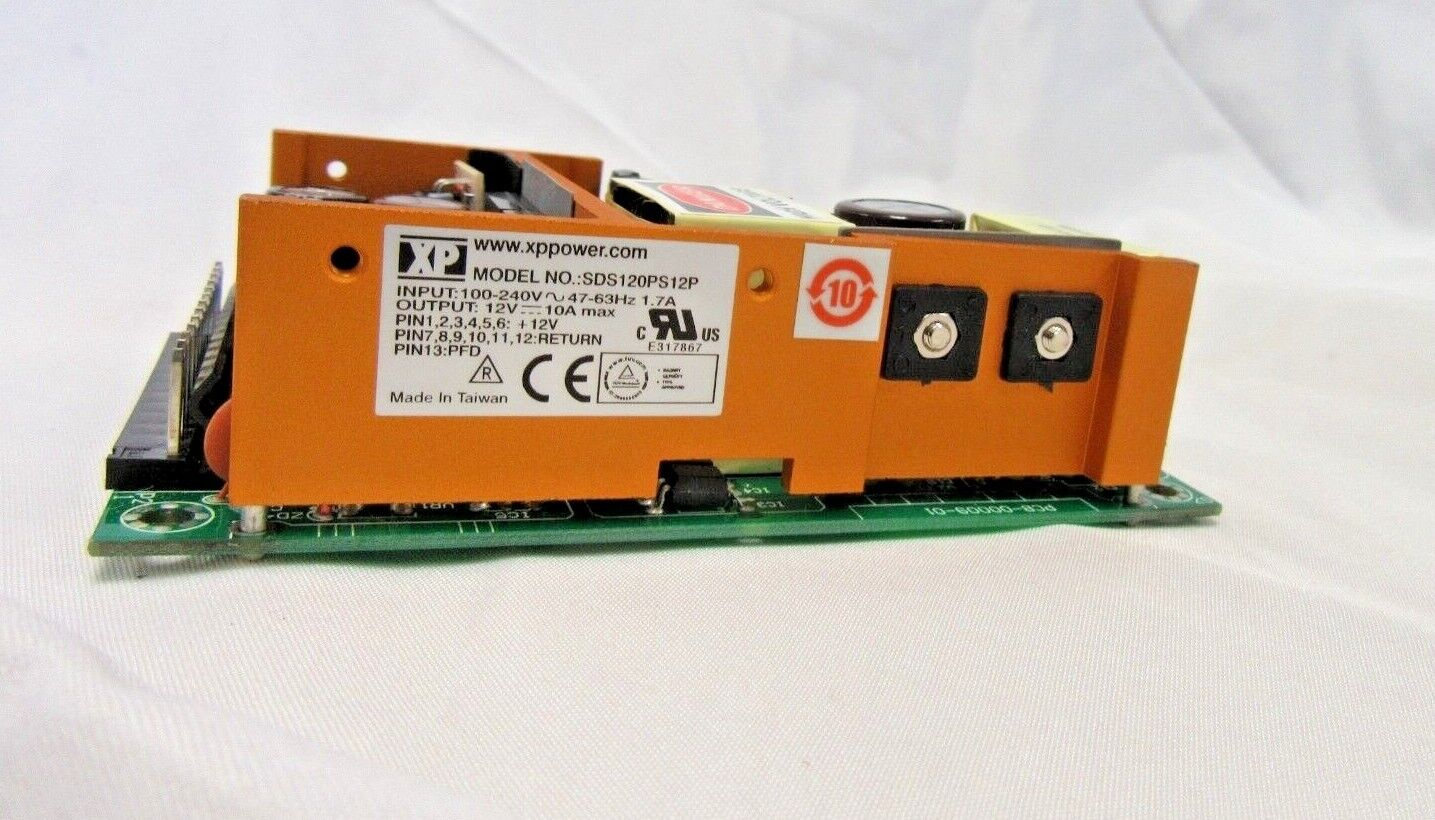

SDS120PS12P SDS Series xppower电源模块
Convection-cooled
3”x 5”Footprint
Up to 90% Efficiency
Open Frame, U-Channel & Covered Versions
Low Temperature Option
Single & Multi Outputs
Specification
Input
Input Voltage•90-264 VAC (120-370 VDC)
Input Frequency•47-63 Hz
Input Current•120 W: 1.7 / 1.0 A max at 115 / 230 VAC 150 W: 2.0 / 0.8 A max at 115 / 230 VAC
Inrush Current•120 W: 20 / 51 A max at 115 / 230 VAC 150 W: 54 / 63 A max at 115 / 230 VAC
Power Factor•>0.9
Earth Leakage Current•120 W: 0.30 / 0.75 mA at 115 / 230 VAC 150 W: 0.40 / 0.75 mA at 115 / 230 VAC
Input Protection•Internal T3.15 A / 250 VAC fuse in line
SDS120PS03B
SDS120PS12B
SDS120PS18B
SDS120PS24B
SDS120PS28B
SDS120PD00B
SDS120PD01B
SDS120PD02B
SDS120PD03B
SDS120PD04B
SDS120PD05B
SDS120PD06B
SDS120PT01B
SDS120PT02B
SDS120PT03B
SDS120PT04B
SDS120PT05B
SDS120PT06B
SDS120PT07B
SDS120PT08B
SDS120PT10B
SDS120PT11B
SDS120PT12B
SDS120PT13B
SDS120PT14B
SDS120PT15B
SDS120PT16B
SDS120PT17B
