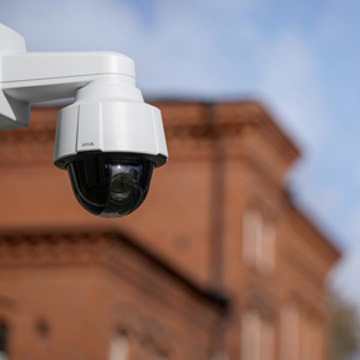

AXIS P5676-LE 02413-001 400万红外网络摄像机
High-performance 4 MP PTZ with IR
4 MP with 30x optical zoom
Forensic WDR, Lightfinder 2.0, IR Illumination
Support for advanced analytics
Built-in cybersecurity features
Zipstream with support for H.264/H.265
Technical specifications
Models: AXIS P5676-LE 60 Hz / AXIS P5676-LE 50 Hz
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/2.9
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.11 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
General
Property description Property value
Built-in IR Yes
OptimizedIR Yes
Local storage (memory card slot) Yes
Operating temperature -30 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66
Designed for repaint Yes
Analytics
Property description Property value
Autotracking version Autotracking 2
Orientation aid orientation aid PTZ
Video
Property description Property value
Max video resolution 2688x1512
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization Yes
Lens
Property description Property value
Focal length 4.6-133 mm
Horizontal field of view 57.1-2.1 °
Vertical field of view 34.4-1.2 °
Pan, Tilt, Zoom
Property description Property value
Pan range 360 endless
Tilt range 0-90
Guard tour limited guard tour
Optical zoom 30
Digital zoom 12
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
Built-in microphone –
System Integration
Property description Property value
Audio detection Yes
Active tampering –
Alarm inputs/outputs 4
Network
Property description Property value
PoE Class 6
Security
Property description Property value
Signed firmware Yes
Secure boot Yes
TPM –
