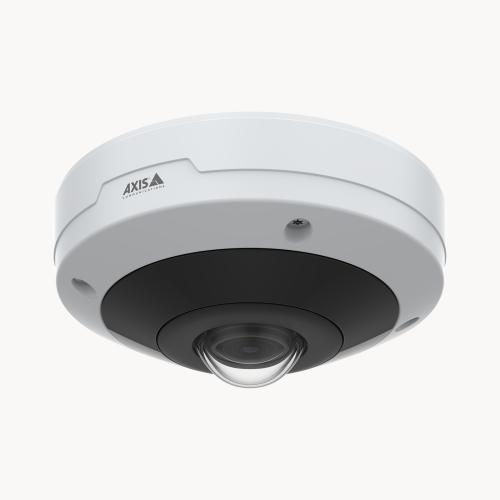

AXIS M4317-PLVE 全景网络6MP摄像机360度
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS M4317-PLVE AR, AU, BR, CN, EU, JP, KR, UK, US
02510-001
AXIS M4317-PLVE IN
02510-113
Technical specifications
Models: AXIS M4317-PLVE
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/1.8
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.16 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
Video
Property description Property value
Max video resolution 2160x2160
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 1.1 mm
Horizontal field of view 182 °
Vertical field of view 182 °
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support –
Security
Property description Property value
Signed firmware Yes
Secure boot Yes
General
Property description Property value
Remote focus –
Remote zoom –
Built-in IR Yes
OptimizedIR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66
Sustainability BFR/CFR free, PVC free
Cables & connectors
AXIS Long Range PoE Extender Kit
Robust solution for covering long distances
AXIS T8129 PoE Extender
The smart solution for covering distances
AXIS T8129-E Outdoor PoE Extender
Robust, outdoor-ready solution for covering distances
M12-RJ45 Cable
Resistant to shock and vibration
Edge storage
AXIS Surveillance Card 1 TB
High endurance microSDXC™ card
AXIS Edge storage suveillance card 128 GB from the front
AXIS Surveillance Card 128 GB
High endurance microSDXC™ card
AXIS Surveillance Card 256 GB
High endurance micro SDXC™ card
AXIS Surveillance Card 512 GB
High endurance microSDXC™ card
AXIS Surveillance Card 64 GB
High endurance microSDXC™ card
Housings & cabinets
AXIS T98A16-VE Surveillance Cabinet
Robust cabinet for easy installation of critical system equipment
Requires additional accessory
AXIS T98A17-VE Surveillance Cabinet
Robust cabinet for easy installation of critical system equipment.
AXIS TM3814-E Skin Cover Black
Change the appearance
Media converters
AXIS T8606 Media Converter Switch 24 V DC
Converts Ethernet to fiber 24 V DC
Mounts
AXIS T91A13 Threaded Ceiling Mount
Installation under ceiling tiles
AXIS T91A23 Tile Grid Ceiling Mount
Flexible mount for drop-ceiling tile grids
AXIS T91A33 Lighting Track Mount
Flexible mount for lighting tracks
AXIS T91B47 Pole Mount
For different pole diameters
AXIS T91B51 Ceiling Mount
Ceiling mount with swivel action for low-ceilinged environments
Requires additional accessory
AXIS T91B53 Telescopic Ceiling Mount
For affordable and flexible ceiling installations
Requires additional accessory
AXIS T91B67 Pole Mount
Pole mount for fixed dome cameras
Requires additional accessory
AXIS T91D62 Telescopic Parapet Mount
Parapet installation with telescopic flexibility
Requires additional accessory
AXIS T91E61 Wall Mount
For Axis fixed dome pendant kits
Requires additional accessory
AXIS T94K01D Pendant Kit
Mounting on 1.5″ NPS threaded bracket
AXIS T94R01B Corner Bracket
For outdoor and indoor installations
AXIS T94S01P Conduit Back Box
IP66/IP67 rated outdoor back box with conduit entrance
AXIS T94T02D Pendant Kit
Pendant kit with weather shield
AXIS TM3204 Recessed Mount
Discreet ceiling installation
AXIS TM3206 Recessed Mount
For discreet video and audio surveillance
AXIS TP3101 Pendant Wall Mount
Discreet design for indoor installations
Power
AXIS T8061 Ethernet Surge Protector
Protects outdoor devices from power surges
AXIS T8120 Midspan 15 W 1-port
Power and data to your network device
AXIS TU8001 Ethernet Surge Protector
For use indoors or in an enclosure
Recommended for this product
Switches
AXIS D8004 Unmanaged PoE Switch
Your perfect entry-level PoE switch
AXIS T8504-E Outdoor PoE Switch
Managed, plug-and play outdoor switch
AXIS T8508 PoE+ Network Switch
8 port switch for efficient network management
AXIS T8516 PoE+ Network Switch
16 port switch for efficient network management
AXIS T8524 PoE+ Network Switch
24 port switch for efficient network management
Recommended for this product
Tools & extras
AXIS Safety Wire 3 m
Versatile safety wire
AXIS T8415 Wireless Installation Tool
Simplicity in your hand
