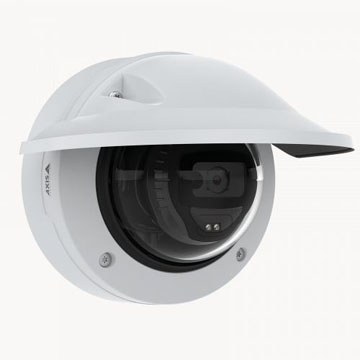

AXIS M3216-LVE 4MP安讯士网络半球摄像机
02372-001
Technical specifications
DATASHEET (PDF)
Models: AXIS M3216-LVE
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/2.7
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.16 lux
Min illumination/ light sensitivity (B/W) 0 lux
Video
Property description Property value
Max video resolution 2688x1512
Max frames per second 25/30
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 2.9 mm
Horizontal field of view 102 °
Vertical field of view 73 °
Pan, Tilt, Zoom
Property description Property value
Remote PTRZ –
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
Built-in microphone –
Network
Property description Property value
PoE Class 3
Security
Property description Property value
Signed firmware Yes
Secure boot Yes
Axis Edge Vault Yes
General
Property description Property value
Remote focus –
Remote zoom –
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66
Designed for repaint Yes
Sustainability BFR/CFR free, PVC free
